Everything Attachments 660 3 Point Tractor Backhoe

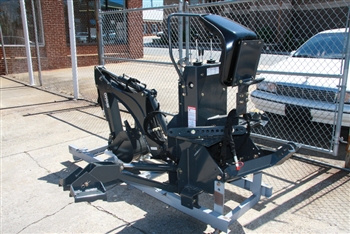

Everything Attachments 660 tractor Backhoe



Alternative Views:


Everything Attachments 660 3 Point Tractor Backhoe with 13" Bucket

The Everything Attachments 660 3 Point Tractor Backhoe mounts to the 3 point hitch of a tractor and gives you great backhoe functionality.

  • Easy 3 point hitch connection
  • Category I or II 3 point hitch
  • 6.5' dig depth
  • Comes with 13" bucket
  • Hoses included
  • Weighs 1032 lbs.
  • Free shipping within 1,000 miles!
Our Price: $5,605.00


Product Code: ETA-BH660

PTO Pump Kit with reservoir, filter, and hoses.

PTO Pump Kit 15 GPM:
None
PTO Pump Kit [Add $800.00]


Description

The Everything Attachments 660 Backhoe for compact tractors with 15-35 HP 6.5' dig depth. Free shipping within 1,000 miles!
Technical Specifications:

Specifications

BH660

BH760

BH860

Digging Dept

6'6"

7'6"

8'9"

Reach From Center Line Of Swing Pivot

8'6"

9'4"

11'3"

Loading Height (Bucket @ 60 degrees)

5'11"

6'7"

8'2"

Maximum Leveling Angle

8 Degrees

8 Degrees

8 Degrees

Swing Arc

180 Degrees

180 Degrees

180 Degrees

Transport Height (Maximum)

5'6"

6'3"

7'6"

Transport Overhang

3'8"

4'1"

4'10"

Bucket Rotation

180 Degrees

180 Degrees

180 Degrees

Stabilizer Spread (Down Position)

7'2"

7'2"

7'2"

Stabilizer Spread (Up Position)

4'8"

4'8"

4'8"

Angle Of Departure

15 Degrees

20 Degrees

25 Degrees

Undercut

1'8"

3'0"

3'1"

Bucket Cylinder Digging Force

2,920 lbs

3,080 lbs

3,670 lbs

Dipper Stick Cylinder Digging Force

1,850 lbs

2,160 lbs

2,310 lbs

Shipping Weight (Including Bucket)

1,100 lbs

1,300 lbs

1,600 lbs

Hydraulic Pressure Requirements

2,350 psi

2,350 psi

2,350 psi

Recommended Tractor HP

15/30 HP

25/45 HP

45/65 HP
