Everything Attachments 860 3 Point Tractor Backhoe

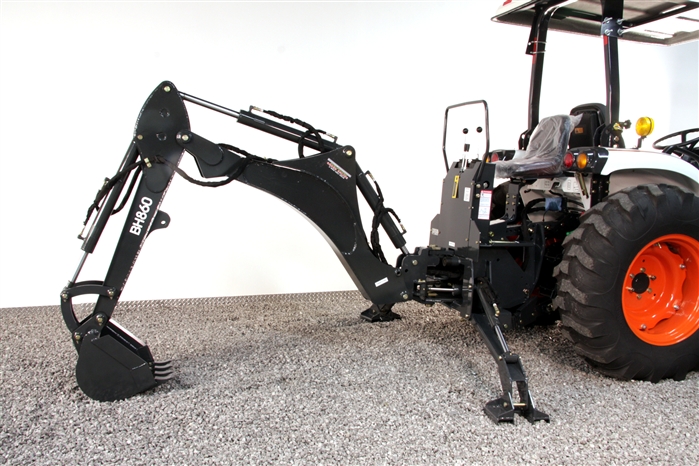

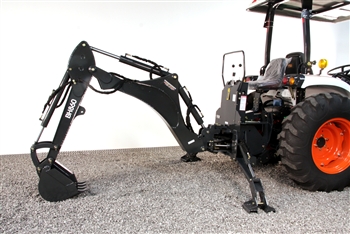

Everything Attachments 860 3 Point Tractor Backhoe designed for compact tractors



Alternative Views:


Everything Attachments 860 3 Point Tractor Backhoe

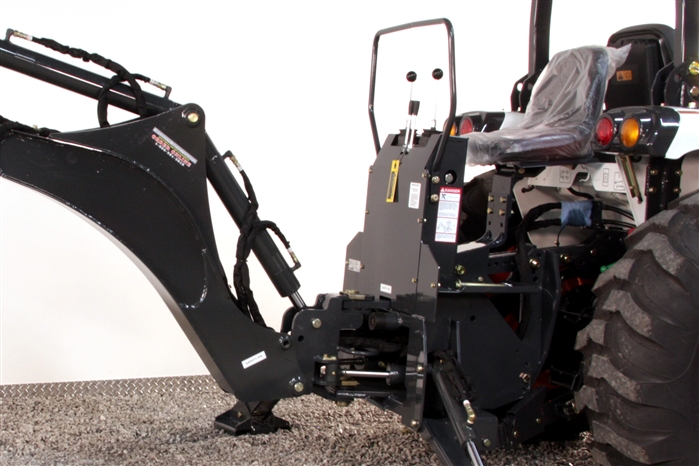

The Everything Attachments 860 3 Point Tractor Backhoe mounts to the Tractor 3 point hitch, and gives you great backhoe functionality.

This backhoe comes with either a 13" or 16" bucket, please specify in the comments which bucket you want when placing your order.
Our Price: $7,021.00


Product Code: ETA-BH860

PTO Pump Kit with reservoir, filter, and hoses.

PTO Pump Kit 15 GPM:
PTO Pump Kit [Add $800.00]


Description Video Transcription

The Everything Attachments 860 Backhoe for tractors with 45-65 HP 8' 9" dig depth. Free shipping within 1,000 miles!
Ansung BH860 Backhoe
Technical Specifications:

Specifications

BH660

BH760

BH860

Digging Dept

6'6"

7'6"

8'9"

Reach From Center Line Of Swing Pivot

8'6"

9'4"

11'3"

Loading Height (Bucket @ 60 degrees)

5'11"

6'7"

8'2"

Maximum Leveling Angle

8 Degrees

8 Degrees

8 Degrees

Swing Arc

180 Degrees

180 Degrees

180 Degrees

Transport Height (Maximum)

5'6"

6'3"

7'6"

Transport Overhang

3'8"

4'1"

4'10"

Bucket Rotation

180 Degrees

180 Degrees

180 Degrees

Stabilizer Spread (Down Position)

7'2"

7'2"

7'2"

Stabilizer Spread (Up Position)

4'8"

4'8"

4'8"

Angle Of Departure

15 Degrees

20 Degrees

25 Degrees

Undercut

1'8"

3'0"

3'1"

Bucket Cylinder Digging Force

2,920 lbs

3,080 lbs

3,670 lbs

Dipper Stick Cylinder Digging Force

1,850 lbs

2,160 lbs

2,310 lbs

Shipping Weight (Including Bucket)

1,100 lbs

1,300 lbs

1,600 lbs

Hydraulic Pressure Requirements

2,350 psi

2,350 psi

2,350 psi

Recommended Tractor HP

15/30 HP

25/45 HP

45/65 HP


Average Customer Review: 5 of 5 Total Reviews: 2 Write a review.

  0 of 0 people found the following review helpful:

Great service December 13, 2015
Reviewer: Keith Schubert from Burnet, TX United States
This guys are great to work with. They provide quality advice with knowledge to back it up. They are responsive to your questions and they have great customer service. I bought a 860 ansung backhoe and it operates great, very powerful unit. The only thing I recommend on a three point backhoe is use a chain binder to bind it from the top link to the drawbar, this make it more stable and is easer on the three point hitch. I recommend these guys for your attachment needs.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Ansung BH860 backhoe attachment February 18, 2015
Reviewer: Sal Calabro from Rattan, OK United States
I am totally pleased with the information, advice and support that I received   before my purchase  The backhoe arrived at my ranch and on a metal pallet.  I easily unloaded it with the fork on my tractor.  I found it to be extremely well built.  Within 2 hours I was burying a tin horn.  I would highly recommend this product and Everything Attachments, whose price was the lowest I was able to find on the internet.

Sal Calabro MD
