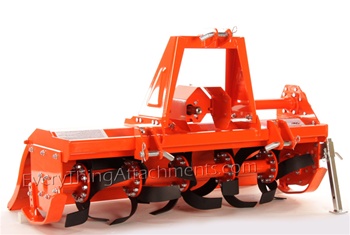

Phoenix T4 Series Value Model 48 Tractor Rotary Tiller
Phoenix T4 Series Value Model 48" 3 point hitch, Tractor PTO Driven Economy Rotary Tiller from Sigma
Phoenix T4 Series Economy 48" Rotary Tiller from Sicma



Alternative Views:


Phoenix T-4 Series, 48" Tiller

Our Value Series of Tillers, the economy priced Phoenix T-4 Series (built by Sicma in Italy, the industry's best) is standard equipped with a slip-clutch instead of shear-bolt to keep you tilling not repairing. Chain drive, 6 tines per flange instead of 4 like the competitors, giving you maximum wear life. Many Tractor Manufacturers buy and brand these tillers as OEM charging you for their name.


  • 6 Tines Per Flange
  • Adjustable Skids
  • Heavy Duty Castings and Bearings with Double Lip Seals.
  • Powder Coat Paint Finish Available in Red Or Orange
  • Heavy Duty Adjustable Drag Board With Zinc Plated Check Chain
  • Standard Eurocardan Series 4 PTO Shaft With Slip Clutch
  • Free shipping within 1,000 miles! AVAILABLE

360 Degree View Click Here for 360 Degree View

Our Price: $2,475.00


Product Code: PH-TILLER-ROTARY-T4-48K

Description Extended Information

Value Model T4 Series Phoenix Economy Rotary Tiller, 48" width (Built by Sicma in Italy, the Industry's Best) Free shipping within 1,000 miles! AVAILABLE
More

Phoenix T4 Series Rotary Tillers are well suited for hobby farmers, fruit and vegetable growers, landscapers nurseries, vineyards, and grounds maintenance operations. Applications include: soil conditioning and weed control, fertilizer incorporation, and seed bed preparation. Available in 48" working width for up to 30 PTO horsepower.

The Phoenix T4 family of rotary tillers are perfect for the independent week end gardener or horticultural enthusiast that likes to do things for themselves. No worries about these tillers, they are built for dependable trouble free performance year after year.


Specifications T4-40 T4-48 T4-59
Working Width (Inches) 40 48 59
Working Depth (Inches) 7 7 7
Blades Per Flange 6 6 6
Scroll Diameter (Inches) 15.7 15.7 15.7
Total Blades 24 30 36
Rotor Flange Thickness 3/8 3/8 3/8
Rotor Speed (RPM) 250 250 250
Drive Chain #60 #60 #60
Driveline Protection Slip Clutch Slip Clutch Slip Clutch
Hitch Cat I Cat I Cat I
PTO Shaft Series 4 4 4
PTO Power Required (HP) 15-30 15-30 15-30
Optimum PTO Speed (RPM) 540 540 540
Approximate Weight (LBS) 308 335 360

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 12 Write a review.

  0 of 0 people found the following review helpful:

4 of 5 Works good October 13, 2021
Reviewer: Tim Glaser from Lexington, NC United States
Had a hard time picking up at the tiller. The guy loading it was great but finding the loading dock was poor as there was no signage so I ended up doing a lap around the building until I stopped and asked some guy walking along. One of the lift pins was the wrong size so I had to go out and buy one. The tiller worked great even after getting jammed up by a piece of buried metal rod that was in the ground.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Fantastic build quality! Fast, free shipping! February 23, 2021
Reviewer: Wayne Richards from Center Ossipee, NH United States
Sigma T4 48" arrived at my local Fedex Freight terminal, trucked 1,000 miles, only three business days after I placed my order! That's fast!  Overbuilt of very heavy steel throughout. Neat, deep, full length aircraft quality welds. Heavy chain case is secured by 13 bolts, enclosing oil visible through view glass. Five thick flanges each support six (!) massive spring steel C-tines. Heavy hinged tailgate. Wide skids are adjustable for depth. Massive wrap-around links mounted on tubular steel adjustable for span and offset. Automotive quality Kubota orange paint finish. Quality engineering and workmanship throughout.
I nearly purchased a Land Pride at my local dealer for nearly $1,000 more, which is less than half the machine of this magnificent Sigma. I couldn't be happier with Everything Attachments and their superior products, and will certainly purchase from them the next time.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Great Small Tractor Tiller January 6, 2021
Reviewer: Christopher from Morganton, GA United States
I am very pleased with the Phoenix T4 48" tiller.  The build and finish quality are excellent and the drive train is a lot quieter than I expected.  It does a great job tilling to full depth in two passes with my Kubota BX1800 tractor.  Plus I like the adjustable hitch points that allow precise alignment on my quick hitch. I would definitely recommend this to anyone with my size tractor.

Was this review helpful to you?

  0 of 1 people found the following review helpful:

5 of 5 January 31, 2020
Reviewer: Andrew DeCavia from GEORGETOWN, CA United States


Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Phoenix T4 48in tractor tiller June 7, 2017
Reviewer: Jim Vass from Churchville, VA United States
Just used it on my garden and neighbors garden with my Kubota bx2370.  Very impressed with the results.   Very impressed with the quality of this tiller.  Well made piece of equipment. Would recommend to anyone.  Ordered it on a Monday and picked up locally on Wednesday.  Glad I found you guys on internet.  Could not be more satisfied !!

Was this review helpful to you?

View All Customer Reviews
