EA Wicked Rock Bucket for Compact Tractors | Rock Sifting & Skeleton Bucket

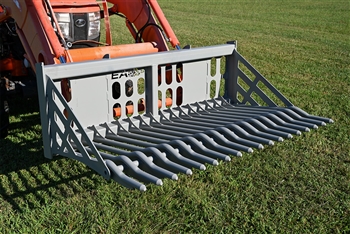

Wicked Rock Bucket Compact Tractor

Alternative Views:

EA Wicked Rock Bucket for Compact Tractors | Rock Sifting & Skeleton Bucket

The Rock Bucket That Doesn't Pinch Rocks Between Flat Tines

The wait is over! The most high end rock bucket on the market for compact tractors is finally here, it features a high capacity, ultra light weight design that's never been made before. The biggest problem with every other rock bucket on the market for compact tractors is that they are designed around a flat tine design. Flat tines create a pinch point along the full length and depth of the tine, giving rocks more opportunities to wedge between them and get stuck. Our round DOM design reduces that contact area to a much smaller single pinch point, allowing the right sized rocks and debris to sift through instead of becoming tightly wedged in the bucket. Why did we use DOM instead of solid bar? The skid steer market has already used the round bar design but never DOM. For compact tractors you need every bit of your lift capacity to maximize the amount of stone that can be carried. Our DOM tubing provides exceptional strength without the weight penalty. Our Wicked Rock Bucket features an impressive 36 inch bucket depth, giving you more capacity and working area than other models. For example our 60" Model with 2" tine spacing only weighs approximately 380lbs! The open ends of the DOM are finished with our own custom press-in replaceable tips, giving the tine a clean serviceable design built for years of use. All the see through protective guarding and the gussets bracing up the DOM tubing are Hardox 500 Material what will out last in the most abrasive conditions. Available in multiple widths 48-72" and your typical 2"/3" tine spacing. Bolt on a optional top guard for even more protection when flicking rocks, you don't want them to hit you or your machine. Custom tine spacing may also be available for your exact sifting job at hand!

  • 1.25" Outside Diameter .8125" Inside Diameter DOM Tubing
  • 3/16 Hardox 500 Bracing for the DOM Tubing Top and Bottom
  • 1/8th Hardox 500 Guard and Frame Support
  • High Capacity 36" Depth 23" Height Approximately
  • 2" Tine Spacing and 3" Tine Spacing are Standard - Custom spacing is available upon request
  • Replaceable Press Fitted Tapered Points
  • Optional Bolt On Guard for Protection From Debris 36" Height in Total
  • DOM tubing protrudes through the main bottom tube welded on both sides
  • Quick Attach Backing Plate has 15 Degrees built into it for further tilt back
  • Available Skid Steer Quick Attach, John Deere, Mini Skid Steer Quick Attach and some Pin On Configurations
  • Perfect for all Compact Tractor Brands, Kubota, John Deere, Mahindra, Massey, Kioti, New Holland, TYM and many more!
  • Free shipping within 750 miles of Conover, NC
Our Price: $2,245.00

Price with Selected Options: $2,245.00
Photos: fab


Product Code: ROCK-CMP

What Hitch Do You Have?


Rock Bucket Width


Rock Bucket Tine Spacing

2" Tine Spacing
3" Tine Spacing [Subtract -$100.00]
Custom Tine Spacing - Must be more than 2" [Add $100.00]
Protection Guard




Description Technical Specs


Light Weight, High Capacity Round DOM Tube Rock Bucket for Compact Tractors


Available in multiple widths and custom spaced tines
