EA Xtreme Duty Deluxe Box Frame Disc Harrow
XTreme Duty Deluxe Box Frame Disc Harrow

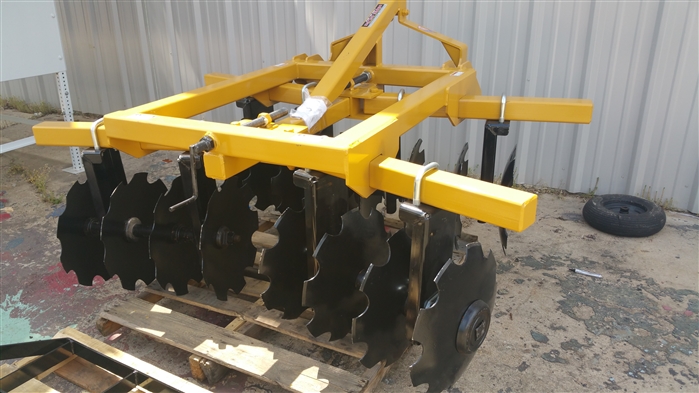

Everything Attachments XTreme Duty Deluxe Box Frame Disc Harrow



Alternative Views:


Everything Attachments XTreme Duty Deluxe Box Frame Disc Harrow

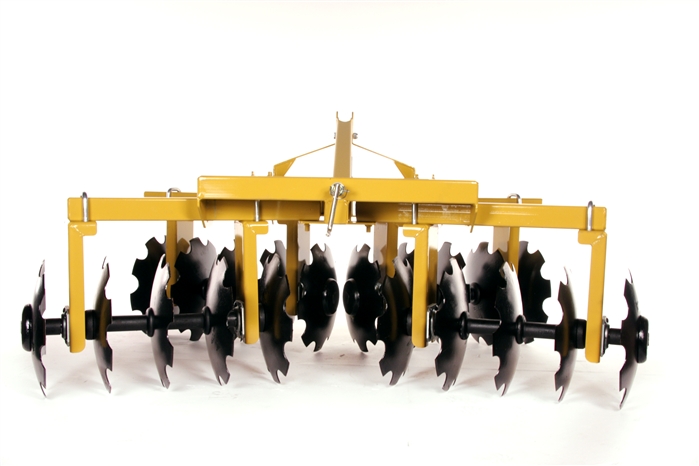

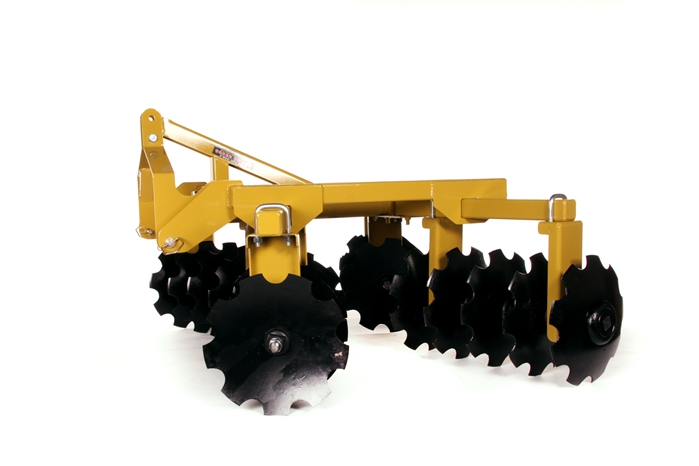

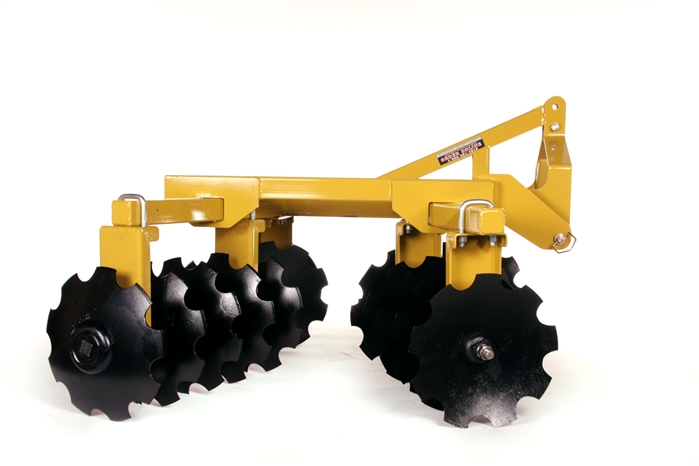

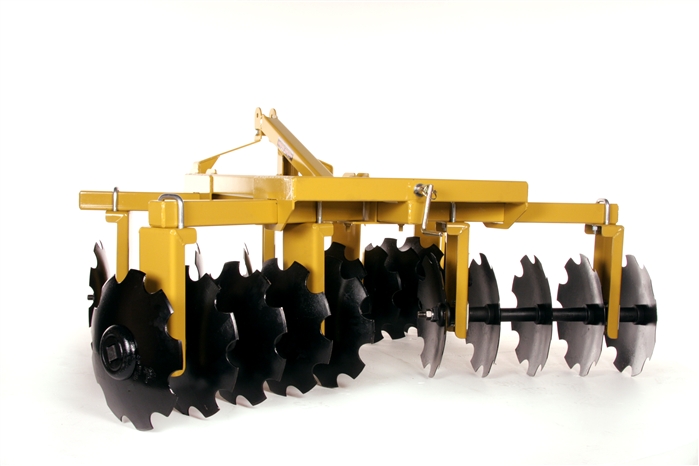

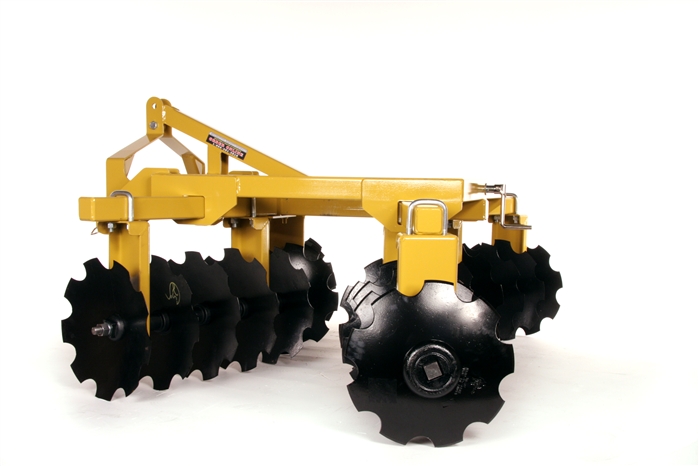

The Everything Attachments Deluxe Box Frame Disc Harrow features all of the best hardware from custom bearing hangers, roller bearings, and two crank adjustments, to easily set the angle of the front and rear gangs to your preference. This model disc harrow can be ordered with 16 or 20 discs, measuring in 16", 18", and 20" diameters.


Since November 1st, 2015, this model of Box Frame Disc Harrow has 1-1/8" axles, spacers, and bearings instead of 1 inch as used on the angle iron disc harrow. If desired, on the 16 x 16 for a light weight tractor we will deduct $150.00 for 1 inch axles to save weight for smaller tractors.
"1-1/8" hardware weighs over twice as much as 1" hardware"

***VERTICAL HANGERS WILL ALL BE PAINTED BLACK 2/21/18***
  • Proudly Made in the USA!
  • Premium A572 Grade 50 Laser Cut Steel Construction.
  • Strong, maintenance free roller bearings on all discs.
  • 1-1/8" axle shaft, spacers, and bearings.
  • Tubing is 3" x 3" steel that is 3/16" thick.
  • Hitch and end plates are 5'16" thick steel.
  • Category 1, clevis type hitch.
  • Quick Attach Compatible.
  • Everything Attachments Product Warranty
  • Free shipping within 1,000 miles!

Current SALE Price is to compensate 4+ week lead times!

(Discount is ONLY for items with lead times of 4 weeks or longer.)




American Made Attachment


MODEL Cutting Width No. of Blades Blade Diameter Weight
ETA-XD-BF-DH-16-16 68" 16 16" 665 lbs.
ETA-XD-BF-DH-16-18 68" 16 18" 686 lbs.
ETA-XD-BF-DH-16-20 68" 16 20" 751 lbs.
ETA-XD-BF-DH-20-16 82" 20 16" 749 lbs.
ETA-XD-BF-DH-20-18
82" 20 18" 779 lbs.
ETA-XD-BF-DH-20-20
82" 20 20" 810 lbs.


Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow
Item# Item Name Our Price Sale Price Qty Add
ETA-XD-BF-DH-16-16-N Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 16 16 Notched Discs
$1,852.00
$ 1,748.00
ETA-XD-BF-DH-16-16-N-1IN Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 16 16 Notched Discs With 1" Axles
$1,693.00
$ 1,598.00
ETA-XD-BF-DH-16-18-N Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 16 18 Notched Discs
$1,923.00
$ 1,815.00
ETA-XD-BF-DH-16-20-N Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 16 20 Notched Discs
$2,012.00
$ 1,899.00
ETA-XD-BF-DH-20-16-N Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 20 16 Notched Discs
$2,080.00
$ 1,963.00
ETA-XD-BF-DH-20-18-N Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 20 18 Notched Discs
$2,126.00
$ 2,006.00
ETA-XD-BF-DH-20-20-N Everything Attachments Xtreme Duty Deluxe Box Frame Disc Harrow with 20 20 Notched Discs
$2,307.00
$ 2,177.00
Check the items you wish to purchase, then click


Video Transcription:

Hi, I'm Ted from Everything Attachments and we're today with our small deluxe xtreme duty Everything Attachments disc harrow. This is a category one hitch. Even though it's a fairly small disc harrow we build all of the deluxe features in it that our bigger disc harrows have. We also have angle-iron framed disc harrows for the really small tractors. This can come with 16 discs, which would be four on each gang of four, or twenty discs, which is five. Right now we have 18 inch discs on them. We could put 16 inches on it, and we'll offer that for sale. Most of them we think will be sold with 18s. We're also going to offer them with 20 inch heights diameter discs.

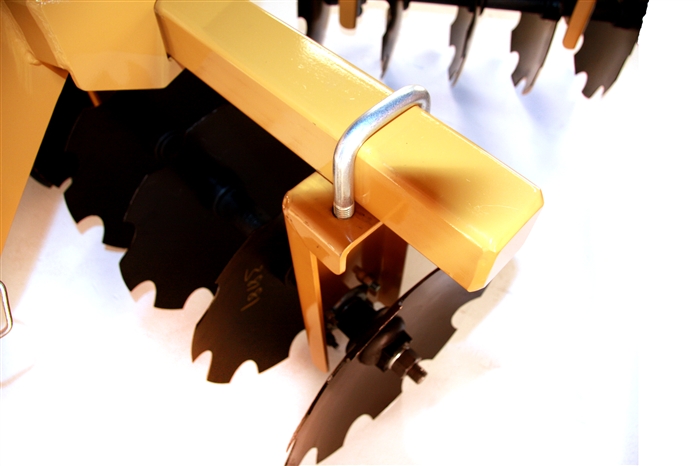

On this small model, which is the small deluxe frame, it has one 3/4 inch U-bolt on each hanger and if you'll notice [inaudible: 00:01:16] that's formed and built, there are all sealed ball bearing discs. This is quick attach ready. We've even put the bushing in here for you bolted in.

We've spaced this out and lowered it for the mid-size compact tractors to keep the blades out of the tires, just to make it a better safer, a better working design. Most of the discs like this I've seen the pins are up so high that the midsize tractors they barely pick them up and when they try to go through the field or whatever they're dragging them, so we've lowered the hitch quite a bit so you'll be able to pick it up completely and there will be no problems setting it down of course.

Now for a smaller disc, they could be as small as 16 discs. We've added these cranks where you can simply adjust your angle instead of really struggling trying to get the pin out of this main frame here. Turn this to the side Peanut.

So a couple of things we've done; what's normally done, there are two main types of discs. It's either an angle iron disc or it's a tube frame disc, or a box frame. And most people just cut the box, put two flaps on it, run the outer tubes through there and what we've done is everything to do with the frame or carriage that holds the gangs we've put below the main frame. So the main frame is solid; it's a rectangle, it's all welded. We've made these areas here drop down where we can make them, because if you run a flat piece across the top, then the opening has to be, because this is changing angles and it's three inches wide. You have to leave the opening really wide so it can get to its full 21 degrees.

When you do it through a thin piece of metal and make a really tight fit, then it doesn't have the tendency where you can make it really tight here, make it really tight here, and it doesn't what you call pigeon toe. Because once a disc starts twisting and starts pigeon toeing, then it's pretty much finished and you're going to need to do some major repairs.

So we've come up with what we think is the best design to build to hook to your tractor, is the easiest to adjust, and just the best all around. We're using as high quality components as we can get. We're making everything that's yellow, especially the hangers. We've got a really neat design. Everything is made in house, and everything attachments.

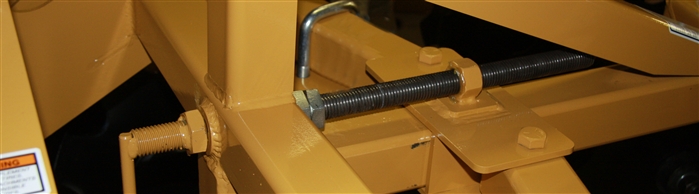

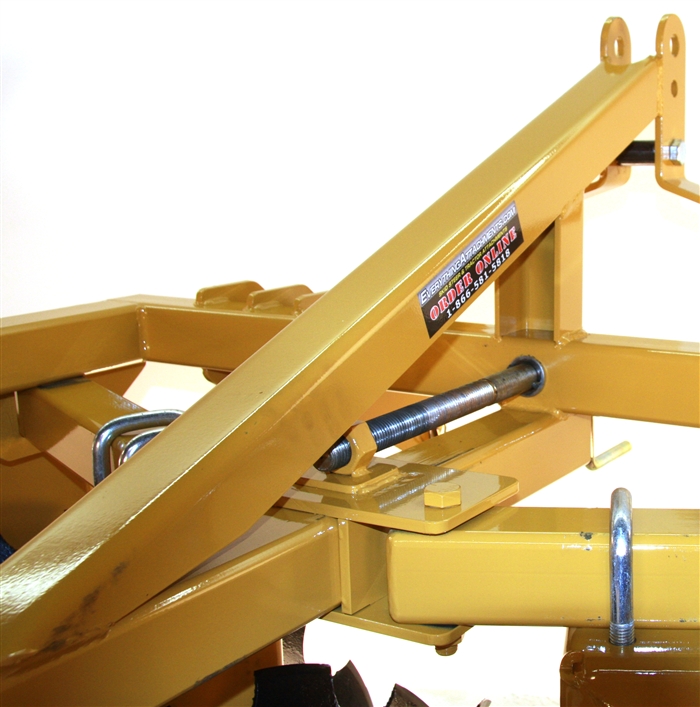

The way this adjusts, and I wish you could see it better. We'll take a picture and put in into the video. But basically it has a screw jack here on top of the trunnion where it hooks to both. Now if you've ever gotten a disc and you've had to have a hammer to beat it back and forth, we've got this all spaced with our laser where everything--nothing is tight onto the main three by three tube there. You're not going to have to have a wrench to loosen it up, so you can tighten it. You're 'not going to need a hammer and a chisel to adjust your angle; you simply crank what angle you want to into it. So you can do from zero degrees to twenty-one degrees simply by turning the crank on each end. Bring it around to the back and we'll show them the back.

She may even get a better idea from the back of how we've formed these pieces; that's what's made that width there--3/4 inch u-bolts making it strong. Our heavier disc, which goes up to 24 gangs and up to 22 inch discs, it does have double u-bolts. They both have the cranks on them here where you can adjust your angle. And just everything about this is precision made; it's all cut on a laser and this is the way we're going to be making them in the future. We're just now getting these on our website. We've got four different models built and designed. We're getting ready to go to the Moultrie Show this week in Georgia. And then we'll be back to get back to work.

But this is the best disc harrow on the market for this size. It comes in about 50 plus different combinations, because we do also have the round smooth disc or the notched disc, 16, 18, or 20-inches. Then if you want 16 of them or you want 20 of them, you can pretty much get this your way. We're going to have them all priced and there are going to be a lot of different options, but you're going to get what you want.





Average Customer Review: 5 of 5 Total Reviews: 18 Write a review.

  0 of 0 people found the following review helpful:

May 21, 2018
Reviewer: John Alexander from Clarkson, NY United States
When you buy EA your not only buying American made equipment... you are buying a family heirloom. The quality in materials and workmanship is something that will last generations. I went back and forth making my decision between the cheaper tractor supply brand and the angle iron vrs. box frame models. I’m glad I spent the money upfront and bought the heavier box frame design. When it comes to disc harrows it is all about the weight and duribilty. I have read the horror stories of guys loading up the angle frame models with blocks and breaking welds trying to achieve the weight needed to do what this beast does straight from the factory.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

16 Blade Disc Harrow March 18, 2018
Reviewer: Wayne Deshotel from Hessmer, LA United States
This is a updated 3-yr review, using this Harrow has been great, the only issue is that all my friends and family want to use it.  I have had no issues with it after 3 years of use.  The only suggestion I have, would be to have disc scrapers available as an accessory.  Down here in Louisiana we have alot of clay soil and when wet it will ball up between the blades and stick when chopping.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Disk harrow purchase March 10, 2018
Reviewer: Rob Morris from Hollister, ID United States
Good advice, the only reason your aren't 5 stars is unfamiliarity with western US soils: a little bit hard to do when you are located in North Carolina!

Was this review helpful to you?

  1 of 1 people found the following review helpful:

great disc October 14, 2017
Reviewer: stan rowell from Eagleville, TN United States
Ive used the disc to make four food plots for deer. I adjusted the 20 inch disc angle straight and tried it out on my yard and it made a good lawn aerator.
The paint is very good quality and not easily chipped.
The paint on the disc also is very hard with only the tips of the disc showing bare metal but still not rusting.
Really heavy duty,well thought out.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

XTreme Duty Deluxe Box Frame Disc Harrow March 8, 2017
Reviewer: Jim Saxon from Greenville, SC United States
I have used it twice so far plowing a new dove field and couldn't be happier with the results.
