W R Long Root Rake Brush Grapple

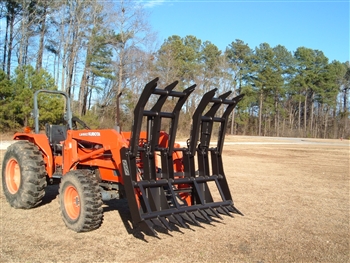

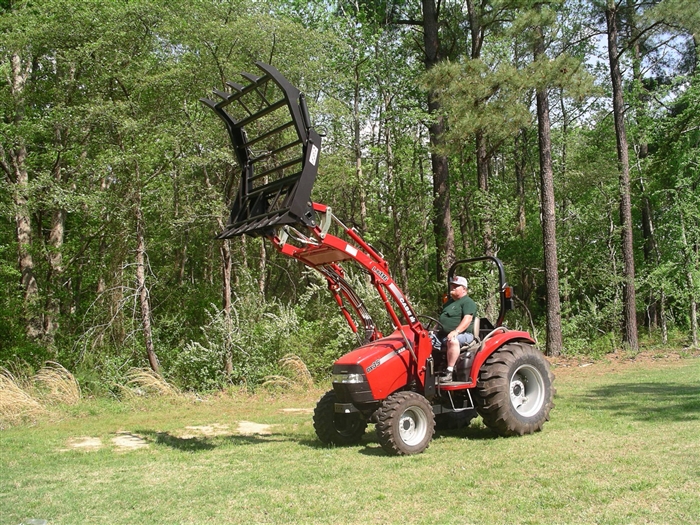

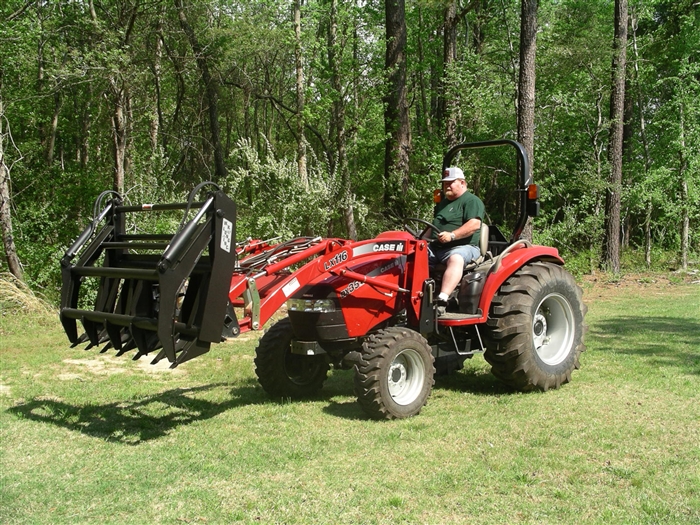

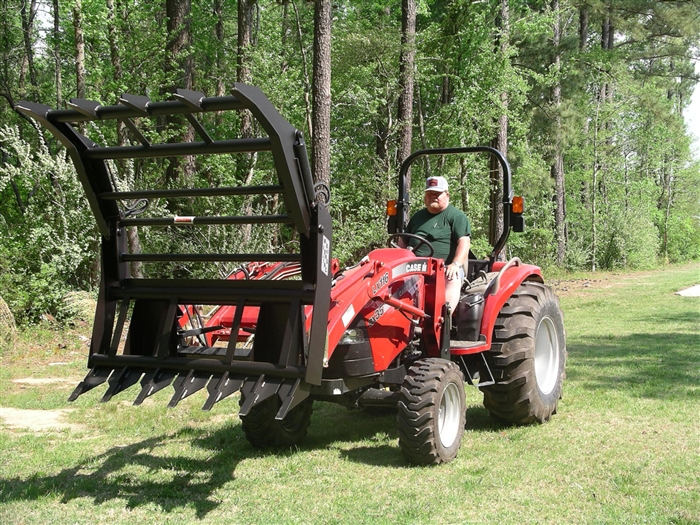

W R Long Root Rake Brush Grapple for compact tractors up to full size
W R Long Root Rake Brush Grapple

Alternative Views:

W R Long Root Rake Brush Grapple

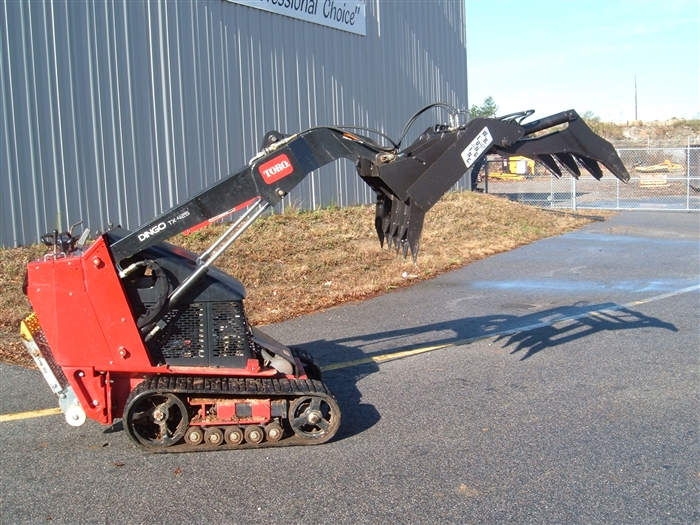

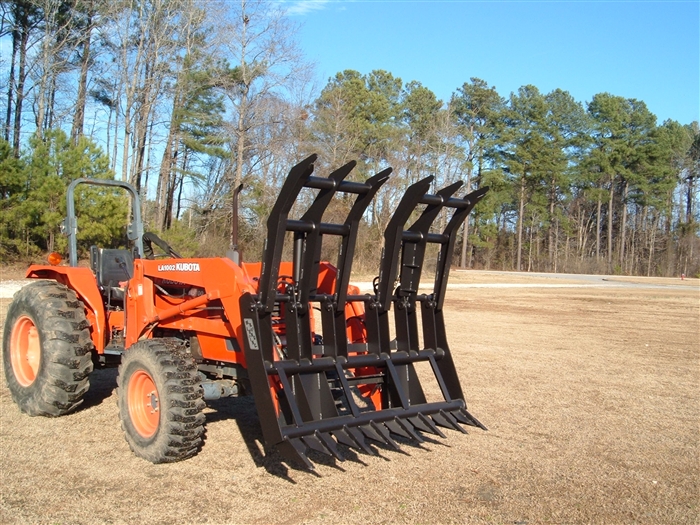

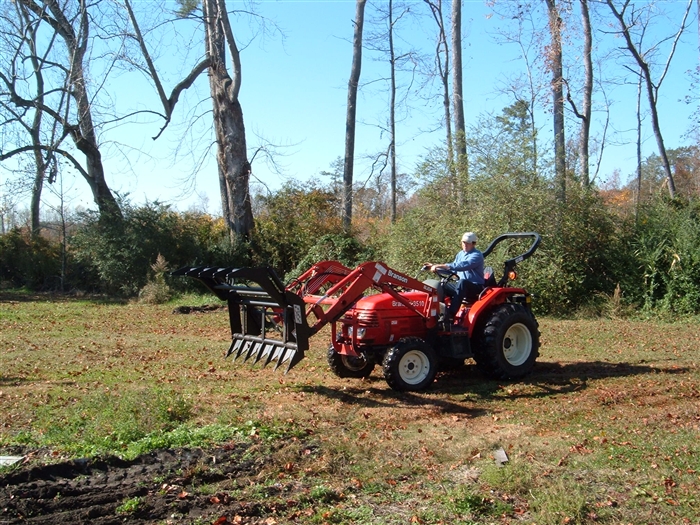

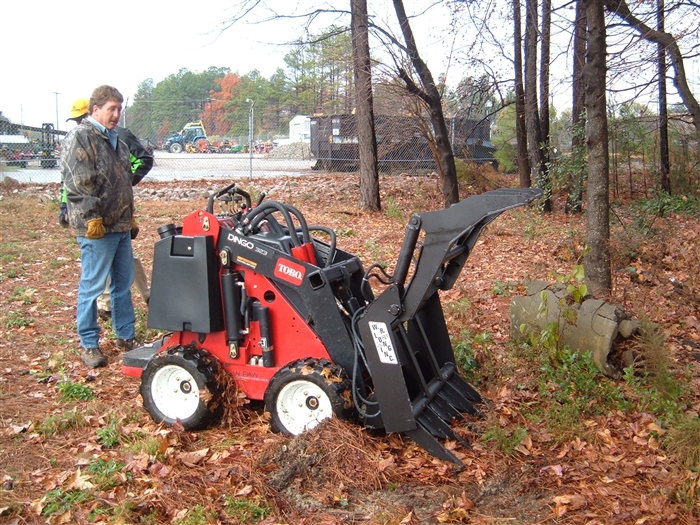

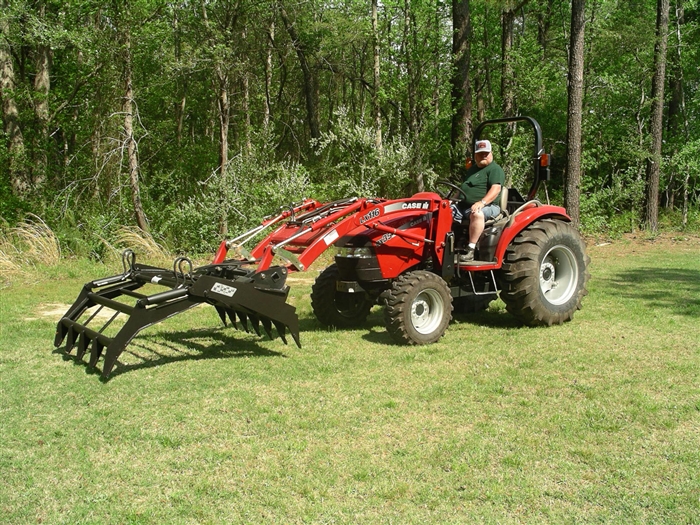

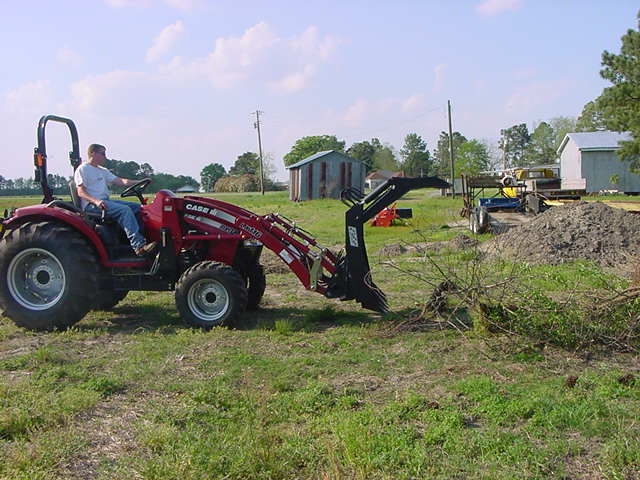

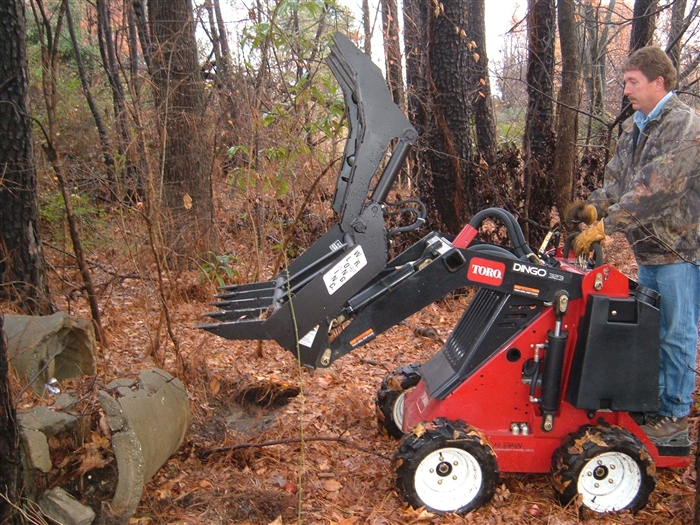

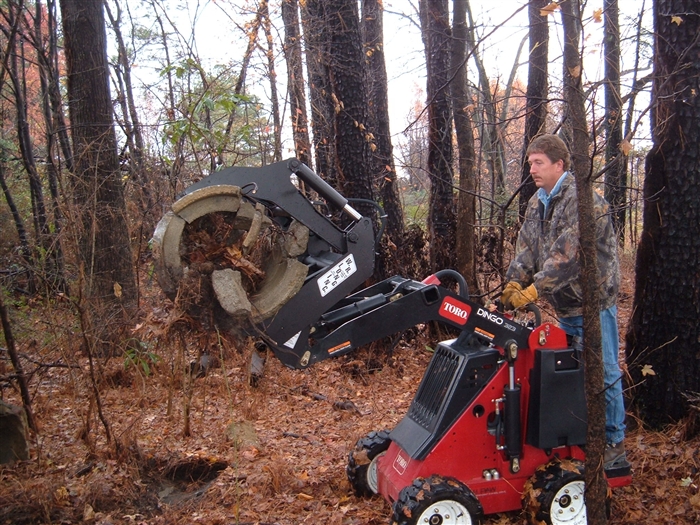

The Root Rake Brush Grapple "RBG" is for Farm, Light Industrial, and Skid Loaders with lift capacities from 1,300 up to 4,000 pounds and comes in widths from 60 inches to 78 inches. Ideal for Roots, Brush and debris. The Root Rake Brush Grapple 2 "RBG-2" is for Compact and Sub Compact Tractors and Mini Skid Steers with lift capacities from 450 up to 1,300 pounds. The Root Rake Brush Grapple is now available with dual grapples.

  • RGB-3: For sub-compact tractors up to 40 HP, uses single clamp with dual cylinders.
  • RBG-2: For compact tractors 35-60 HP, uses single clamp with dual cylinders.
  • RBG: For machines up to 100 HP, with lift capacity from 2,200 to 4,400 lbs. Uses single clamp with dual cylinders.

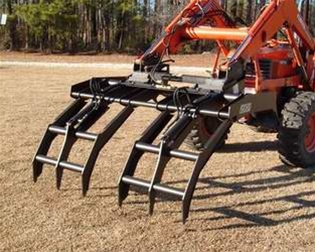

  • RBGD: For machines up to 100 HP, with lift capacity from 2,200 to 4,500lbs. Uses dual clamps with single cylinders.
  • Includes hoses and 1/2" AG couplers, for FF couplers add $95
  • DOES NOT INCLUDE SHIPPING, Call for shipping quote.


W R Long Root Rake Brush Grapple for Compact up to Full size Tractors and Skid Steers, single and dual lid models.

Item# Item Name Our Price Qty Add
WRL-RBG3-48 W.R. Long Root Rake Brush Grapple 54
$2,470.00
WRL-RBG3-56 W.R. Long Root Rake Brush Grapple3 56
$2,575.00
WRL-RBG2-54 W.R. Long Root Rake Brush Grapple 54
$2,965.00
WRL-RBG2-66 W.R. Long Root Rake Brush Grapple 66
$3,140.00
WRL-RBG2-60 W.R. Long Root Rake Brush Grapple 60
$3,050.00
WRL-RBG-60 W.R. Long Root Rake Brush Grapple 60
$3,560.00
WRL-RBG-66 W.R. Long Root Rake Brush Grapple 66
$3,775.00
WRL-RBG-72 W.R. Long Root Rake Brush Grapple 72
$3,985.00
WRL-RBG-78 W.R. Long Root Rake Brush Grapple 78
$4,435.00
WRL-RBG-84 W.R. Long Root Rake Brush Grapple 84
$4,665.00
WRL-RBGD-60 W.R. Long Root Rake Brush Dual Grapple 60
$4,170.00
WRL-RBGD-66 W.R. Long Root Rake Brush Dual Grapple 66
$4,350.00
WRL-RBGD-72 W.R. Long Root Rake Brush Dual Grapple 72
$4,520.00
WRL-RBGD-78 W.R. Long Root Rake Brush Dual Grapple 78
$4,945.00
WRL-RBGD-84 W.R. Long Root Rake Brush Dual Grapple 84
$5,135.00
Check the items you wish to purchase, then click


Technical Specs:
Width in Inches Number of Tines Weight in Pounds
RBG3 - 48 7 213
RBG3 - 56 8 238
RBG2 - 54 6 360
RBG2 - 60 7 390
RBG - 60 7 567
RBGD - 60 7 668
RBG - 66 7 630
RBGD - 66 7 730
RBG - 72 8 665
RBGD - 72 8 760
RBG - 78 8 715
RBGD - 78 8 815
RBG - 84 9 755
RBGD - 84 9 855



Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 4 Write a review.

  0 of 0 people found the following review helpful:

2 of 5 Unimpressed Hydraulic Connections Tuesday, September 6, 2022
Reviewer: Michael R from Honey Grove, TX United States
The implement arrived at noon.

The hydraulic connections are crap.

I used it to move 2 bundles of tree cuttings to brush pile - 300 feet - and had to tighten the hydraulic fittings 6 times!!!

The placement of fittings is stupid - with each hose being on stacked side-by-side too close to allow wrenches to get to the fitting nuts to tighten - the fittings should have been offset - or better yet a pair of 90 degree swivel fittings for anticipated movement - in the present configuration each movement of the frontend loader's tilt and curl causes the fittings to loosen -  and to further indicate the faulty nature of the installation there was no hydraulic thread sealant on threads - crap!!  Unimpressed!
WR LONG RESPONSE:  Dear Michael, We are sorry that our product did not meet your expectations. It’s our desire to make sure each and every customer is satisfied with their purchase. We use industry standard hydraulic components and installation practices which should not leak when tightened properly. These should have been tight when they left our facility without the use of thread sealant. Our apologies on them not being tight enough. You should be able to easily loosen the hose clamps in order to better access the swivel fittings to tighten them down. If the hoses are too short and causing tension on the JIC fittings, then we would be happy to provide longer hoses to resolve your issue. Please feel free to reach out to us at 252-823-4570 and give us the opportunity to make it right.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

4 of 5 Root Grapple Monday, May 2, 2022
Reviewer: John Evankovich from Battle Creek, MI United States
Excellent piece of equipment. Very sturdy and a must for any property owner. The only reason I gave it 4 stars is because I believe everything can be improved.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Brush Grapple Tuesday, November 2, 2021
Reviewer: Michael Mcculloch from Midland, TX United States
The unit came in with some of the hydraulic connection loose. After using the rake, it was obvious I made a good investment.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

5 of 5 Owned for 5 years Sunday, April 26, 2015
Reviewer: Matt from Vincent, OH United States
I bought a 60" W.R.Long Rake in 2010 and have removed overgrowth on 10 acres since then using a 35 hp Kubota L3430.  Working just two weeks per year, our property has been transformed from a jungle to a park!  It is great at removing most trees under 9" using the chisel teeth of the grapple to sever the roots, then using the loader to push the tree over.  I have taken down 12" aspens this way, then hauled them to the brush pile, root and all!!!  The problem is I have made so many brush piles that I had to trade in the tractor and grapple for an L5460 and am now shopping for a replacement grapple, and possibly another implement for more selective tree removal like a stump bucket or tree spade.  The only problems I have had with the grapple happen when you catch a big root with a single tooth; putting the full force of the tractor on a tooth caught this way can break the tooth, which I have done twice.  Much better to back out and take another stab at it.
