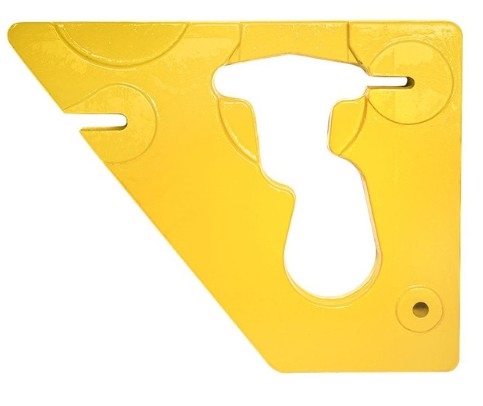

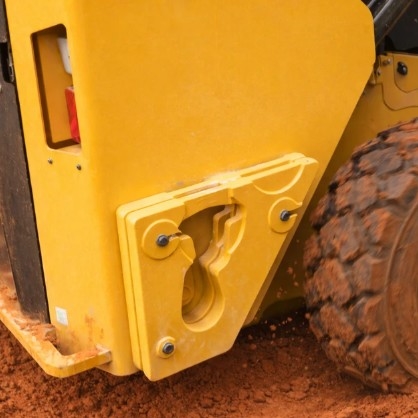

Why buy the expensive OEM Parts when Aftermarket Parts are just as good or better quality along with a cheaper price point! This Counterweight plate fits many different Caterpillar Skid steer models check the list below. Avoid tipping forward by mounting these counter weights and get more done with your Caterpillar skid steer shifting the machines center of gravity further back and offsetting heavy front loads. Better traction and enhanced stablity are just the start from the benefits of adding these Counter Weights OEM Caterpiller Part number is 388-7875 (345-5147). These will bolt right up to your machine listed below!
- Weight: 78 Lbs., 2.25”
Thick
- 15.5” Long x 19.5” Wide
- Hardware- (NOT INCLUDED) M12-1.75 x
80MM hex head bolt (6), M12-1.75 x 130MM Hex Head Bolt (6), M12 ID Steel Flat
Washer (6)
- OEM Reference: Caterpillar
P/N 388-7875 (345-5147)
Caterpillar Models:
Skid Steer Loaders: 242D3,
246D3, 246D, 236D, 262D3, 236D3, 242D, 262D, 272D, 272D XHP, 272D2 XHP, 272D3
XE, 272D3, & 272D2
Compact Track Loaders: 259D,
299D, 289D, 279D, 289D3, 259D3, 299D3 XE, 279D3, 299D3, 299D2, 299D XHP, &
299D2 XHP
Multi Terrain Loaders: 257D3,
297D XHP, 257D, 277D, 297D, 287D, 297D2, & 297D2 XHP
