Digga 3DSS Universal Skid Steer 10-30 G.P.M. - SS - Package

Digga 3DSS Universal Skid Steer 10-30 G.P.M. - SS - Package



Alternative Views:

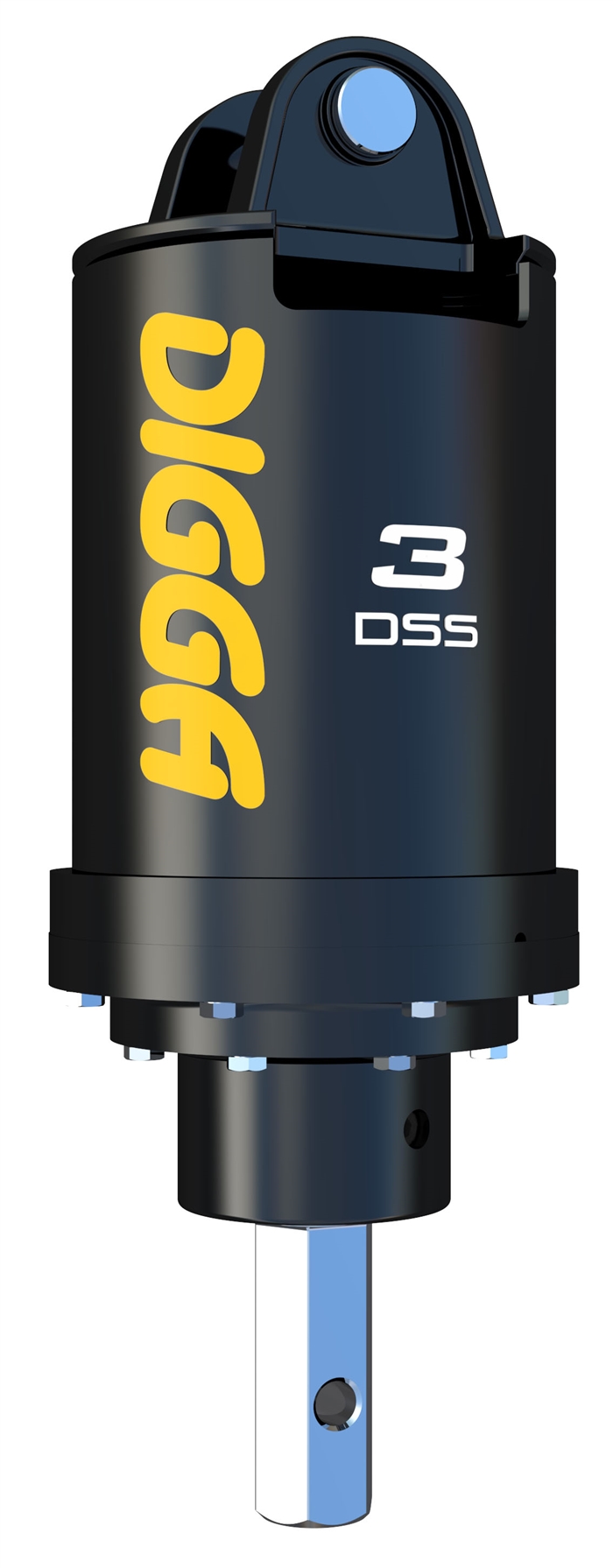

Digga 3DSS Universal Skid Steer Auger Drive Package - Single Speed - 10-30 G.P.M. Standard Flow

Single Speed - Suitable for Heavy Duty Drilling

Digga's drilling drives for agricultural machines are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control. Fitted with Digga / Eaton bell motors and input housing, the innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions, eliminating downtime and minimizes maintenance, optimizing your returns.

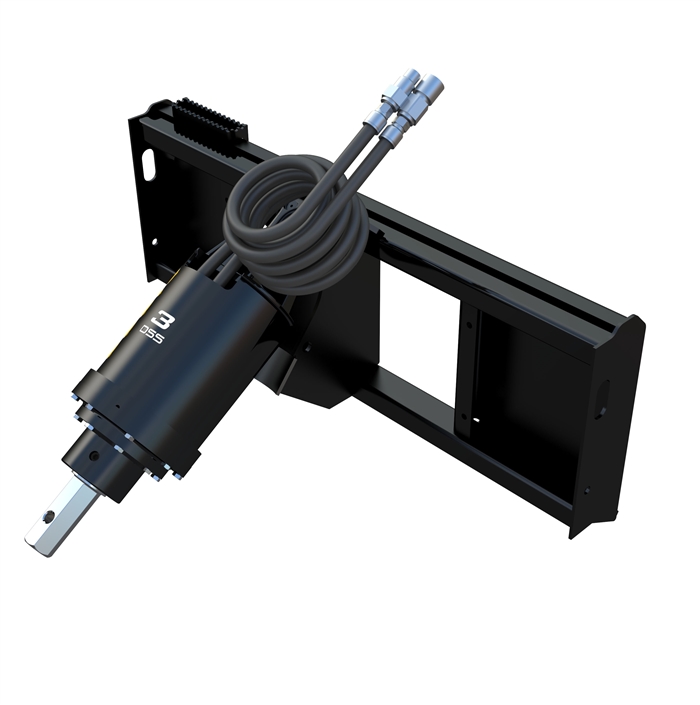

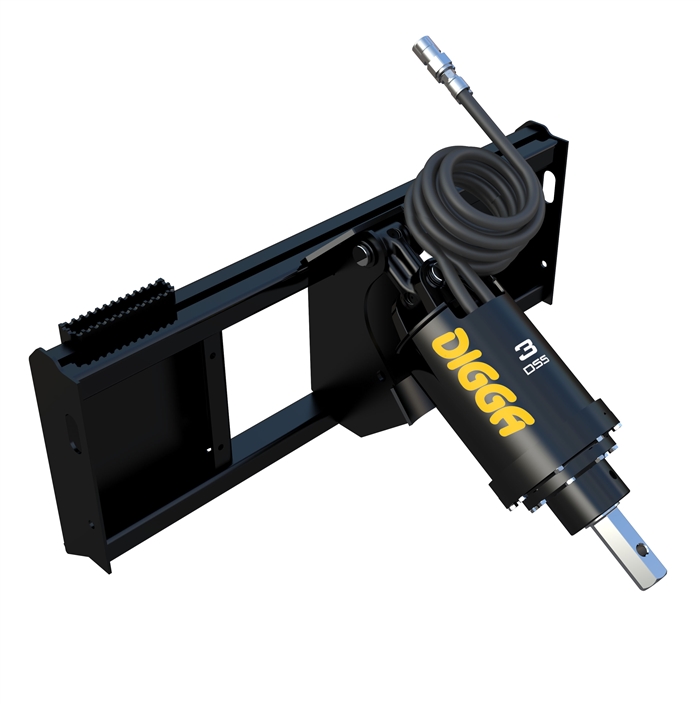

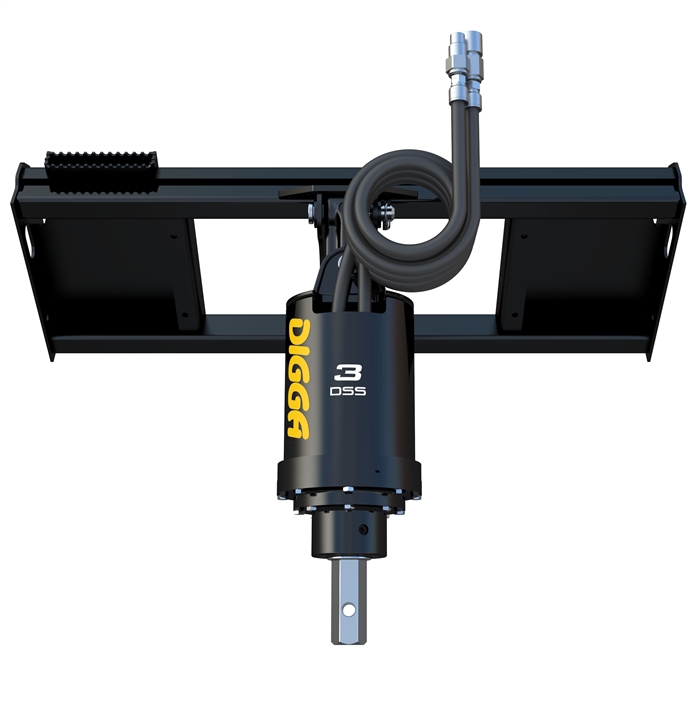

PACKAGE PRICE INCLUDES 87" HOSES, FF QUICK DISCONNECTS, UNIVERSAL SKID STEER MOUNT, & LINKAGE. MOUNTING PLATE IS SPECIFIC TO MAKE AND MODEL OF SKID STEER. PLEASE SPECIFY WHAT MACHINE THE MOUNT IS ATTACHING TO. Auger sold separately.


SUITABLE AUGER - A4 & RC4, SUITABLE EXTENSION - XO20

A4 Auger - General Purpose Earth Auger for Light Conditions


RC4 Auger- Rock/Earth Combo Auger for Fracturable Rock/Earth/Clay/Shale

Features

  • Compact Digga manufactured gearbox
  • Fitted with a Digga designed Eaton motor
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gear box and 3 year motor warranty
  • Over 30 years design and manufacturing experience

Auger Drive Specifications

Details 3DSS
Torque
(ft-lbs @ 3000 Psi) 		2829
Max Torque
(ft-lbs @ 3500 Psi) 		3300
Recommended Flow (gpm) 10-30
Motor Type Eaton
Max pressure
(do not exceed) 		3500 psi @ 16 gpm
Max flow
(do not exceed) 		30 gpm @ 1800 psi
Max horse power 33
Pressure relief valve N/A
standard output shaft 2" Hex
Recommended auger A4 / rC4
Max drilling diameter
(clay / shale)* 		24"
Max drilling diameter
(earth)* 		30"
Weight (lbs) 123
Overall length (in) 24.5"
Diameter (in) 9.4"
(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
3DSS
OUTPUT SPEED OUTPUT TORQUE

GPM

RPM

PSI

FT-LBS

10

33

1,500

1414

12

39

1,700

1603

14

46

1,900

1792

16

52

2,100

1980

18

59

2,300

2169

20

65

2,500

2357
22 72 2,700 2546
24 78 2,900 2735
26 85 2,500 2923
28 91 3,300 3112
30 98 3.500 3300
Our Price: $2,995.00


Product Code: DGA-3DSS-3-MF
Currently Unavailable

Description

Digga's high torque designed Eaton motor with integrated pressure relief valve eliminates the need for bulky valve blocks and reduces many potential leak points. Two-piece shaft design ensures maximum side load ratings without increasing load on bearings.

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 review November 27, 2022
Reviewer: Kenneth Guillemette from Andover, NH United States
I bought Digga A4 general purpose earth auger looks  like great quality. No problems in shipping.  I'm busy haven't had chance to use yet. Read most of instruction manual. Need to shuffle around hydaulic connections alittle. Augers look well built.
