M84-S Tractor Finish Mower 84, Rear Discharge
Farmtrac  M84-S Tractor Finish Mower 84", PTO driven, Rear Discharge, Solid Tires
M84-S Finish Mower, Solid Tires, Anti Scalp Roller, 84", PTO driven, Rear Discharge

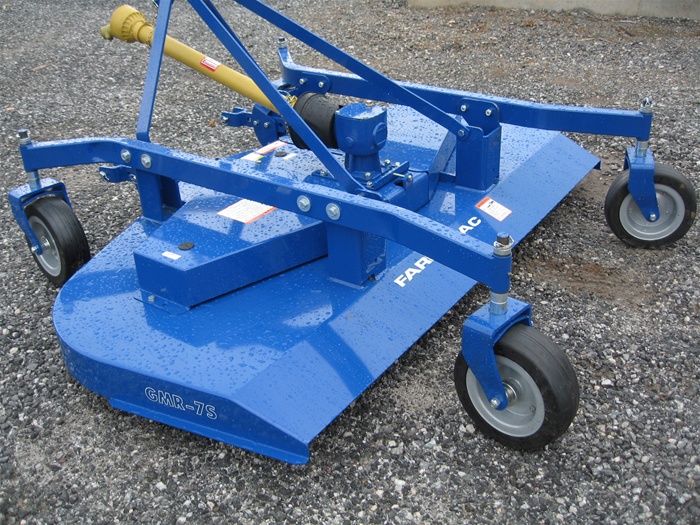

Alternative Views:


M84-S Tractor Finish Mower 84, Rear Discharge

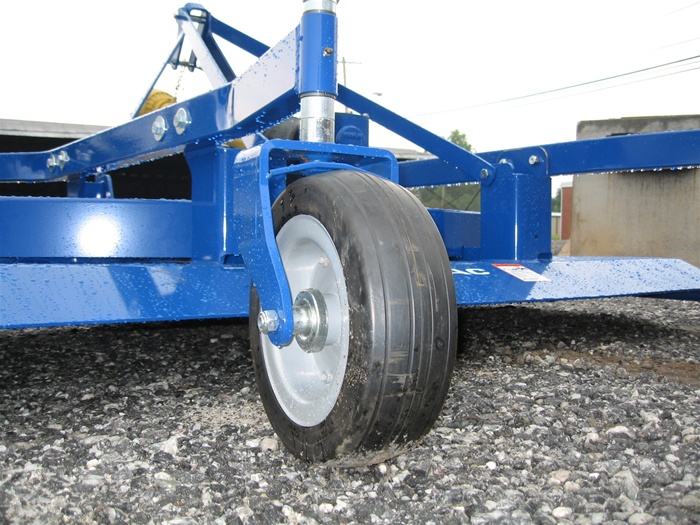

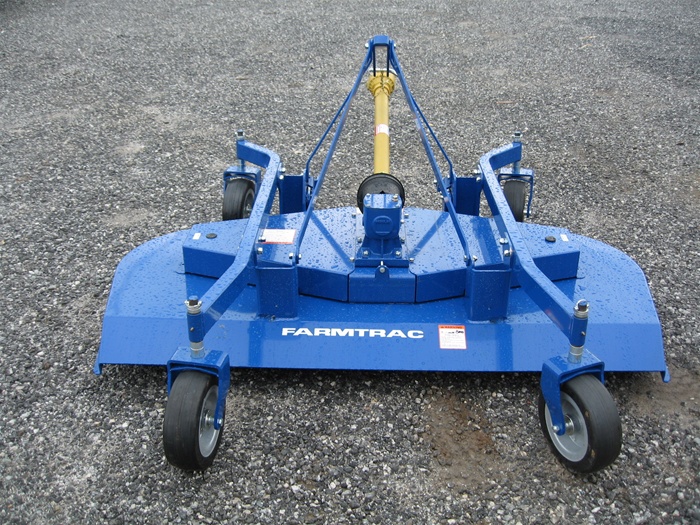

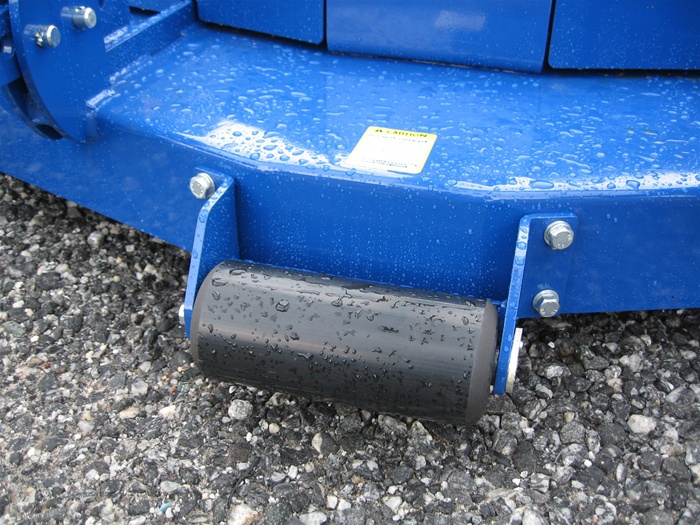

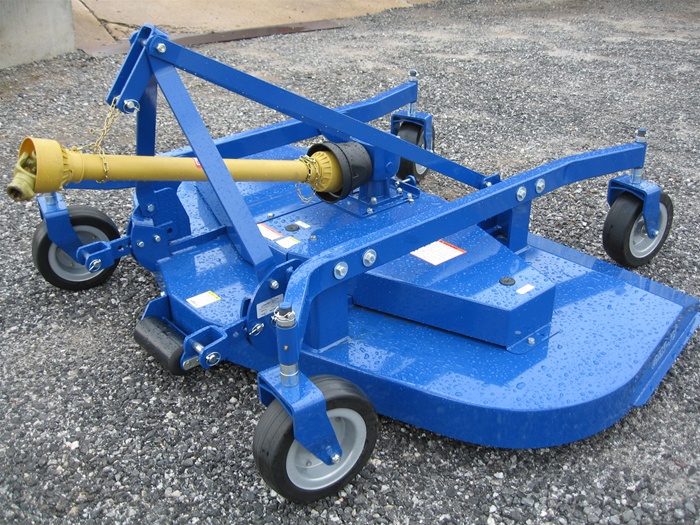

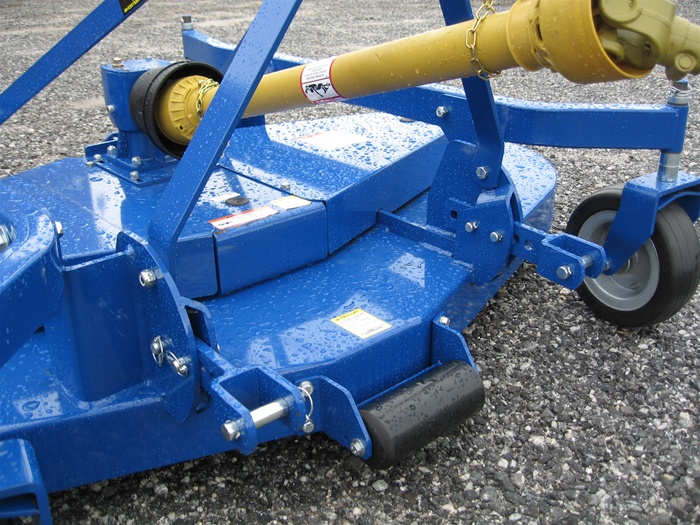

Rear discharge finish mower, grooming mower from Sicma, turns your tractor into a mowing machine. Mower has a 84" cutting width, (7 feet), and has 13" solid tires, these mowing machines feature three overlapping blades with specially designed baffles for a clean cut. Standard features include: Solid tires on heavy duty wheels with grease able roller bearings, Series 4 PTO shaft by European, Adjustable lower links with floating or fixed positions, Standard Front anti scalping roller on 84" models (Available Option on other models) as shown in photograph, Floating top hitch for smooth terrain tracking. *Now featuring sealed, no maintenance deck spindles.

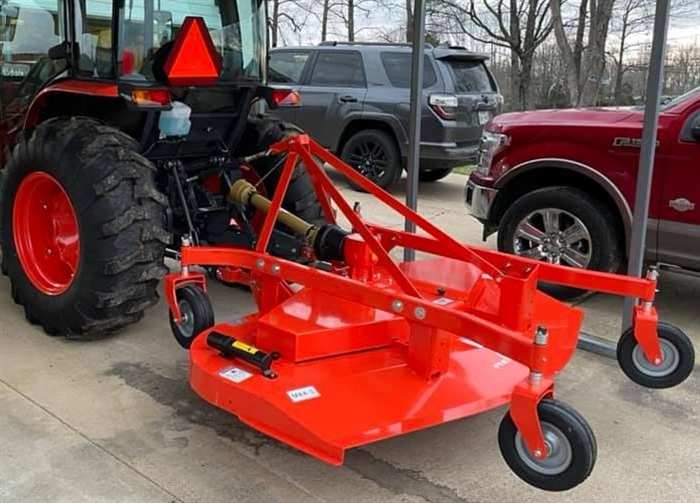

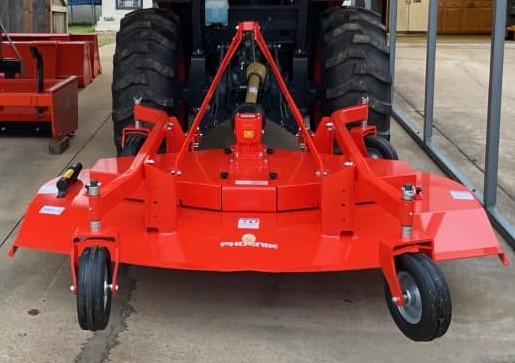

Available in Red and Orange as Phoenix brand



Our Price: $3,202.00

Product Code: FAR-MOWER-FIN-84-PTOREAR-M84-S

Description

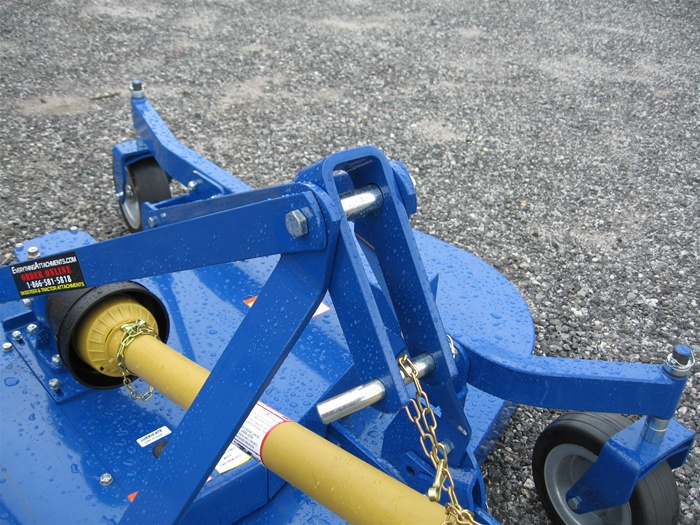

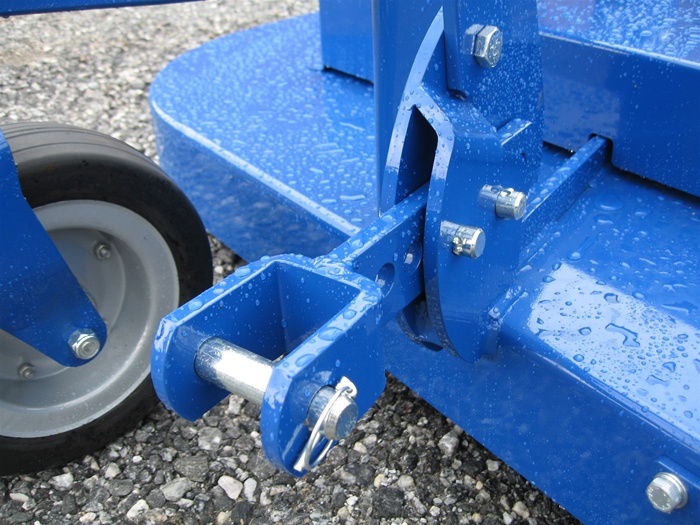

Heavy duty and quiet oil filled gearboxes with precision heat treated gears mean more power for your horsepower dollar. Floating 3 pt. hitches with adjustable lower links allow the mower to closely follow ground contours resulting in a more consistent and professional cut. Cutting height adjustment is quick and easy thanks to simple to change spacer bushings. All lubrication points are easily accessible without removing belt shields. Shields are removable in seconds for belt adjustment and routine maintenance. Anti-scalping rollers are standard on M84 models and are available on all other models on request.
Technical Specifications:
Specifications M48-A | M48-S M60-A | M60-S M72-A | M72-S M84-A | M84-S
Mowing Width (Inches) 48 60 72 84
Overall Width (Inches) 50 63 74 86
Mowing Height (Inches) .75 - 5.25 .75 - 5.25 .75 - 5.25 .75 - 5.25
Number of Blades 3 3 3 3
Deck Material Thickness (MM/Gauge) 4/8 4/8 4/8 4/8
Discharge Rear Rear Rear Rear
Hitch Cat 1 Cat 1 Cat 1 Cat 1
PTO Shaft Series 4 4 4 4
PTO Power Required (HP) 10.30 20.40 30-50 40-60
Optimum PTO Speed (RPM) 540 540 540 540
Blade Tip Speed (FPM) 3130 2650 2240 2030
Approx Weight w/PTO (LBS) 392 | 450 545 | 580 615 | 660 850 | 898
Tire Configuration Pneumatic | Solid Pneumatic | Solid Pneumatic | Solid Pneumatic | Solid
Anti-Scalp Roller Optional Optional Optional Standard
Belt Covers MDPE MDPE MDPE Metal
