Phoenix M60-S Tractor Finish Mower 60, Rear Discharge

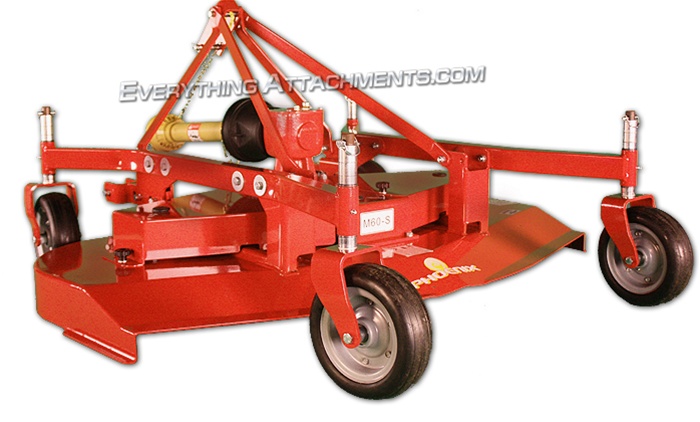

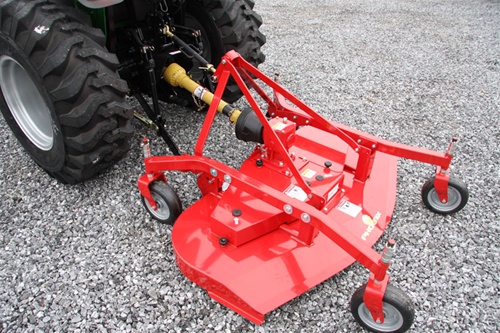

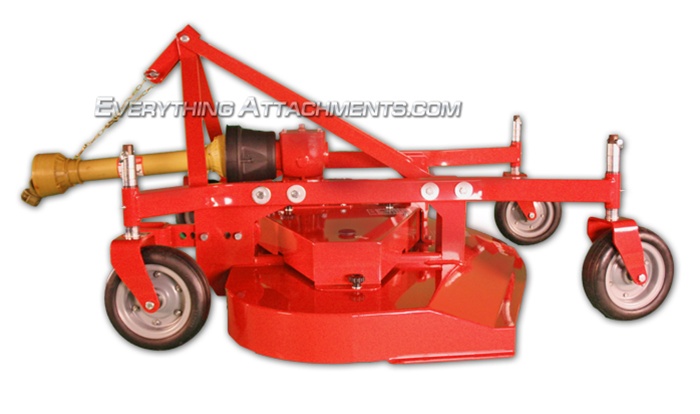

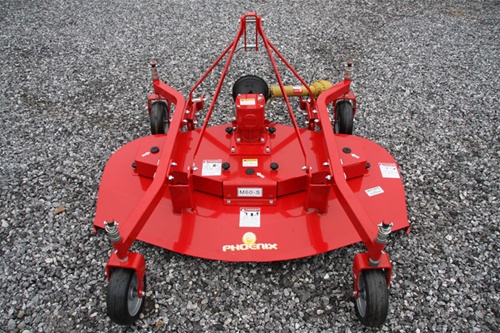

Phoenix M60-S Tractor Finish Mower 60", PTO driven, Rear Discharge, Solid Tires
Phoenix M60-S Tractor Finish Mower 60", Rear Discharge, Solid Tires



Alternative Views:


Phoenix M60-S Tractor Finish Mower 60, Rear Discharge

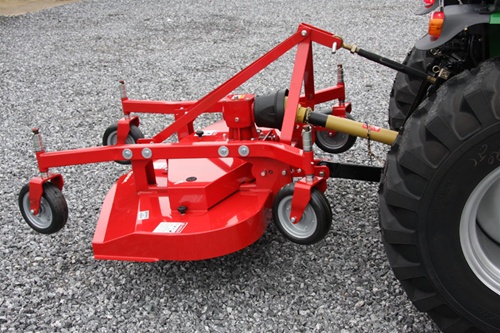

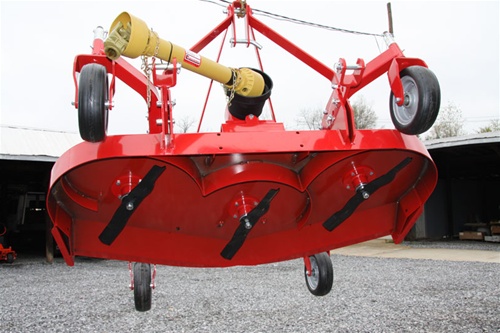

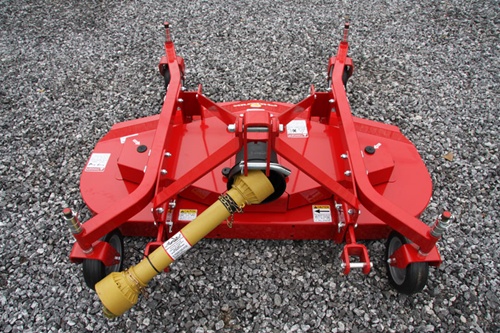

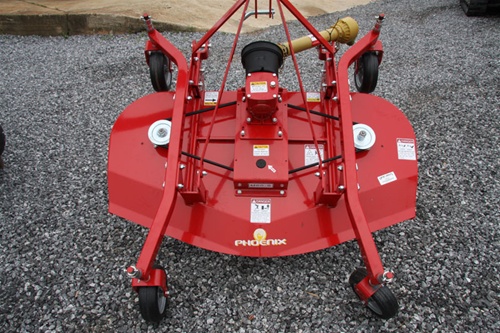

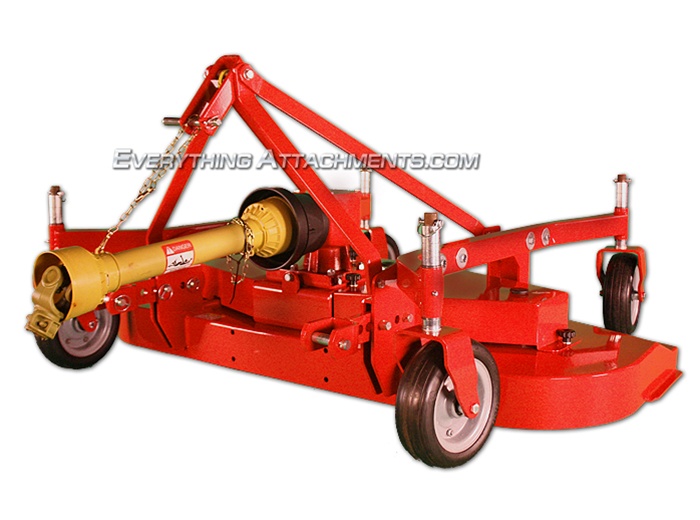

The Phoenix Line of rear discharge finish mowers, grooming mowers, turns your tractor into a mowing machine. This unit has a 5' cutting width with 11" diameter solid tires. These mowing machines feature three overlapping blades with specially designed baffles for a clean cut.

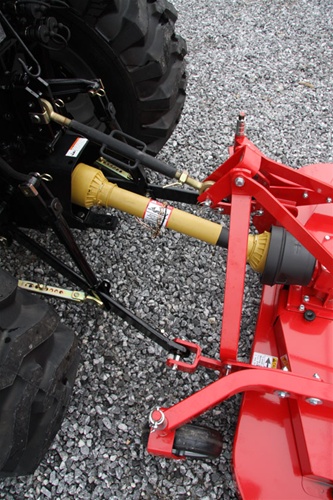

Standard features include: Solid tires on heavy duty wheels with greasable roller bearings, Series 4 PTO shaft by Eurocardan, Adjustable lower links with floating or fixed positions, Front anti scalping roller on 84" models (Available Option on other models) as shown in photograph, Floating top hitch for smooth terrain tracking. *Now featuring sealed, no maintenance deck spindles.

The anti scalping roller is normally not needed for 60" and 72" mowers, due to the great design of off set wheels, unless your yard has crowns.



Our Price: $2,368.00


Product Code: PH-MOWER-FIN-60-PTOREAR-M60-S

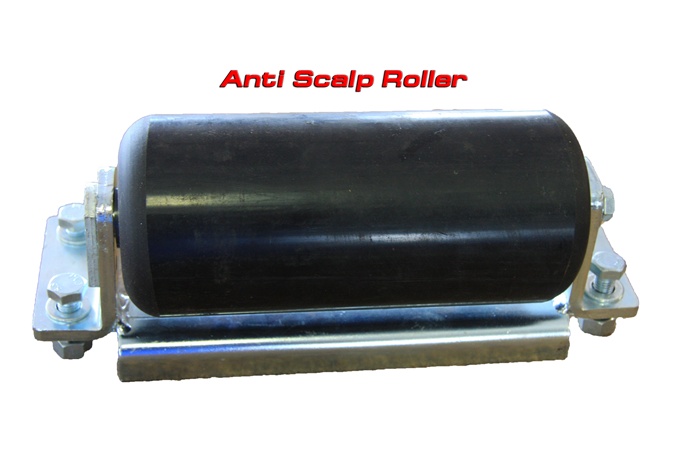

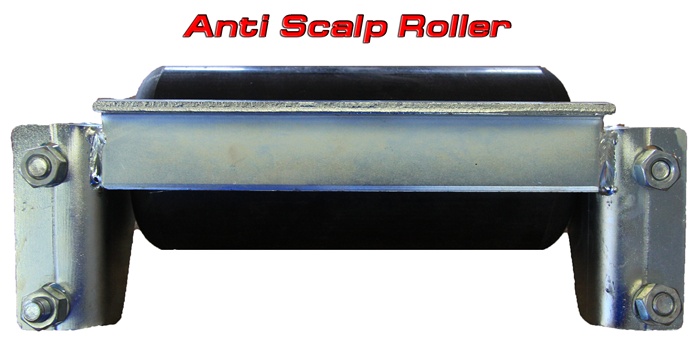

Anti Scalping Roller

Anti Scalping Roller [Add $162.00]


Description

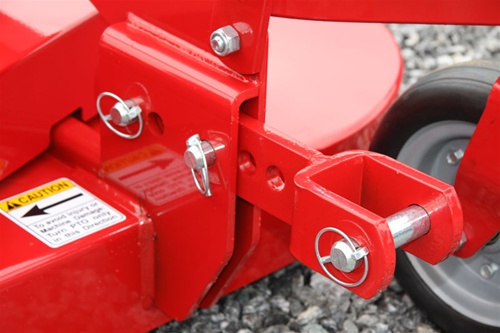

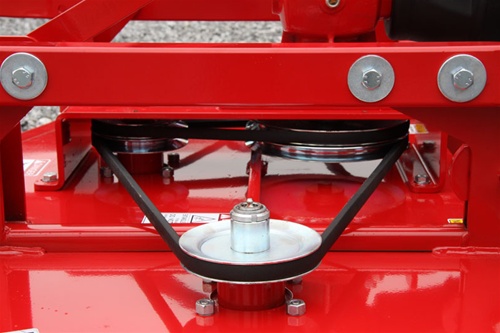

Heavy duty and quiet oil filled gearboxes with precision heat treated gears mean more power for your horsepower dollar. Floating 3 pt. hitches with adjustable lower links allow the mower to closely follow ground contours resulting in a more consistent and professional cut. Cutting height adjustment is quick and easy thanks to simple to change spacer bushings. All lubrication points are easily accessible without removing belt shields. Shields are removable in seconds for belt adjustment and routine maintenance. Anti-scalping rollers are standard on M84 models and are available on all other models on request.

How to Use a Finishing Mower
Technical Specifications:
Specifications M48-A | M48-S M60-A | M60-S M72-A | M72-S M84-A | M84-S
Mowing Width (Inches) 48 60 72 84
Overall Width (Inches) 50 63 74 86
Mowing Height (Inches) .75 - 5.25 .75 - 5.25 .75 - 5.25 .75 - 5.25
Number of Blades 3 3 3 3
Deck Material Thickness (MM/Gauge) 4/8 4/8 4/8 4/8
Discharge Rear Rear Rear Rear
Hitch Cat 1 Cat 1 Cat 1 Cat 1
PTO Shaft Series 4 4 4 4
PTO Power Required (HP) 10.30 20.40 30-50 40-60
Optimum PTO Speed (RPM) 540 540 540 540
Blade Tip Speed (FPM) 3130 2650 2240 2030
Approx Weight w/PTO (LBS) 392 | 450 545 | 580 615 | 660 850 | 898
Tire Configuration Pneumatic | Solid Pneumatic | Solid Pneumatic | Solid Pneumatic | Solid
Anti-Scalp Roller Optional Optional Optional Standard
Belt Covers MDPE MDPE MDPE Metal

Average Customer Review: 5 of 5 Total Reviews: 8 Write a review.

  0 of 0 people found the following review helpful:

Some issues October 31, 2018
Reviewer: Andre from Gilbert, SC United States
I like the mower but, the keyway for the for the gearbox was not installed, so I had to take it apart and then reinstall it. Also their are no grease fittings on the spindles. Maybe my biggest complaint is that the gearbox doesn't have a drain plug. You have to suck the oil out to do the oil change. The mower does cut very well though.  EA Response:  These mowers are shipped to the customer just as a dealer would receive them, so some setup is required.  The newest spindle design features sealed spindle bearings, which has not been problematic in the least and is featured on most all current zero turn mowers in the industry.   Agricultural gearboxes simply do not have drain plugs.   This is true for rotary cutters, tillers, post hole diggers..pretty much all of them.  Thanks for the business and happy cutting!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Good job October 18, 2018
Reviewer: Calvin B from Iron Station, NC United States
I thought that my old finish mower did a good job. Compared to this mower not so much. Takes a little to get the height right but then the job it does is fantastic!
My yard had gotten a little tall because of the rain and my work schedule, but the mower handled it easily. I guess because of the height o the grass it did windrow a little. But no complaints from me.
Assembly was not that difficult but an extra hand would have made it easier for an old man like me.
Money well spent and if it holds up I should be done buying mowers.
Always have had a good experience dealing with these people. Thanks!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

September 13, 2018
Reviewer: Brandon Raudenbush from Novelty, OH United States
Great service, answered all questions, and very good quality product!  love it!  Will be buying more from this company!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

Phoenix finish mower June 28, 2018
Reviewer: Tom Paff from Gibsonia, PA United States
Fantastic!

Was this review helpful to you?

  0 of 0 people found the following review helpful:

great product October 21, 2016
Reviewer: Boku from Pound Ridge, NY United States
Assembly took about 2 hours for me but was not very difficult.  Looks to be built extremely well!

Was this review helpful to you?
