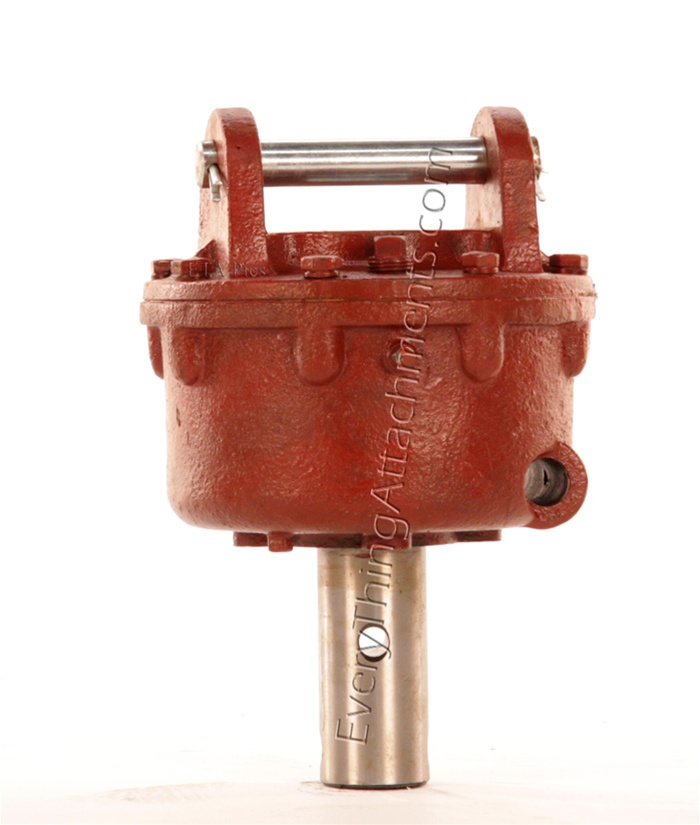

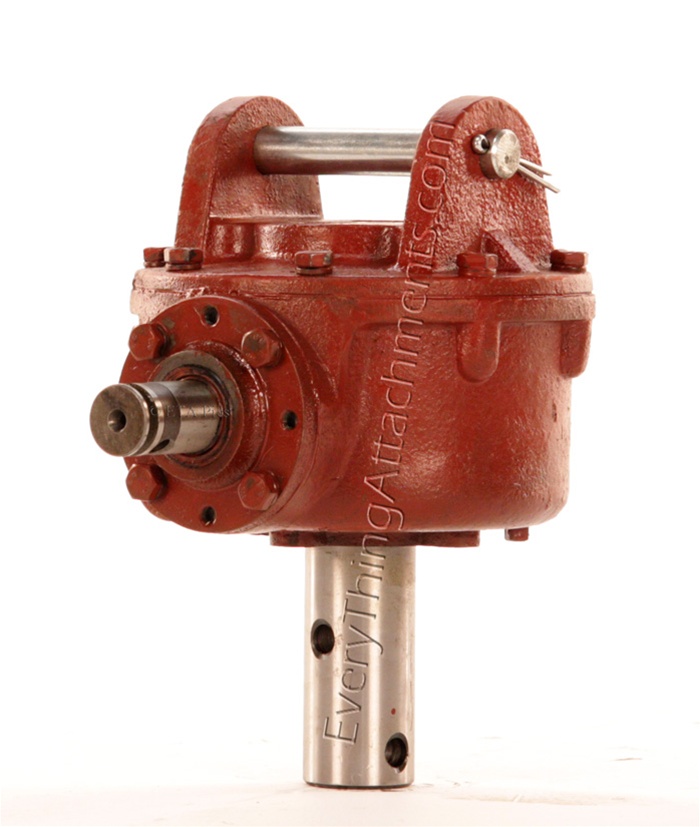

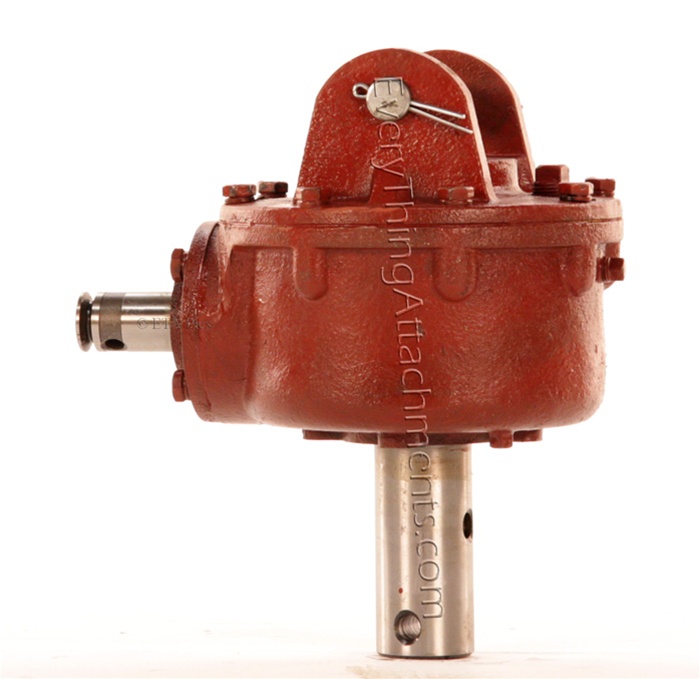

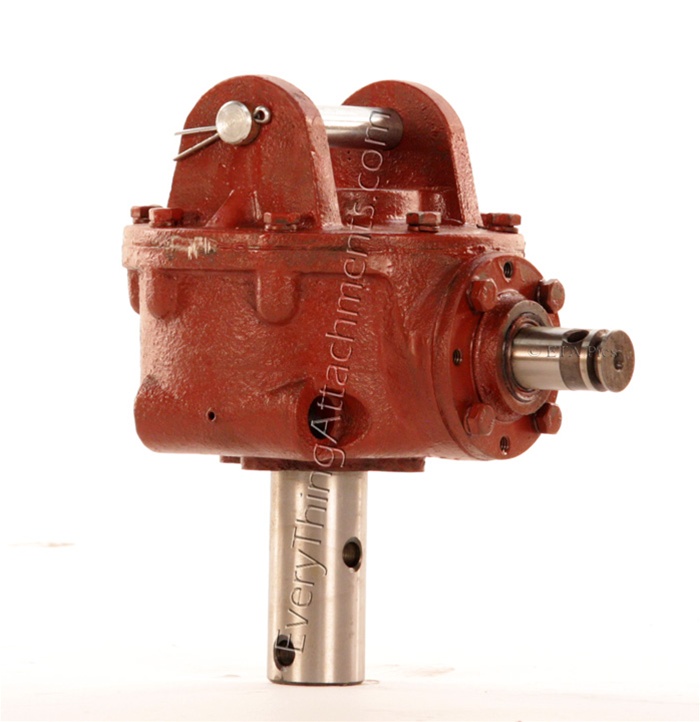

Tractor PTO Post Hole Digger Gearbox PHD-26
Tractor PTO Post Hole Digger Gearbox PHD-26



Alternative Views:


Measurement PHD-26 PHD-50 PHD-75
HorsePower 44hp 57hp 88hp
Torque: 5133 lb.-in. 6650 lb.-in. 10,2670lb -in.
Ratios: 2.92:1 3.18:1 4.00:1
Gears: Straight Bevel Straight Bevel Straight Bevel
Seals: Triple Lip Spring Loaded Triple Lip Spring Loaded Triple Lip Spring Loaded
Bearings: Tapered, Ball, Needle Tapered, Ball, Needle Tapered, Ball, Needle
Oil Cap: 38oz (1.1 L) 57oz (1.7 L) 138 oz (4.1 L)
Weight: 48lbs (21.8kg) 60lbs (27.2kg) 110lbs. (49 kg)

There are three sizes of gear boxes available from Everything Attachments, the PHD-26, (measures 4 1/4" between the ears), the PHD-50, (measures 5 1/4" between the ears), and the PHD-75 (5 1/4" between the ears). These gear boxes are sold without shields and have 1 1/4" input shafts and 2" output shafts. The PHD-26 is rated up to an 12" auger.



Our Price: $313.95

Product Code: PHD-26

Description Video Transcription

The powerhouse behind the Everything Attachment brand, Tractor Post Hole Digger is now available for sale by itself. We offer these post hole digger gear boxes in three sizes, the PHD-26, the PHD-75, and the PHD-75. Free ground shipping to your door within 1,000 miles!

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Awesome PHD Gear Box March 25, 2022
Reviewer: William Orton from Camden, NC United States
I have a 20 year old Leinbech Post Hole Digger (PHD) that had been damaged. My unit was the 40HP model. Everything Attachments had the replacement OmniGear gearbox for my auger at a great price.  The new gear box was received 2 days after ordering it. OmniGear does not sell parts for these units, except for the 2 shaft seals. I had to purchase a new gear box and my auger is now as good as new.
Thank you.
