Amulet TILT BUCKET for 15-20 Ton Excavators
Amulet TILT BUCKET for 16-21 Ton Excavators
Amulet TILT BUCKET for 16-21 Ton Excavators



Alternative Views:


TILT BUCKET for 15-20 Ton Excavators

Amulet's TILT BUCKET is the Ultimate Grading and Shaping Tool!

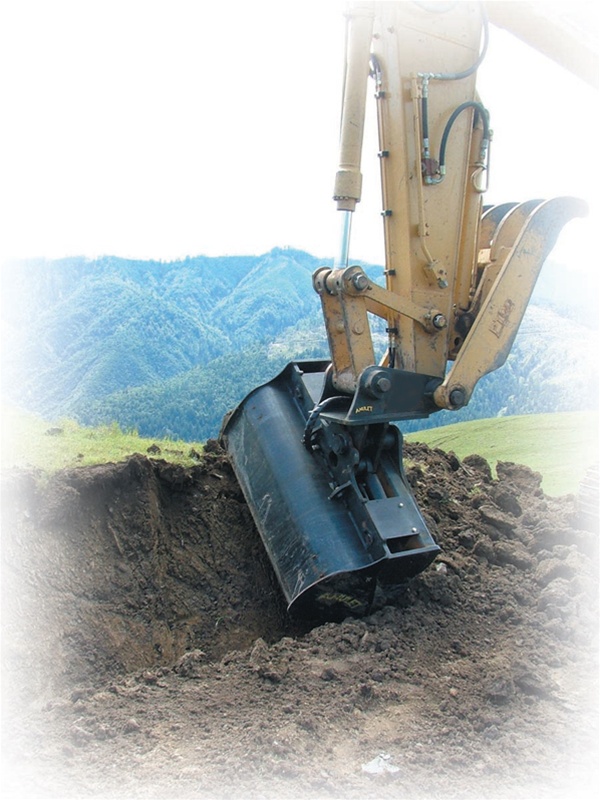

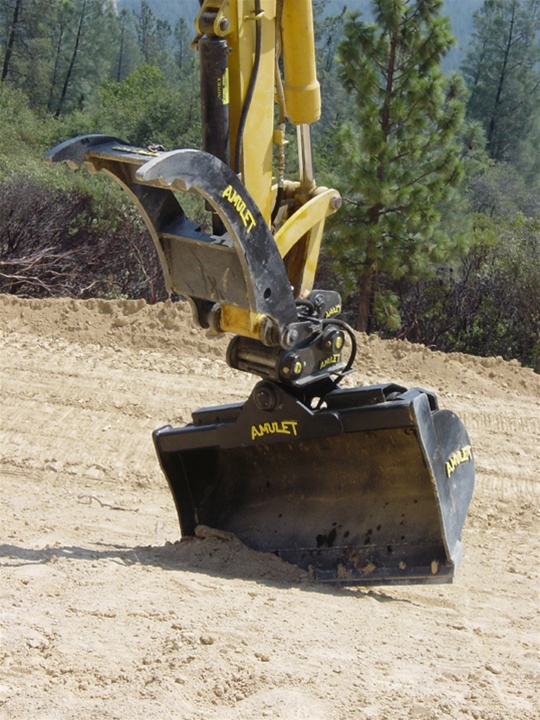

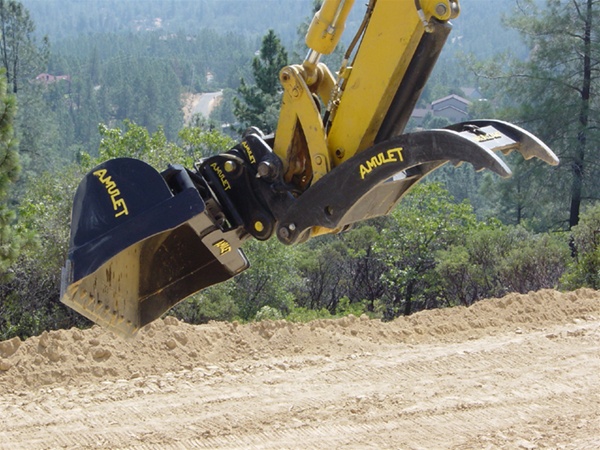

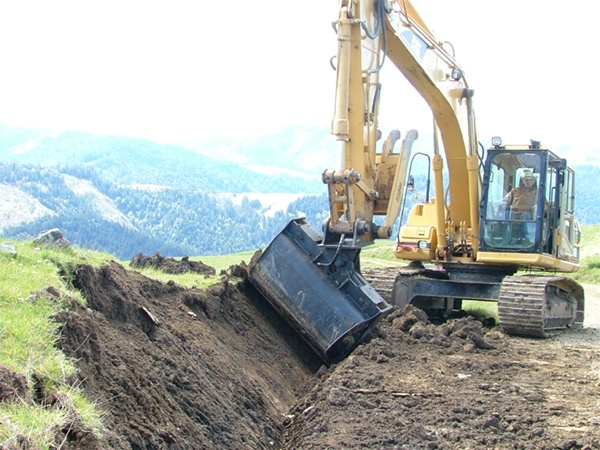

The Amulet Tilt Bucket is fast becoming standard equipment for many excavator operators. Our innovative and superior design incorporates every feature possible, culminating in the ultimate shaping tool. Perfect for V-ditching and sloping, it has optional cutting edges that are replaceable, decreasing wear on the factory edge. With 45 degrees of tilt in both directions, work from either side of your project.


  • Comes complete with cylinders and hoses, ready to mount and use on your machine!

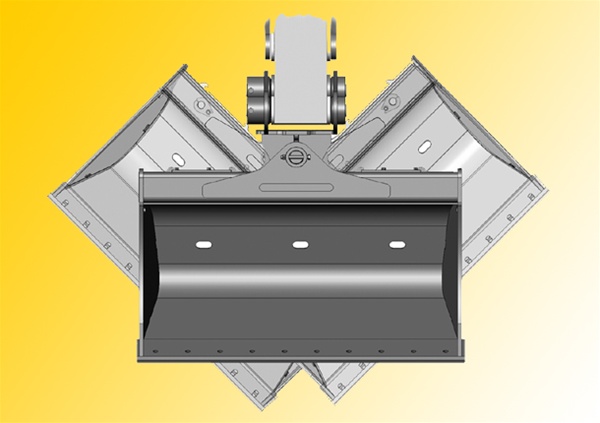

  • Buckets tilt 45 degrees each way giving a full 90 degree range of tilt.
  • Standard side taper allows for bucket clearance through crowd action.
  • Heavy duty double-acting hydraulic cylinders are fully guarded.
  • Induction hardened pivot pins mounted through large bushed surfaces maximize wearability.
  • Cylinder rod ends are bushed for ease of maintenance.
  • Hydraulic hose guides are provided for short hose protection.
  • Twin cylinders come complete with bucket hose kit.
  • Wear strips are fitted as standard features for extended bucket life.
  • Bolt-on cutting edges can be fitted as an option increasing life of the base edge.
  • Optional abrasion resistant side cutters and heavy duty cutting edge increases bucket rigidity, durability and wear.
  • Free shipping within Continental US.

Our Price: $8,374.00

Product Code: AM-TB4-16-21-TON-TILT-BUCKET

Description

The Tilt Bucket has revolutionized how grading and shaping are done! 45 degree tilt in both directions Free shipping within Continental US.
Technical Specifications:

For Use With

  • Case 9020, CX160
  • Caterpillar 211, 212, 213, 214, 315
  • Daewoo/Doosan 170, 175, 180, 200
  • Hitachi EX150, EX160, ZX160
  • Hyundai R160
  • JCB JS150, JS160, JS180
  • John Deere 5900,5950, 160
  • Kobelco SK150, E0150, SK160LC, SK170LC, E0180
  • Komatsu PC150, PC160, PC180
  • Link-Belt 160X2
  • New Holland EC160, E175B
  • Terex TXC175LC, TXC180LC
  • Volvo ECR145CL, EC150B, EC160CL

Not all machines accept all listed products

*Specific models vary depending on machine, bucket & quick coupler
