Amulet TILT BUCKET for 8-10 Ton Excavators and Backhoes
Amulet TILT BUCKET for 7.5-9 Ton Excavators and Backhoes
Amulet TILT BUCKET for 7.5-9 Ton Excavators and Backhoes



Alternative Views:


TILT BUCKET for 8-10 Ton Excavators

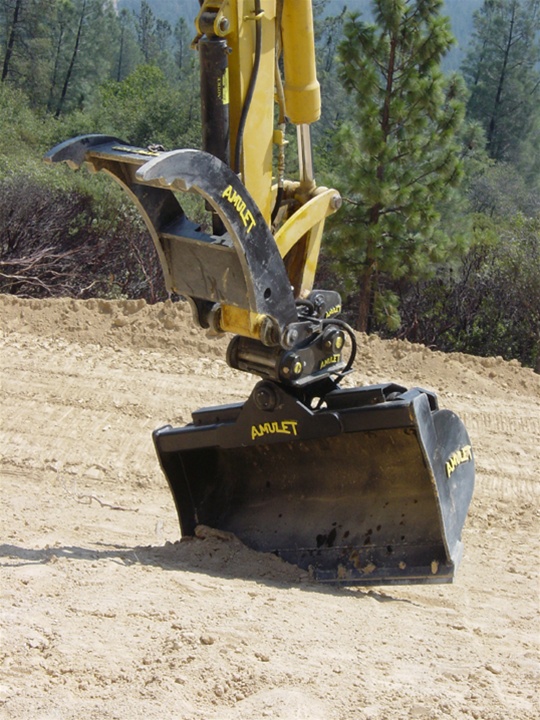

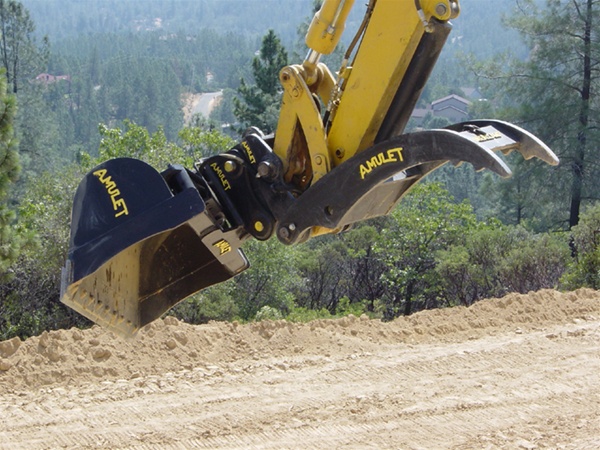

Amulet's TILT BUCKET is the Ultimate Grading and Shaping Tool!

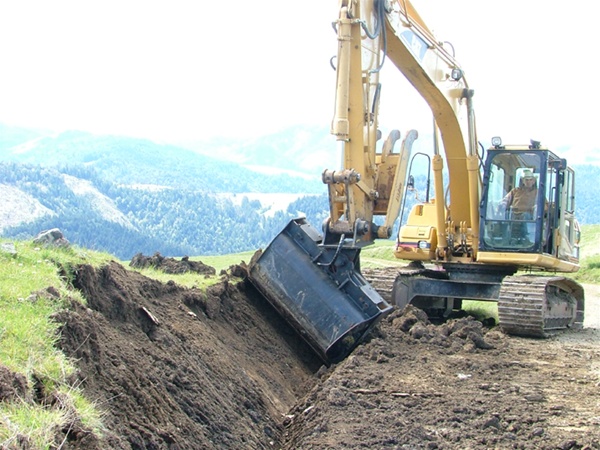

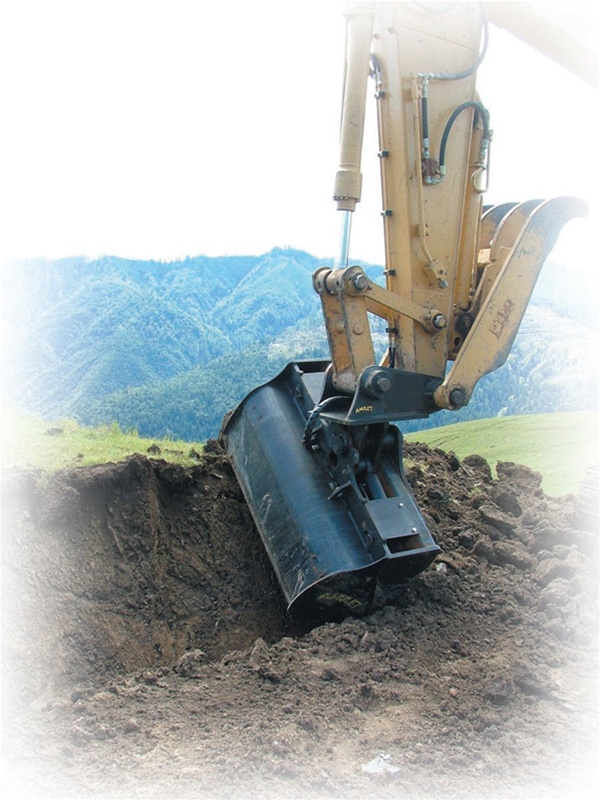

The Amulet Tilt Bucket is fast becoming standard equipment for many excavator operators. Our innovative and superior design incorporates every feature possible, culminating in the ultimate shaping tool. Perfect for V-ditching and sloping, it has optional cutting edges that are replaceable, decreasing wear on the factory edge. With 45 degrees of tilt in both directions, work from either side of your project.


  • Comes complete with cylinders and hoses, ready to mount and use on your machine!

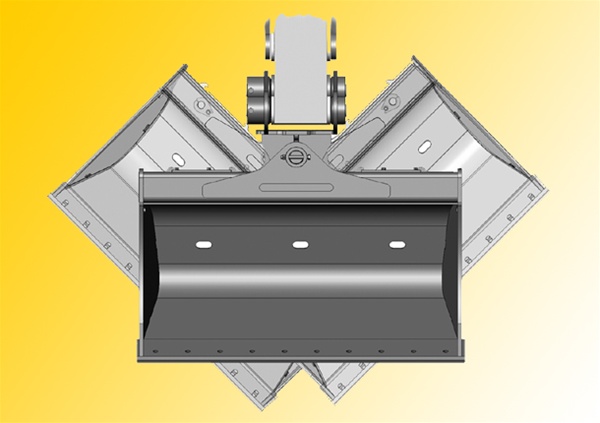

  • Buckets tilt 45 degrees each way giving a full 90 degree range of tilt.
  • Standard side taper allows for bucket clearance through crowd action.
  • Heavy duty double-acting hydraulic cylinders are fully guarded.
  • Induction hardened pivot pins mounted through large bushed surfaces maximize wearability.
  • Cylinder rod ends are bushed for ease of maintenance.
  • Hydraulic hose guides are provided for short hose protection.
  • Twin cylinders come complete with bucket hose kit.
  • Wear strips are fitted as standard features for extended bucket life.
  • Bolt-on cutting edges can be fitted as an option increasing life of the base edge.
  • Optional abrasion resistant side cutters and heavy duty cutting edge increases bucket rigidity, durability and wear.
  • Free shipping within Continental US.

Our Price: $5,660.00

Product Code: AM-TB2-7.5-9-TON-TILT-BUCKET

Description

The Tilt Bucket has revolutionized how grading and shaping are done! 45 degree tilt in both directions. Free shipping within Continental US.
Technical Specifications:

For Use With

  • Case 9007B, CX75, CX80
  • Caterpillar 307, 308, E70B
  • Gehl 753Z, 803
  • Hitachi EX60-5, EX80, ZX75, ZX125
  • Hyundai R80
  • Ingersoll-Rand ZX75, ZX125
  • JCB 1700, 217, 8080, 8085
  • John Deere 190E, 70, 75D, 80, 85D
  • Kobelco 70SR, 80CS, SK75
  • Komatsu PC78, PC80, PC88, PC90, PC95
  • Kubota KX080
  • Link-Belt 75, 80
  • Lui Gong 908C
  • Mustang 7503, 8003
  • New Holland E70B, E80B
  • Sany SY75C
  • Takeuchi TB175, TB180
  • Terex TC75 (HR32)
  • Volvo EC70, ECR8003
  • Wacker Neuson 8003
  • Yanmar B7, Vi080

Not all machines accept all listed products

*Specific models vary depending on machine, bucket & quick coupler
