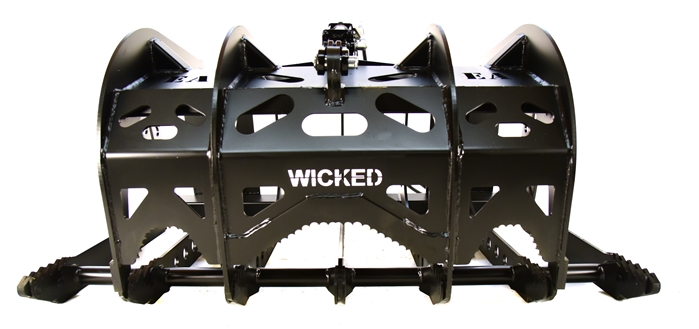

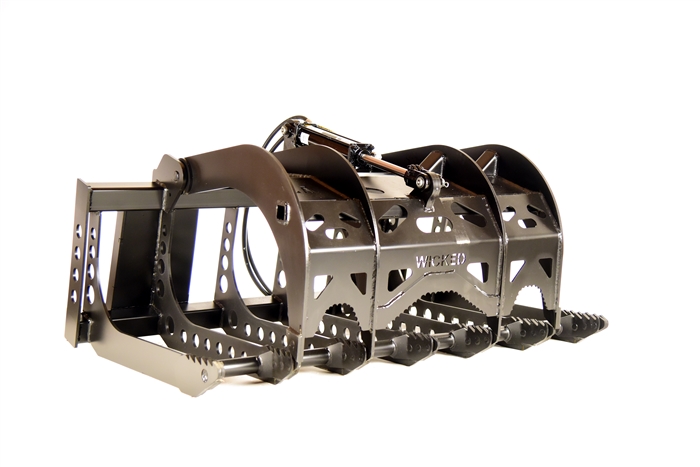

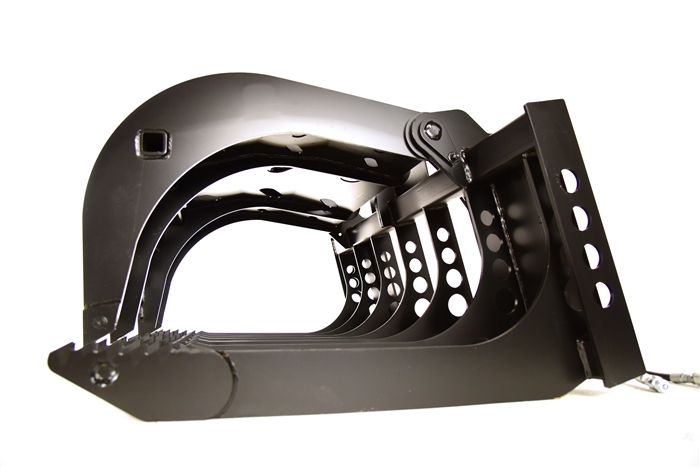

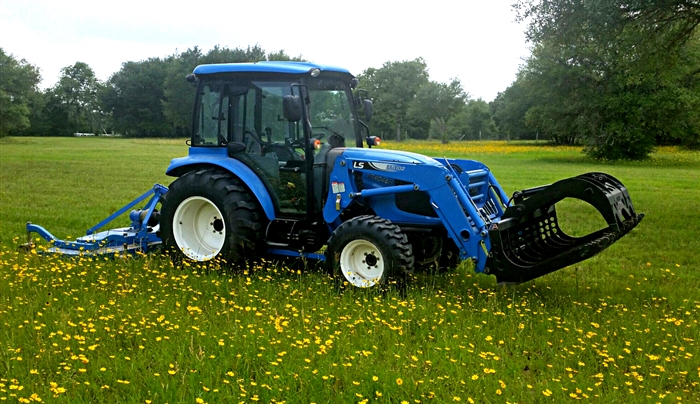

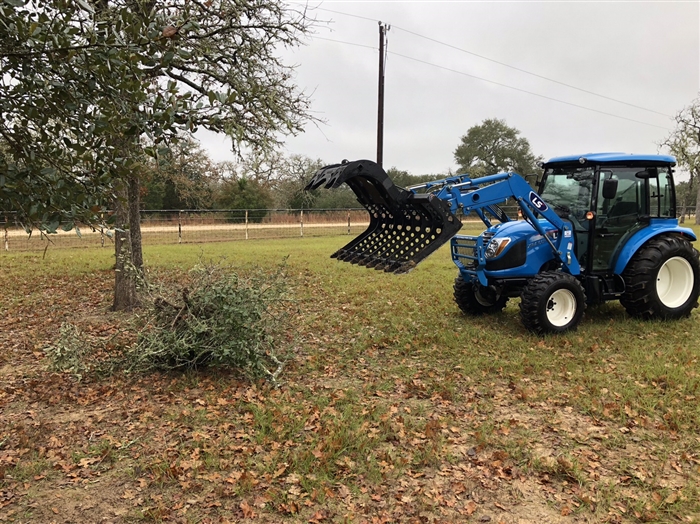

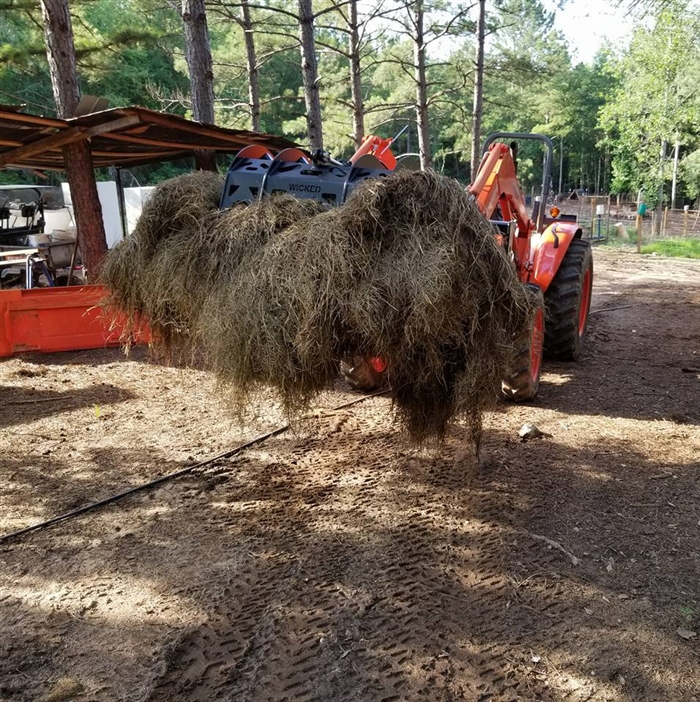

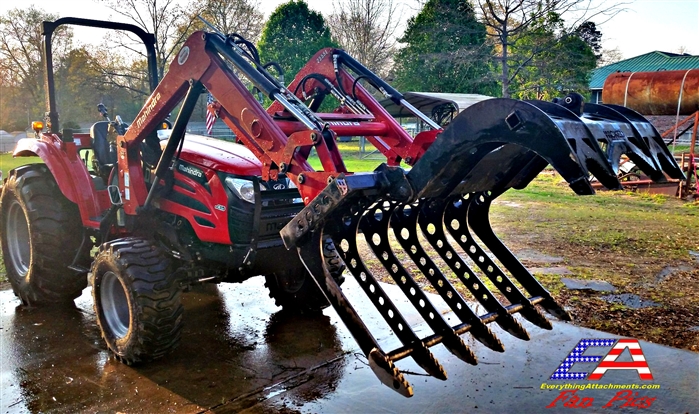

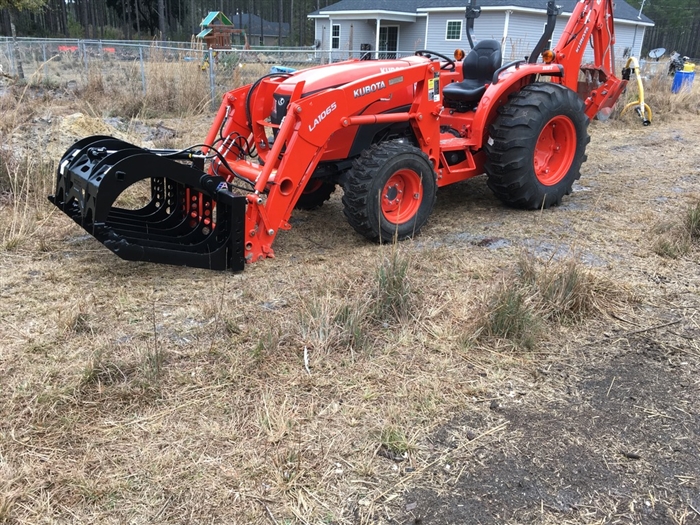

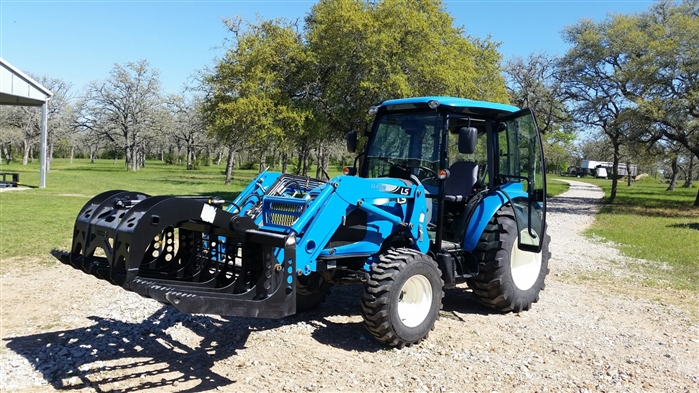

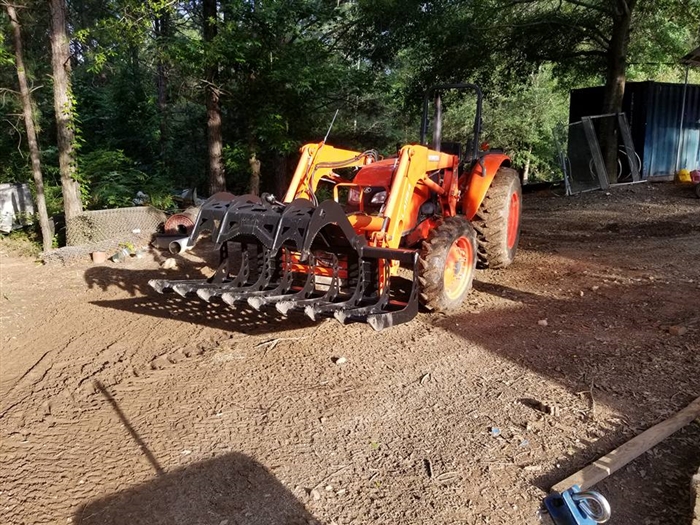

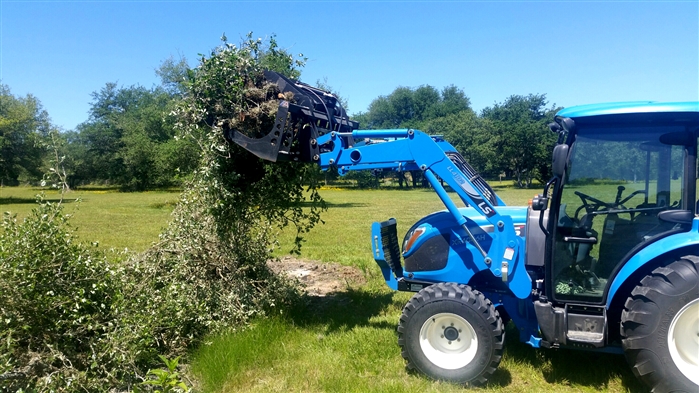

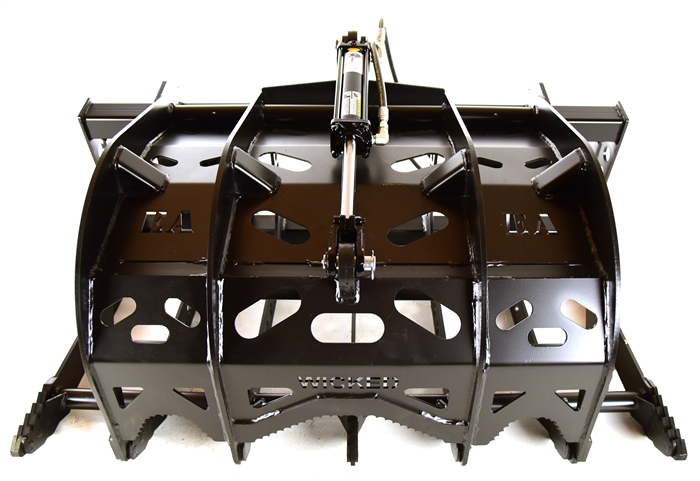

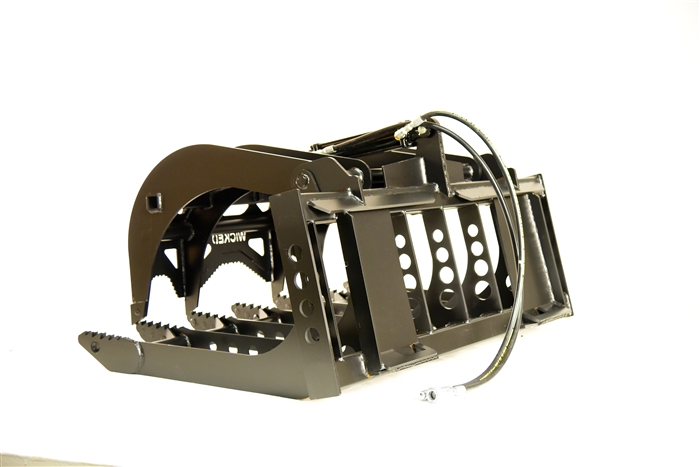

Everything Attachments Single Lid Root Grapple For Mega Compact and Utility Tractors
Several hundred pounds of unnecessary dead weight on the front of your tractor can make it feel sluggish and less agile, so installing a HEAVY GRAPPLE just DOESN'T MAKE SENSE!
The Incredibly Strong Wicked Utility Grapple weighs only 627/665 pounds. It is designed to maximize the efficiency and productivity of your loader without sacrificing strength and durability!
- Proudly Made in the USA!

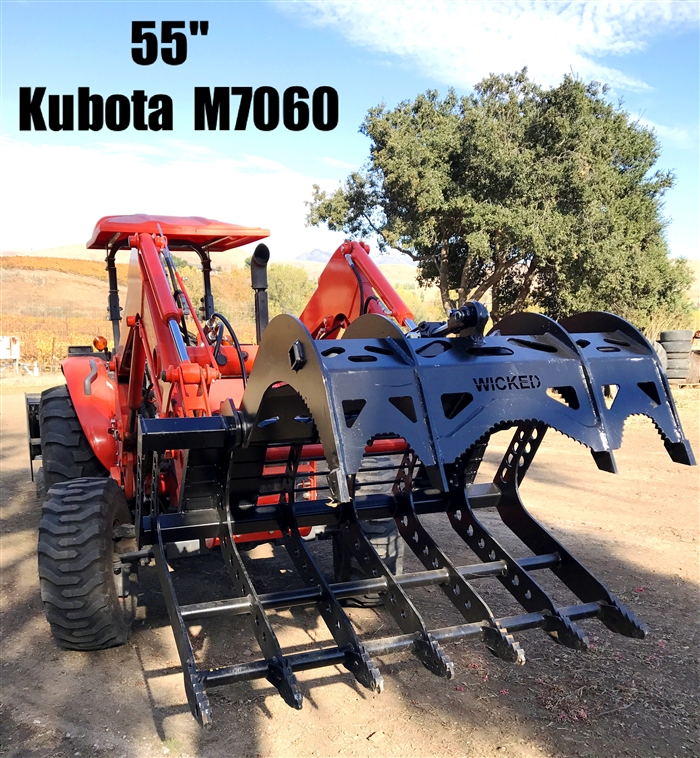

- 55 or 73 inch working width
- Built for tractors weighting less than 7,000 lbs. with loader lifting capacities under 2,500 lbs. for the 55", for the 73" grapple up to 3,000 lbs. lift capacity.
- Weighs 627 or 665 lbs.
- Laser cut for precision
- Impressive 42.5" wide opening
- 3/8" A572 Grade 50 Steel Construction

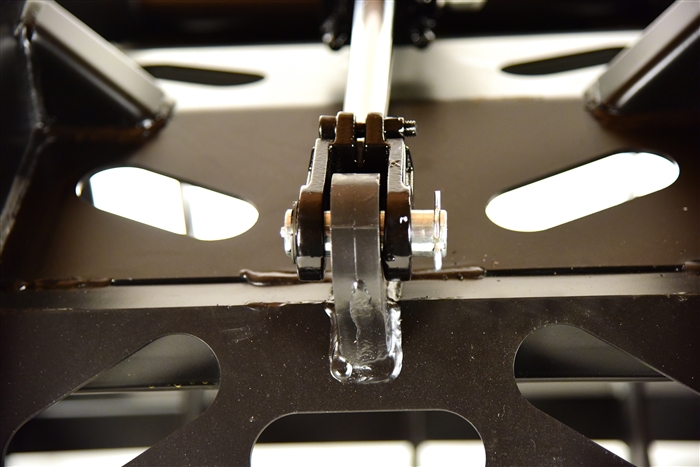

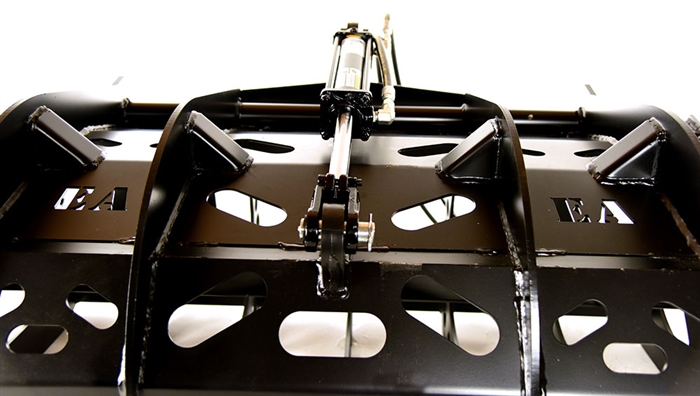

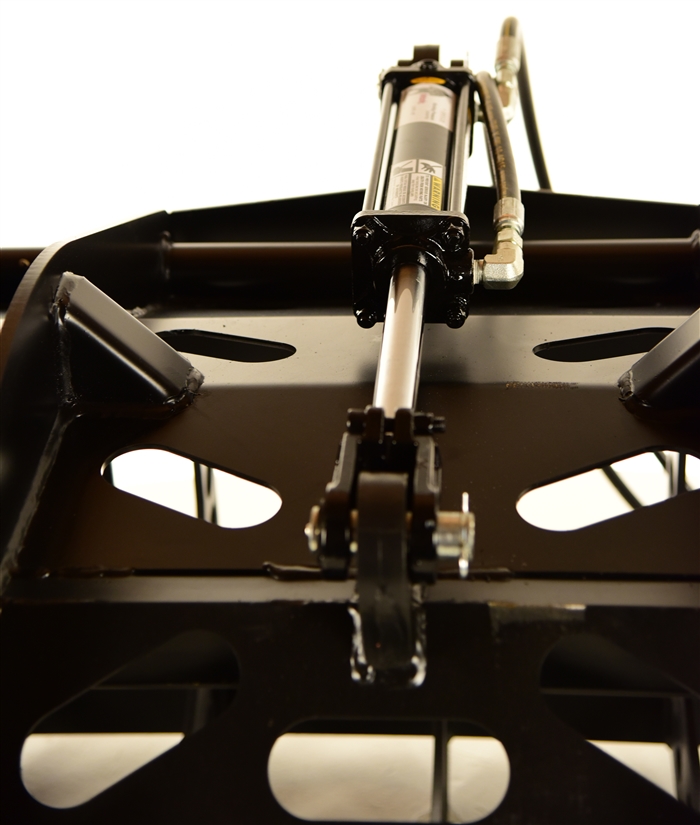

- 2.5" bore x 10" stroke hydraulic cylinders
- Lid is 36" wide
- Tines are spaced 8.5" apart
- Serrated & Laminated Wicked End Tines are Grade 80 Steel
- 40" Overall Front to Back Length
- Several options for hydraulic couplers
- 1/2" ag style couplers are standard. Flat Face available for $95 more.
- Universal Skid Steer Quick Attach is standard.
- John Deere 500 series and H240, H260 & H310, and Euro Global Quick Attach available for $125 Build Fee
- Everything Attachments Product Warranty
- Free shipping within 750 miles of Conover, NC
- Grease prior to use.
Click Here for 360 Degree View
*We include 64" hydraulic hoses to reach the side of the loader arms. If your hydraulic outlets are mounted in a different location simply specify needed length in the comments section of your order, or contact us to order.
Price with Selected Options: $0.00
|

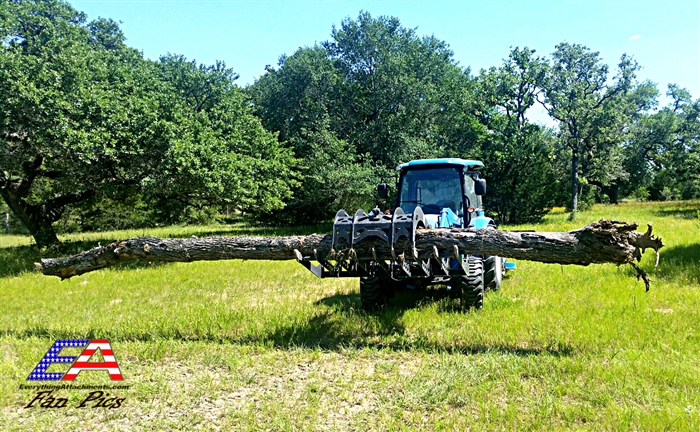

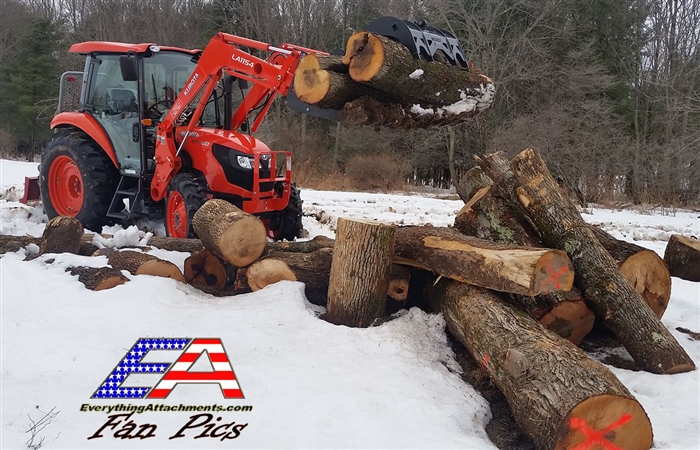

Photos: fab
Product Code: ETA-SLMCURG
|
|
|
|
|
 |
 |
 |
 |
|
|
