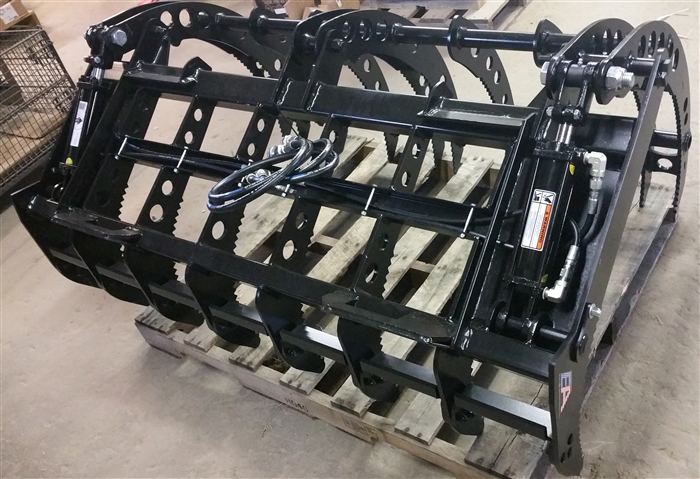

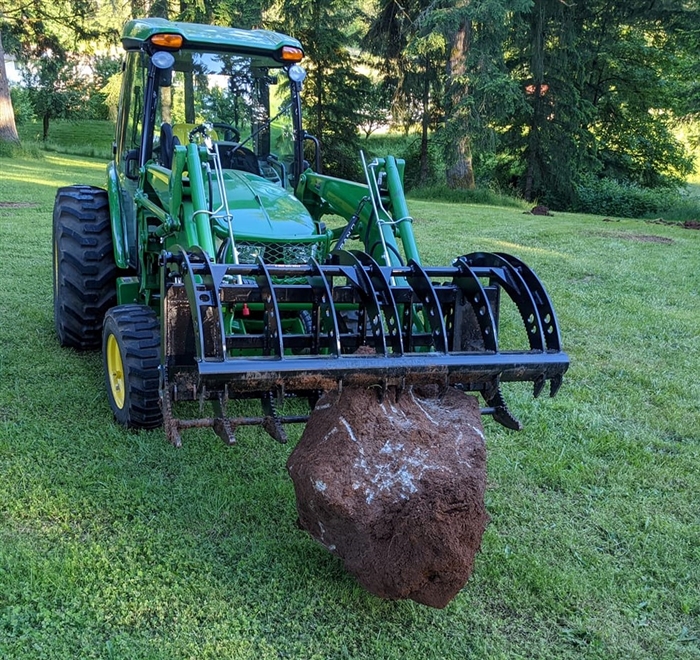

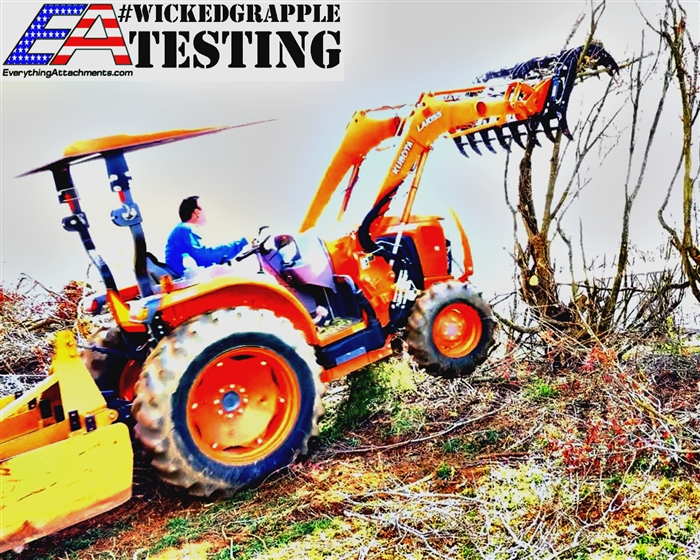

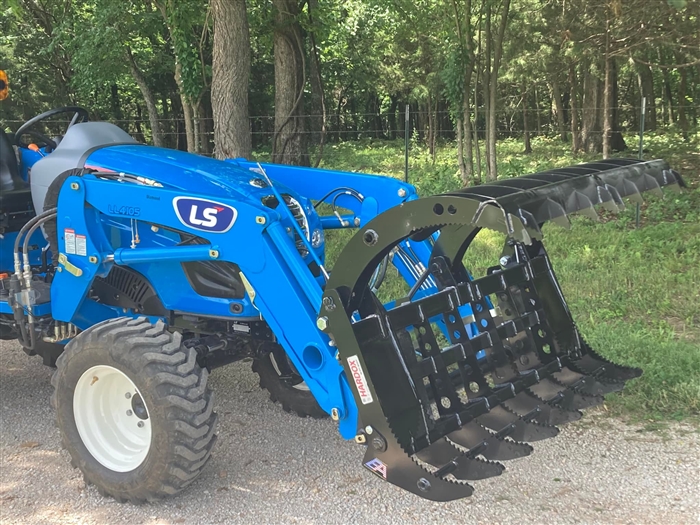

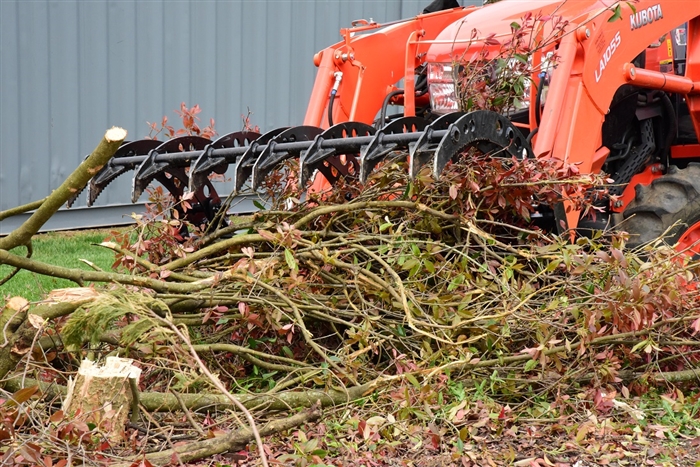

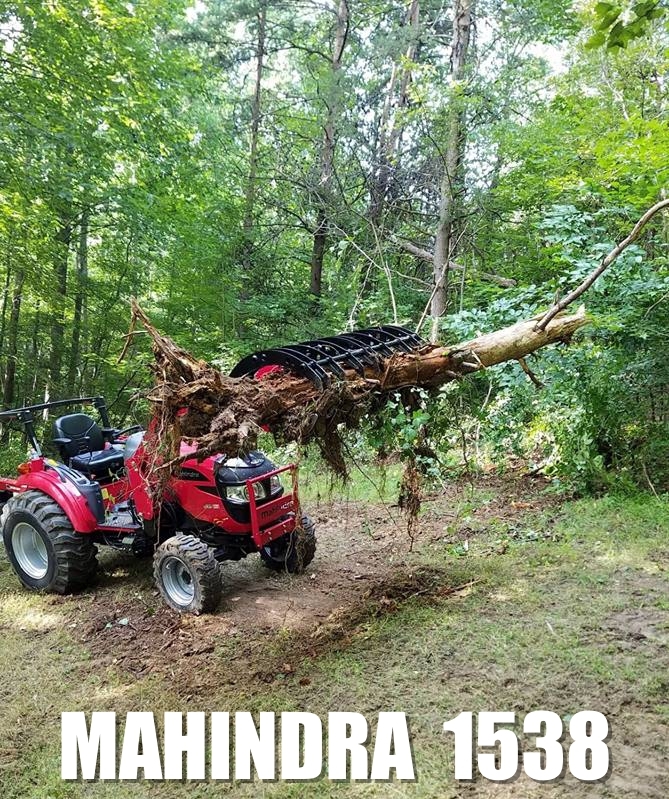

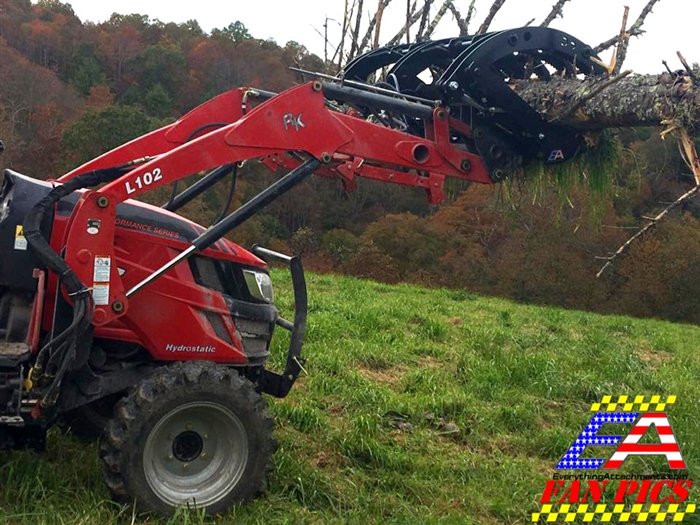

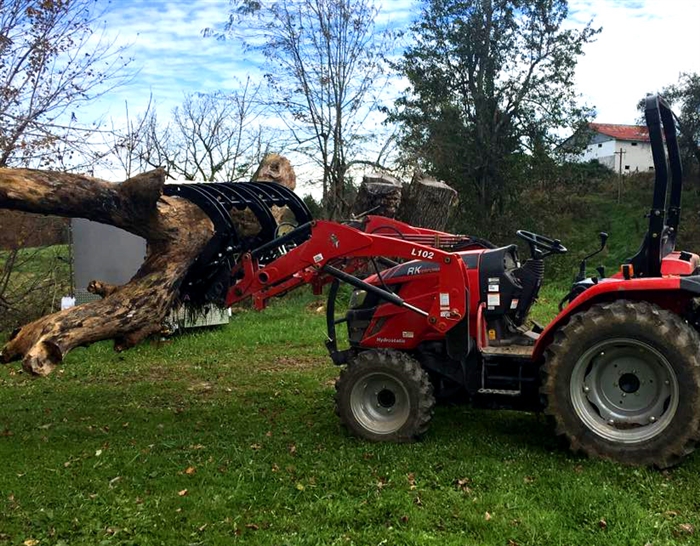

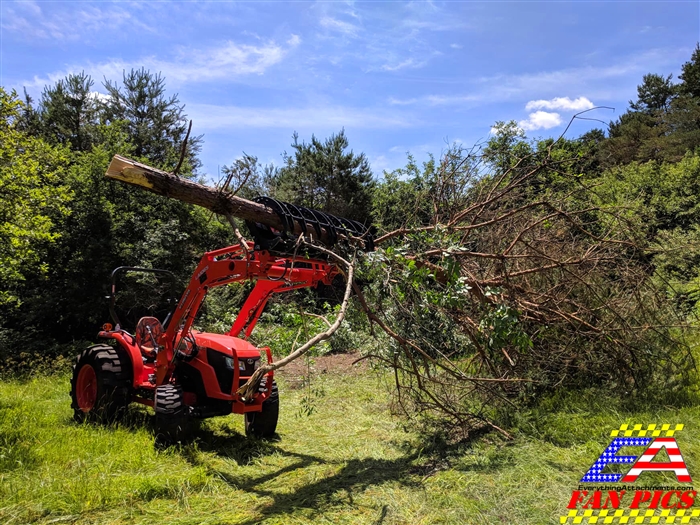

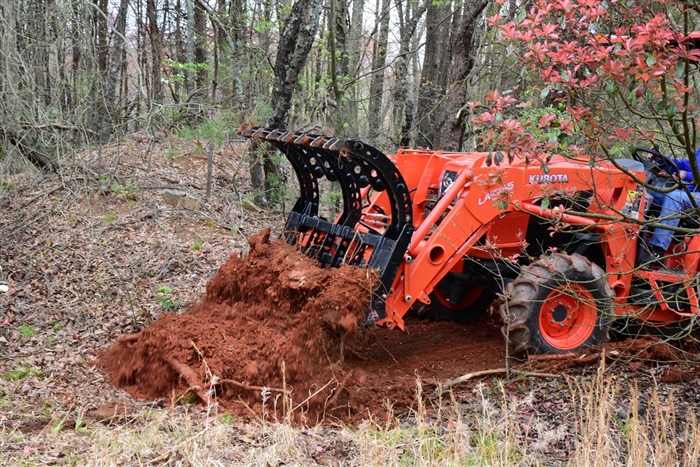

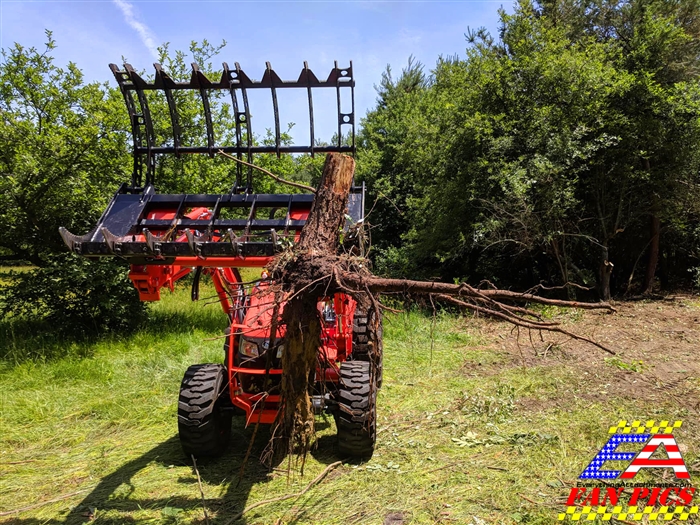

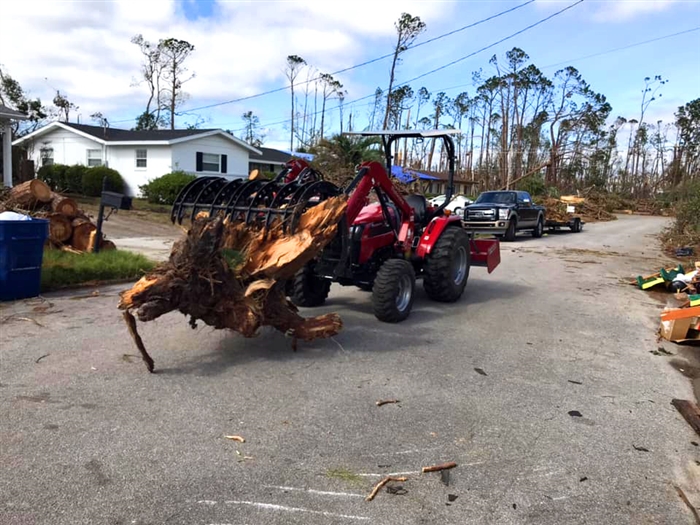

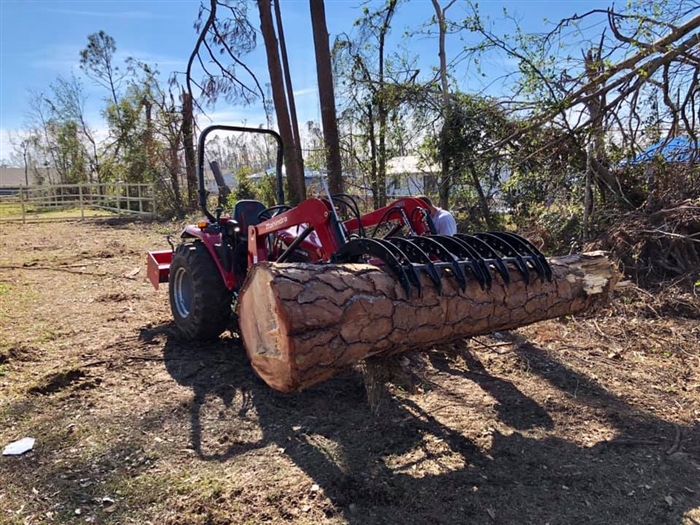

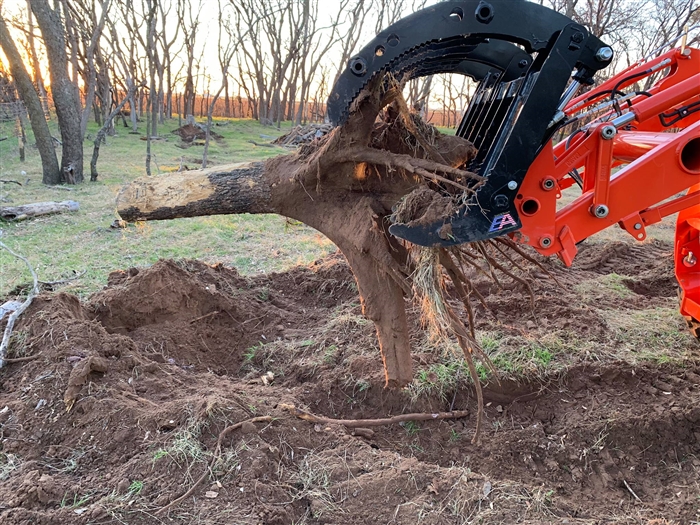

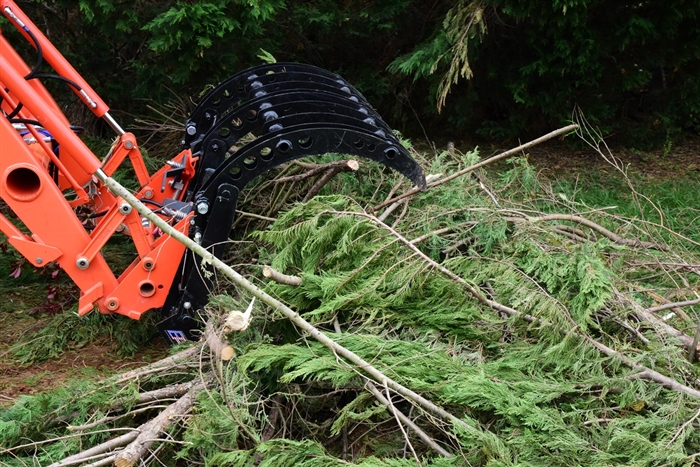

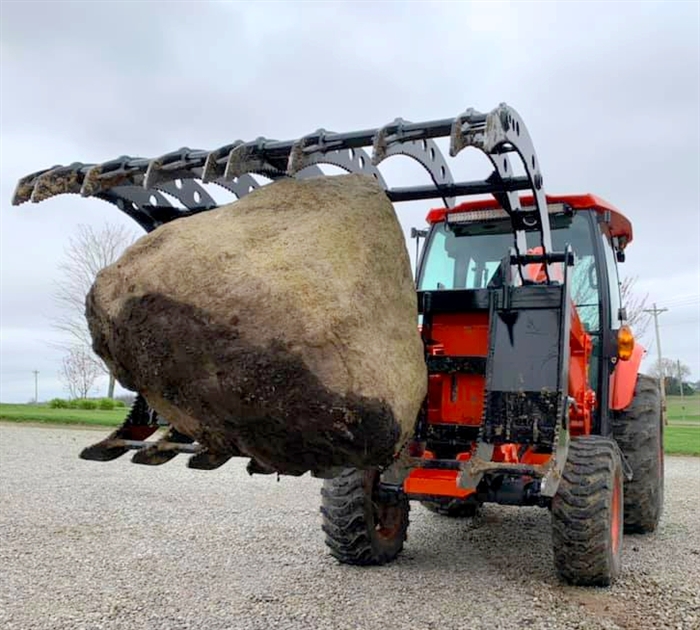

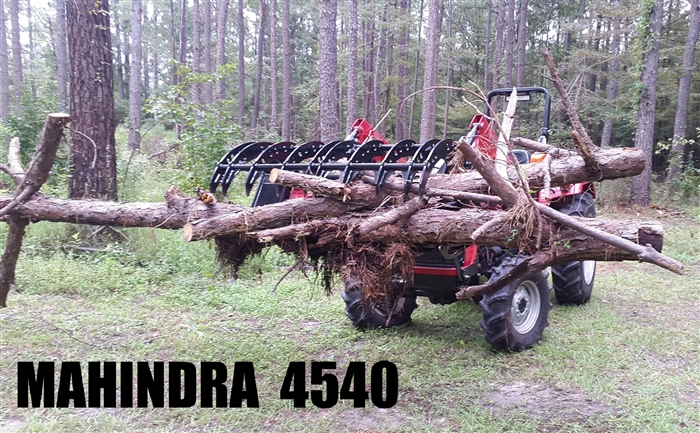

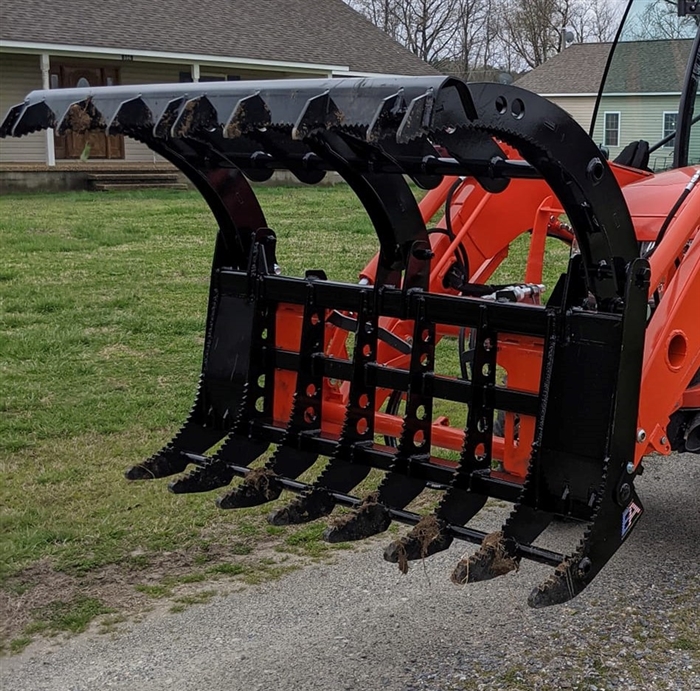

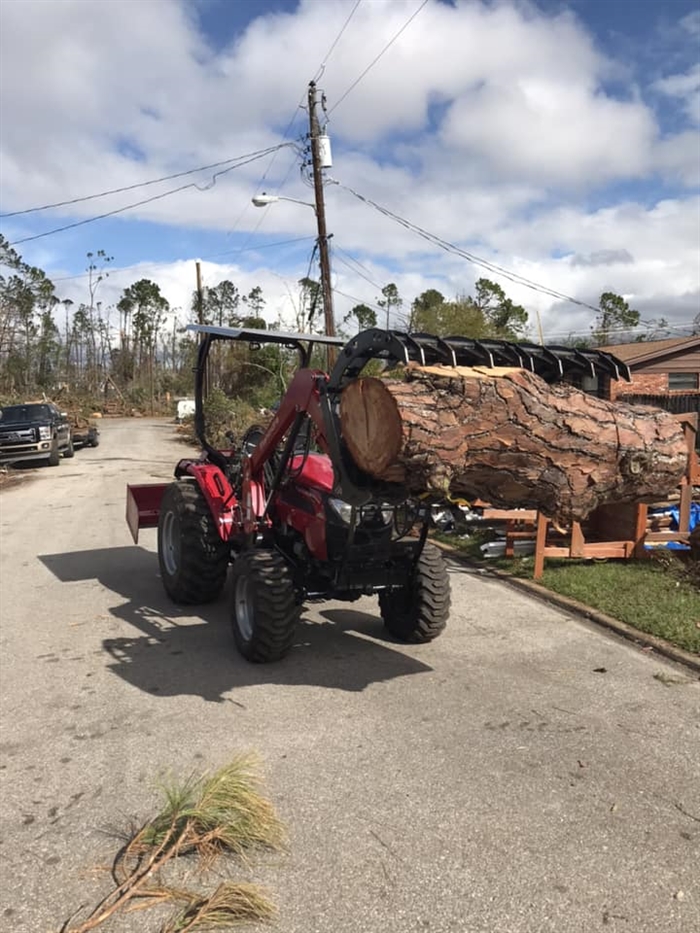

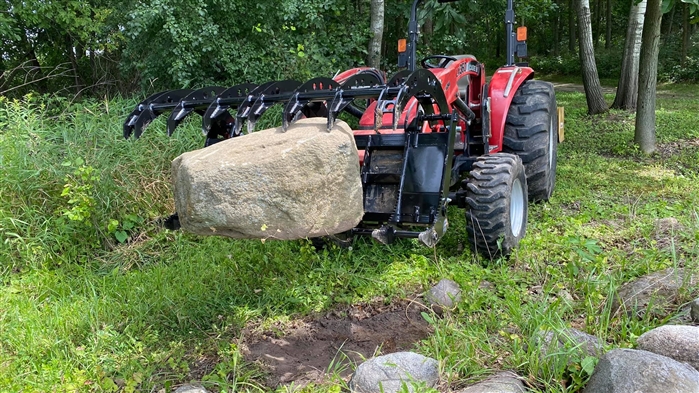

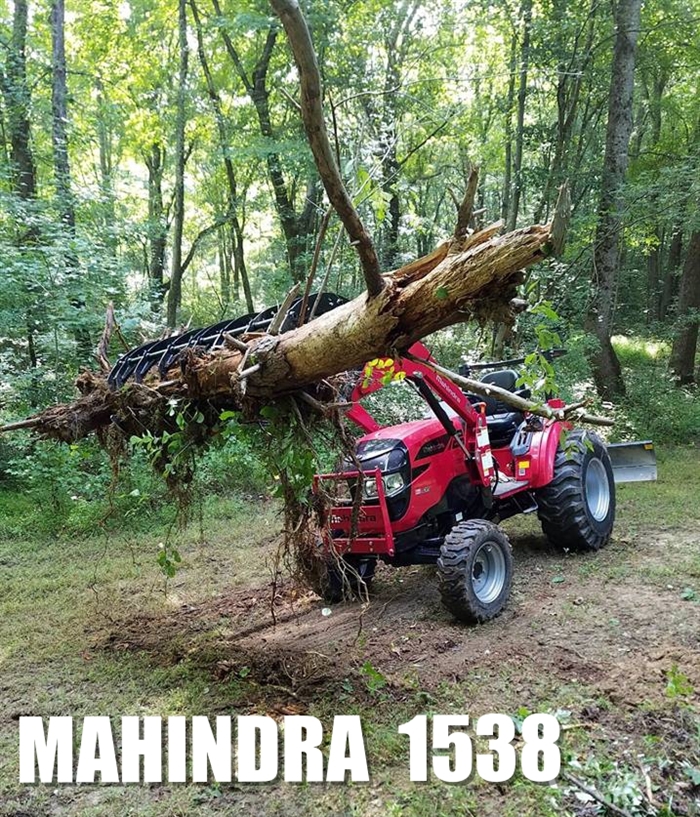

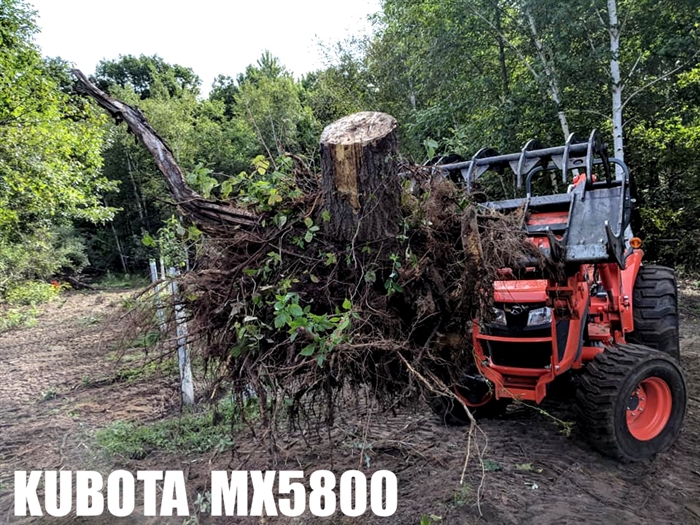

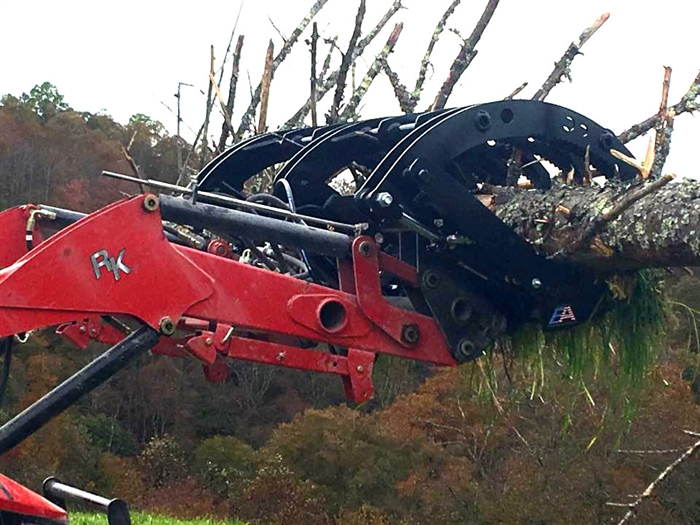

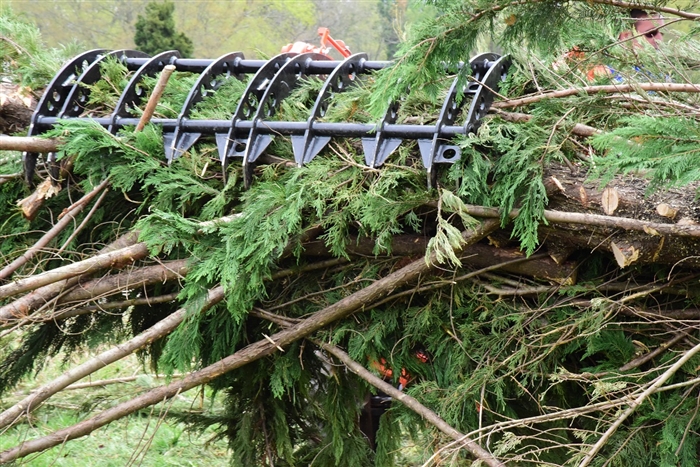

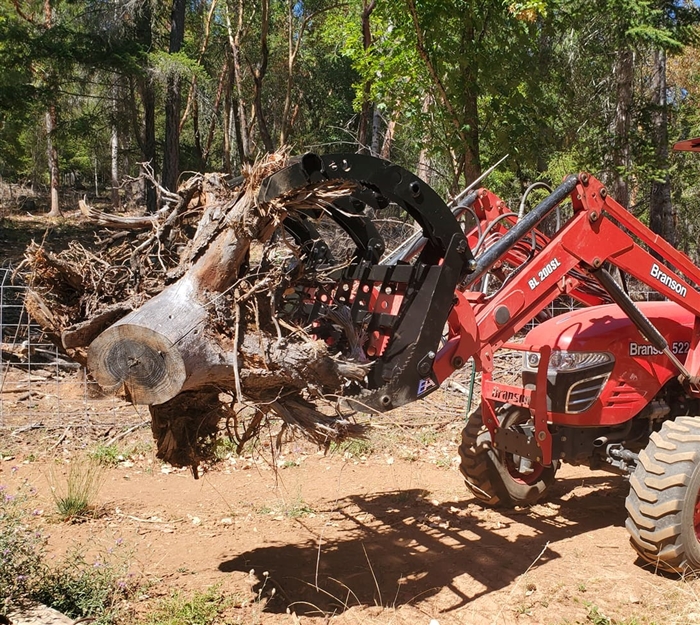

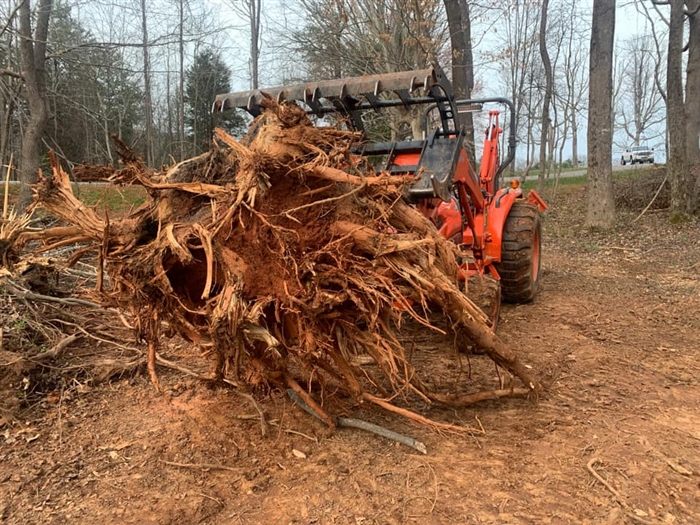

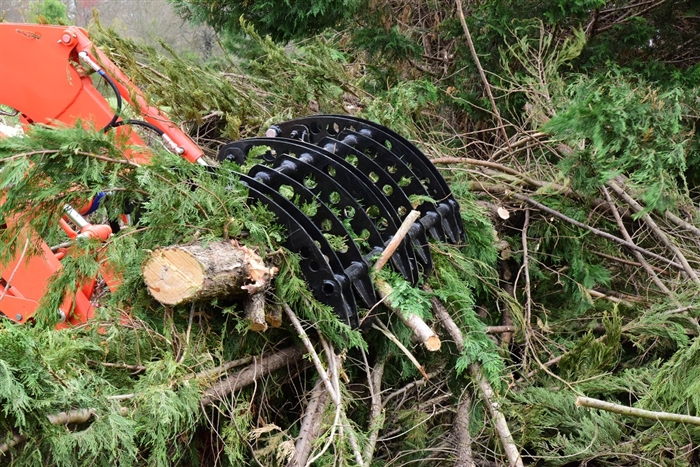

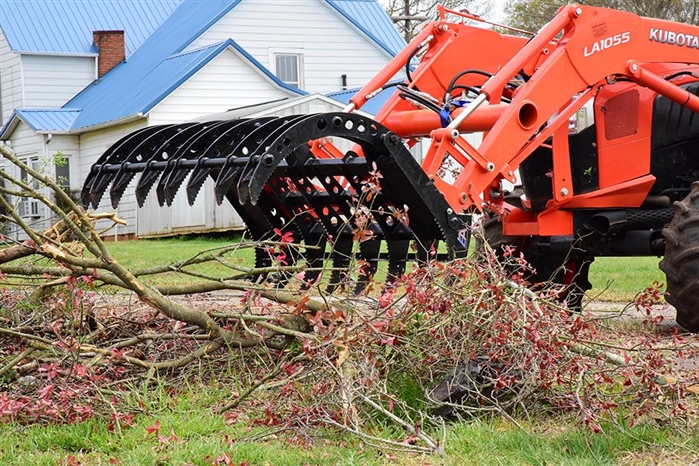

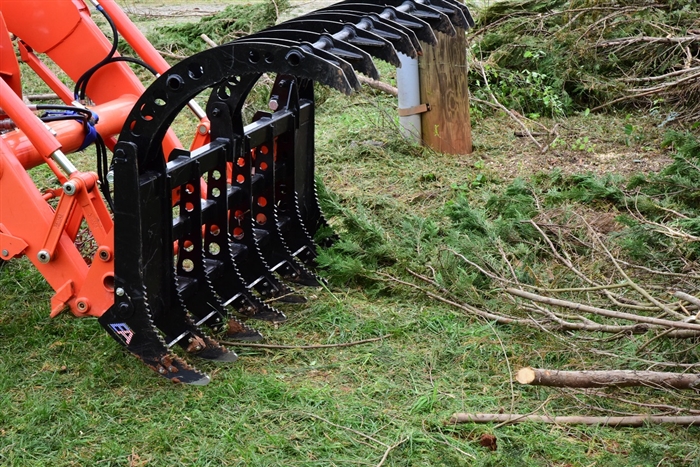

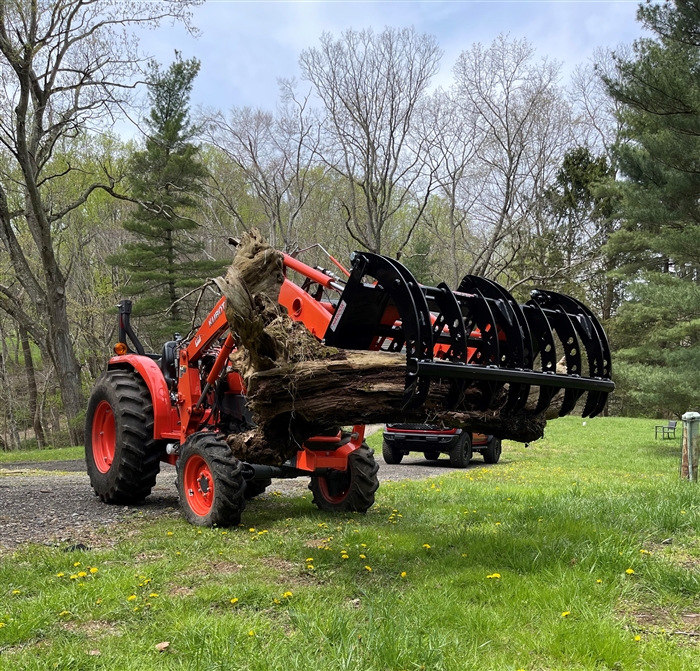

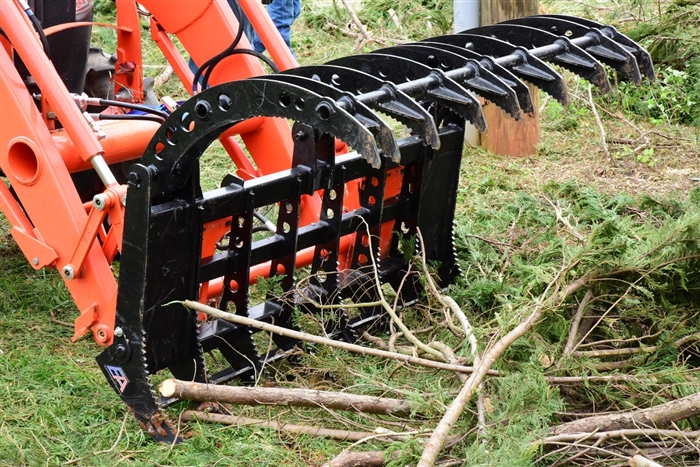

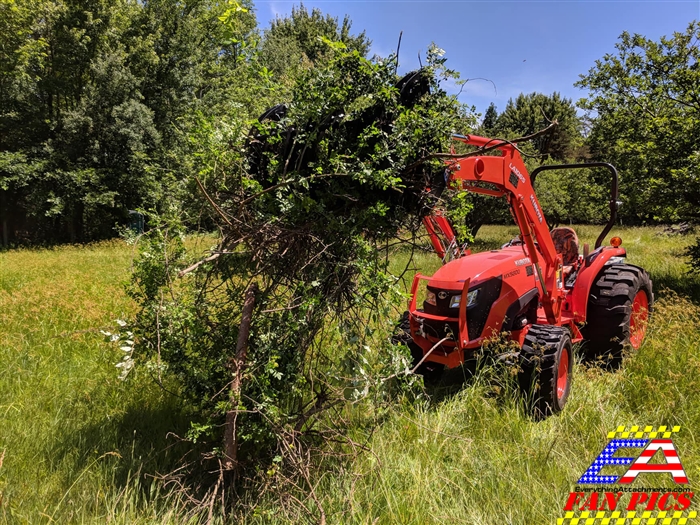

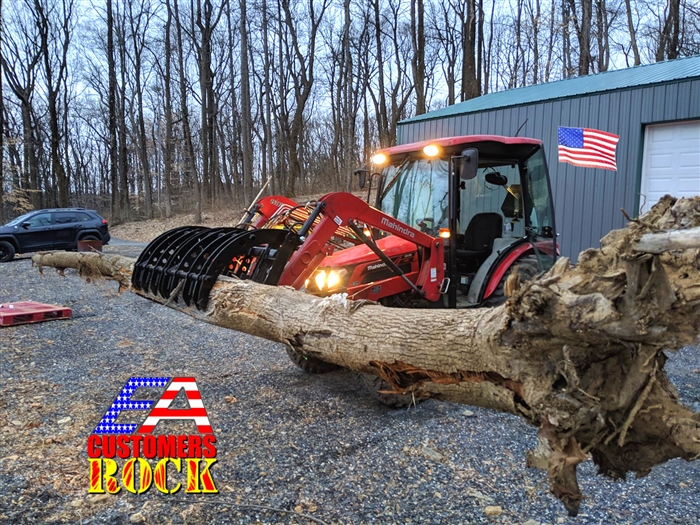

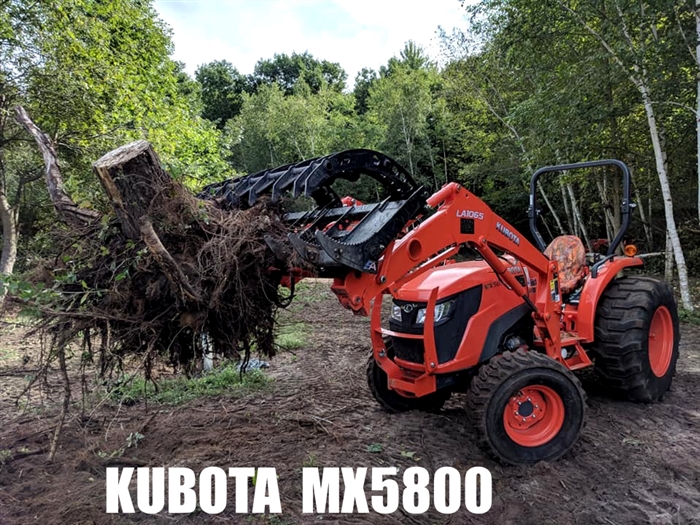

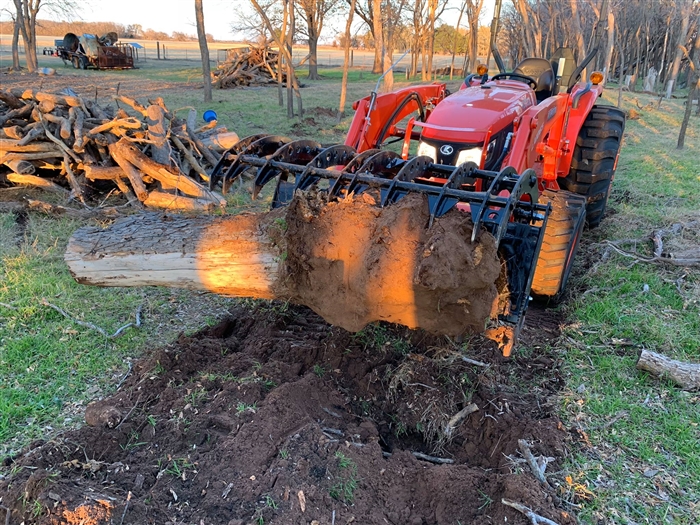

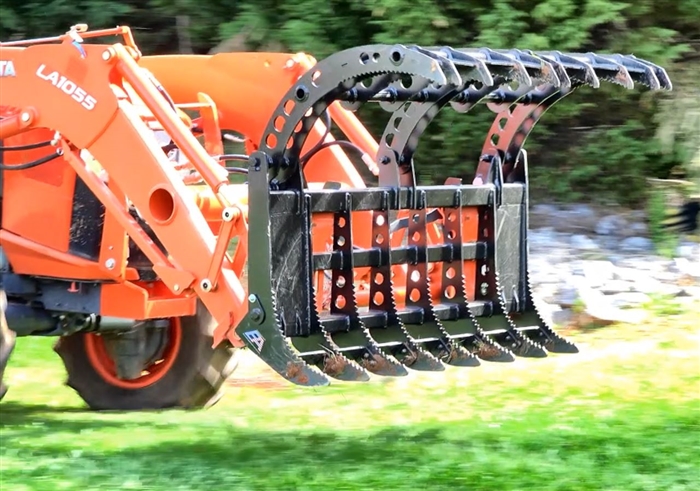

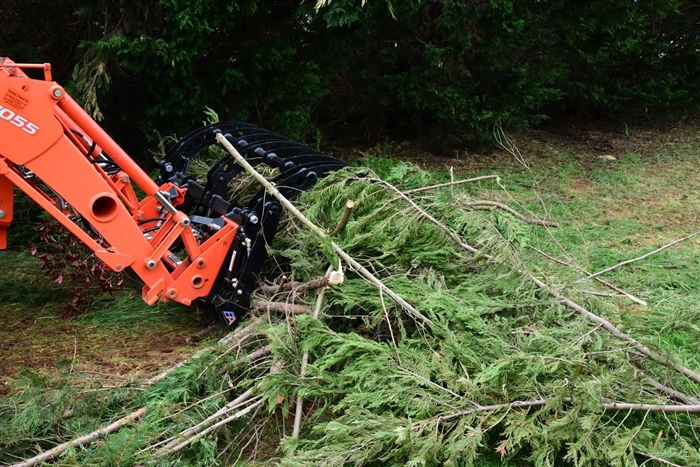

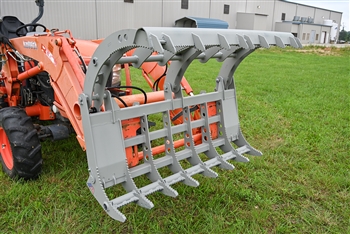

Brought on by Demand. Meet our Ever Popular Wicked 55's juiced up brother! Incredibly strong construction with solid welds and added support in all the right areas. Large bore cylinders create an impressive clamping force so you can efficiently hold rocks, logs, stumps and other debris for transport. We combine the best materials money can buy; a combo unlike anything else on the market. The serrated upper and lower, laser cut AR450 tines are serrated for incredible gripping and ripping ability.
Available with Universal Quick Attach(SSQA), John Deere Quick Attach is also available.
Ideal for Compact Tractors up to 65 Horsepower with a max ballasted weight of 7,500 pounds.
*NOTICE*

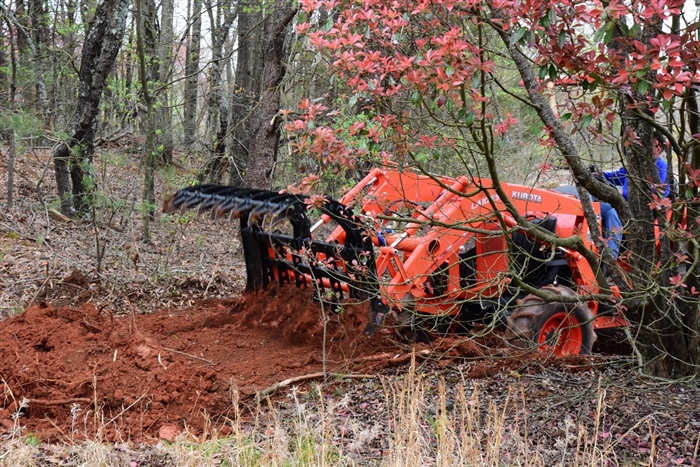

Root rake top lid is designed for raking loose material backwards and not intended to pry or pull embedded objects such as roots or stumps.
- 400 pound
weight.
- Proudly Made in the USA!

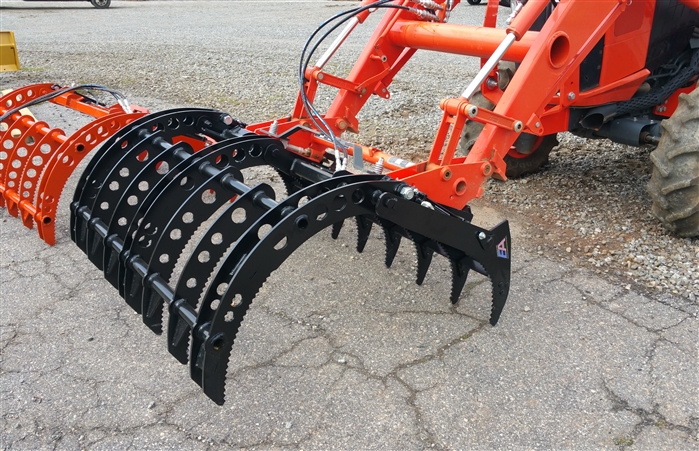

- Upper and lower Wicked
Tines are laser cut for precision.

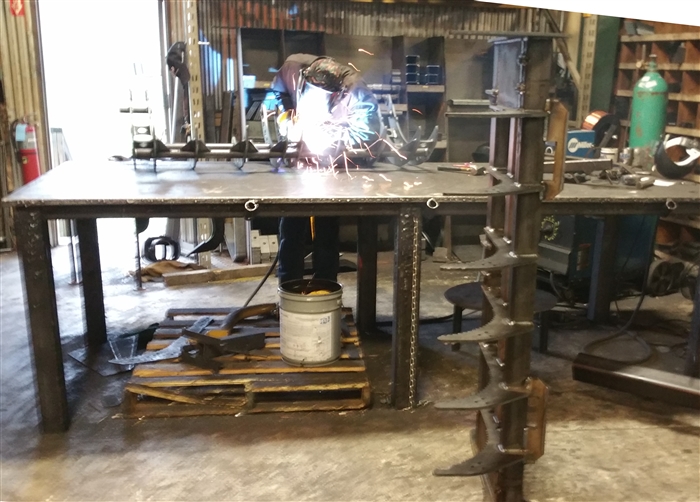

- Beefed up in all the right places, especially the hinge points and cylinder mounts.
- Dual Cylinder mounting angle and location produces incredible clamping force!
- Added 3rd hinge to the center for extreme lid rigidity when clamping and raking.
- Lid tines are doubled at all three hinge points for even more strength!

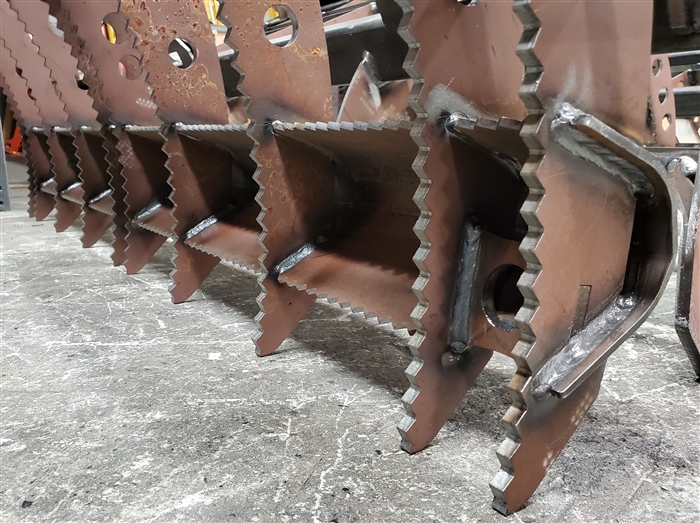

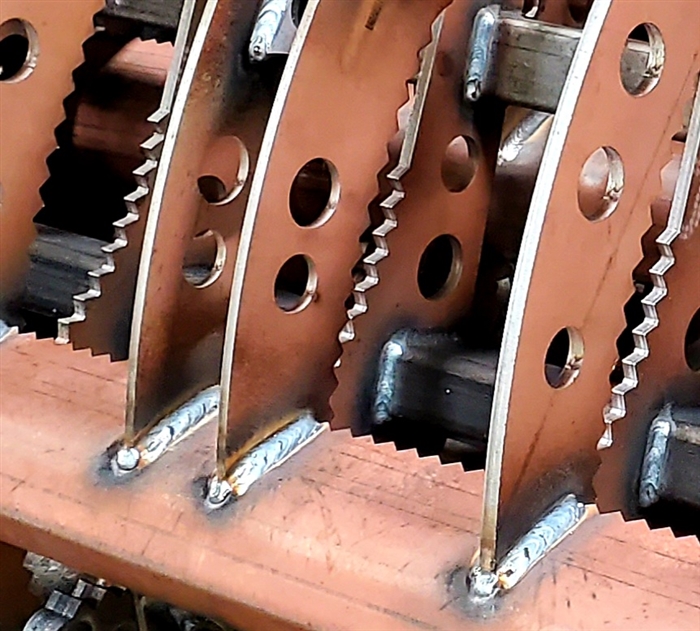

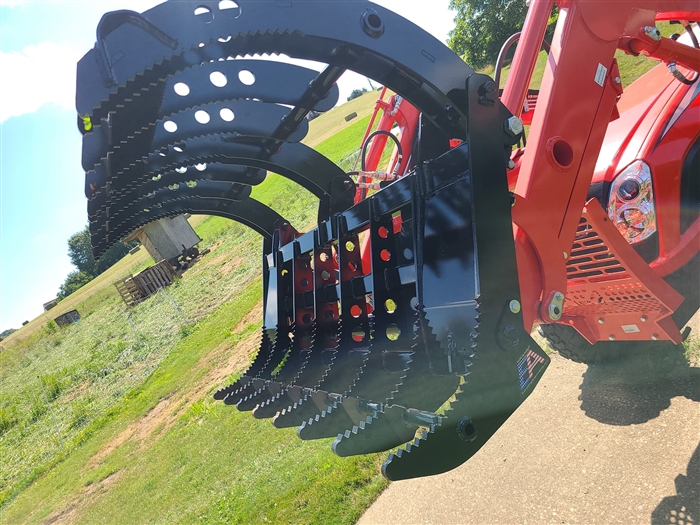

- Strong 3/8" AR450 tines are serrated for
gripping and ripping.
- AR450 Steel and DOM tubing is incredibly strong, rigid and durable.
- 8.25" lower tine spacing.

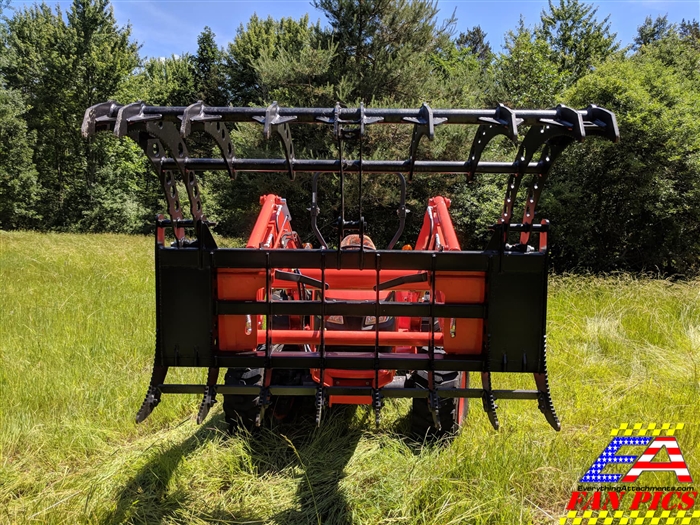

- 40" Extra Wide Lid Opening for grabbing large objects and piles!
- 2” bore x 6” stroke
cylinders for extreme gripping power!
- High stress pivot points are greasable for longevity.
- Free Shipping within 1,000 Miles!
- Universal Skid Steer Quick
Attach Mount is standard.
- Several options for hydraulic couplers
- Standard hose length is 50", which is intended to reach to the side of the loader torque tube.

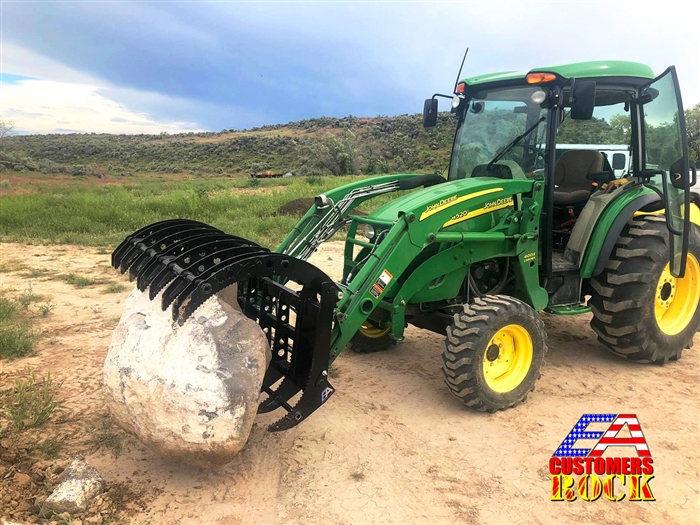

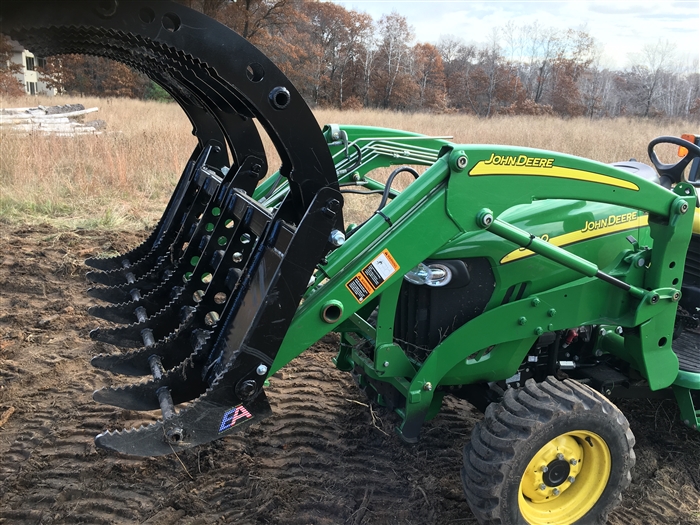

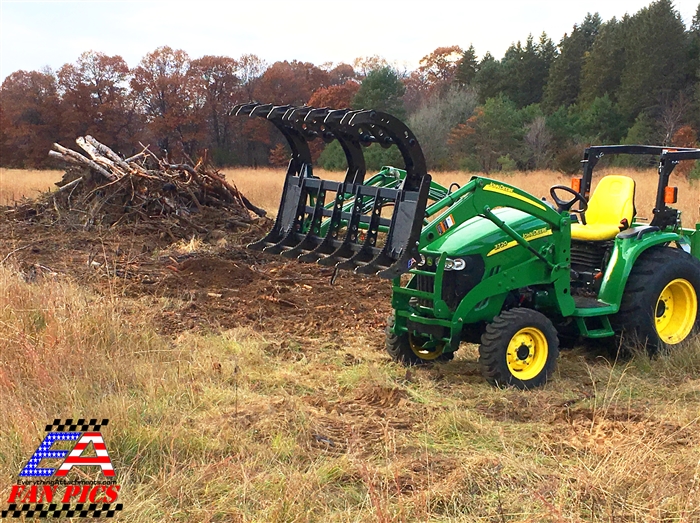

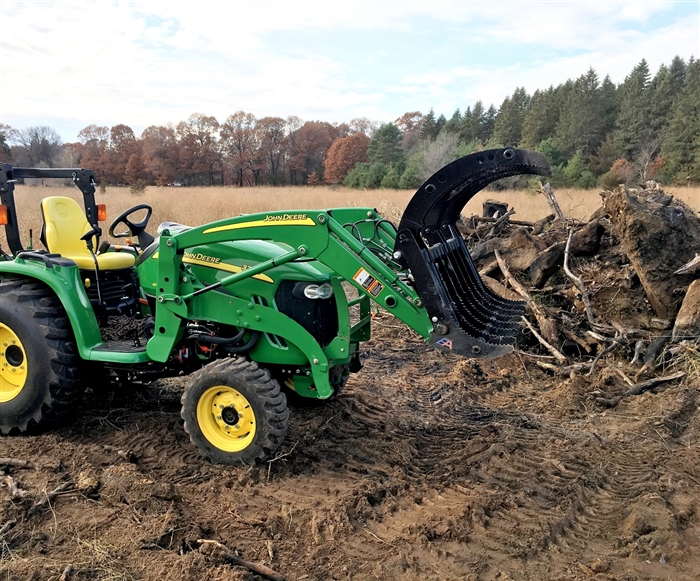

- Also available for ALL newer JOHN DEERE loaders including, but not limited to the 120R, D120, H120, H130, H160, D160, H165, D170, H180, 220R and older 200, 300, 400 Series
Front End Loaders with special JD quick attach hookup for $50.00...JD does have newer loaders which are the same as the ones listed.
- Let us know if you have a Kioti with a single lever universal quick attach so we can change hose routing.
- Grease prior to use.
*Notice* 8/6/2018 Instead of bolted lower runners, we will begin upgrading the lower tines with thick wall DOM tubing, which will serve as a depth gauge and add strength to lower tines. This will be more rigid and durable for rough applications.
*Primo Materials 101*

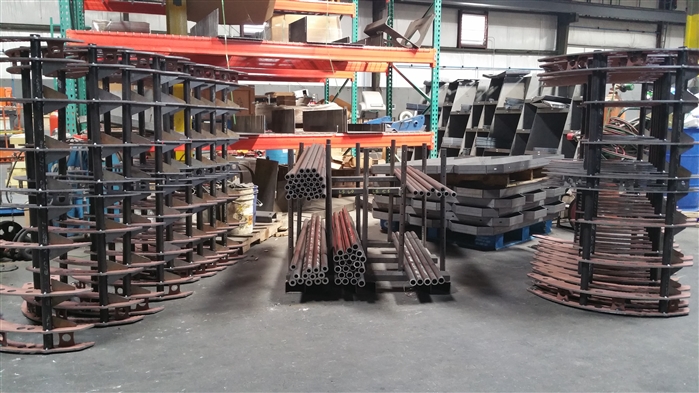

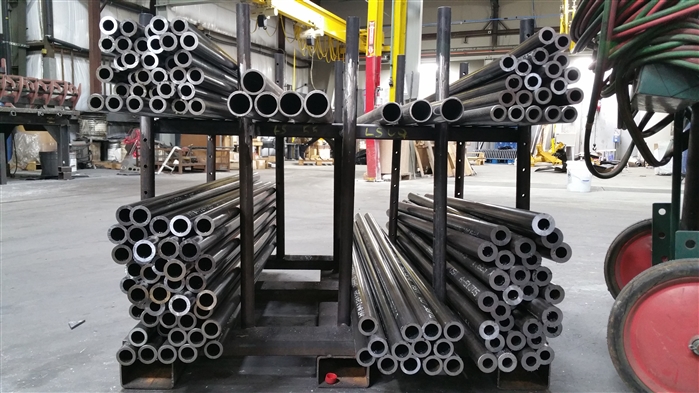

DOM, or Drawn Over Mandrel, tubing is made from a cold-drawn electrical resistance welded tube that is drawn through a die and over a mandrel to create dimensional accuracy, dependable weld integrity and an excellent surface finish(which we manually scuff so the paint will hang on). DOM has high tensile and yield strength, so It is generally chosen over welded tube where high pressure or large workloads are needed such as the manufacturing of race cars and motorcycle frames.
*JOHN DEERE QUICK ATTACH MODEL IN STOCK FOR FAST SHIPPING*
***NOTICE***NOTICE***NOTICE***NOTICE***NOTICE***
Product Code: ETA-60-WRRG
|
|
|
|
|
|
 |
|
 |
|
|
