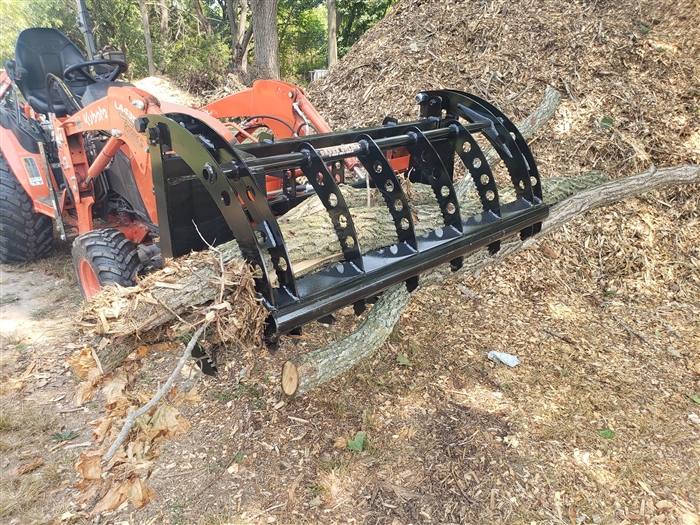

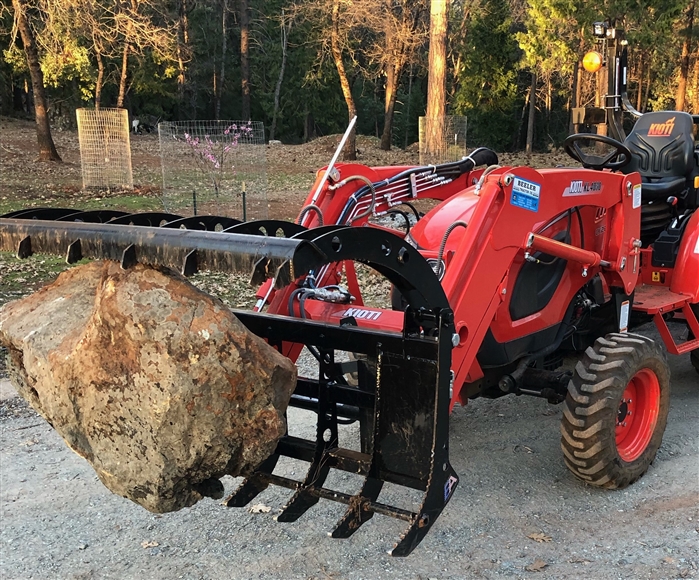

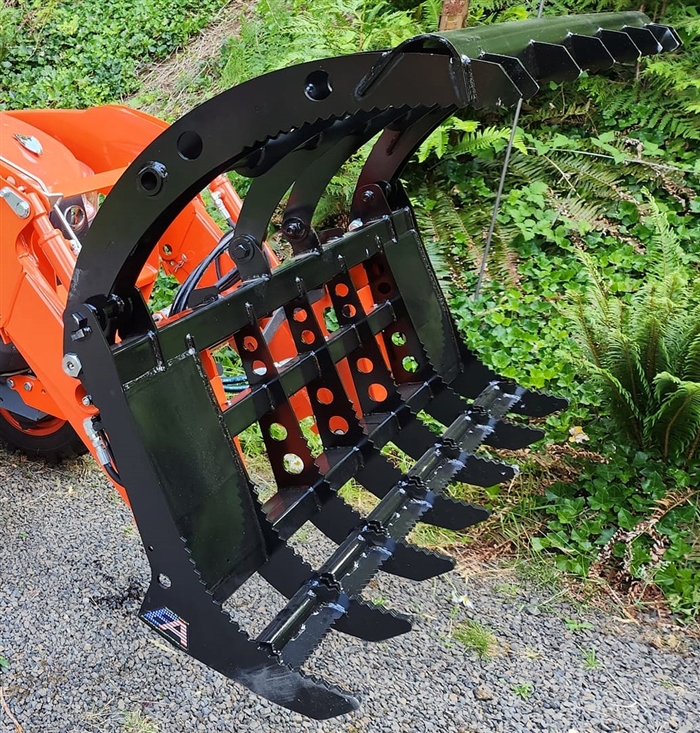

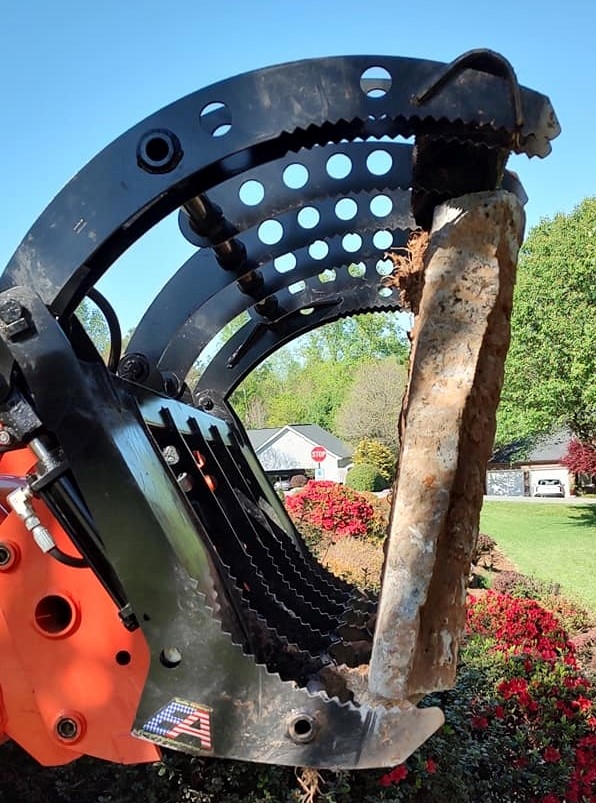

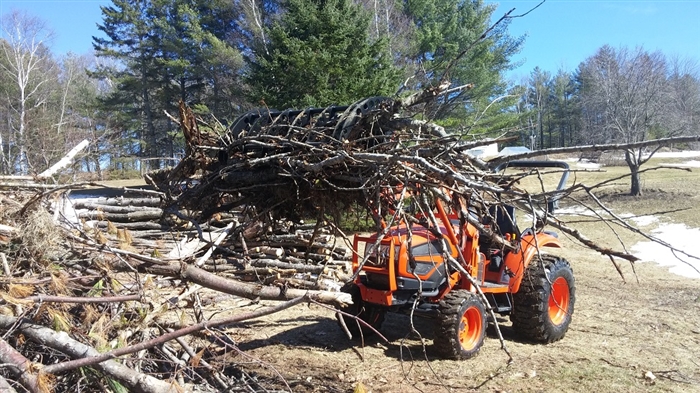

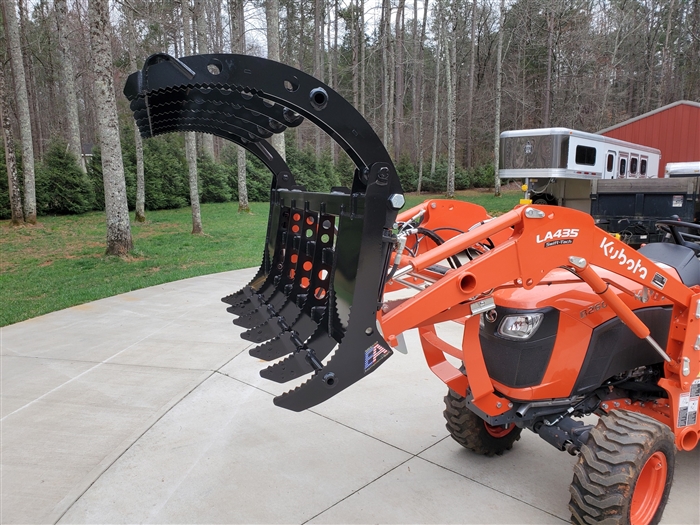

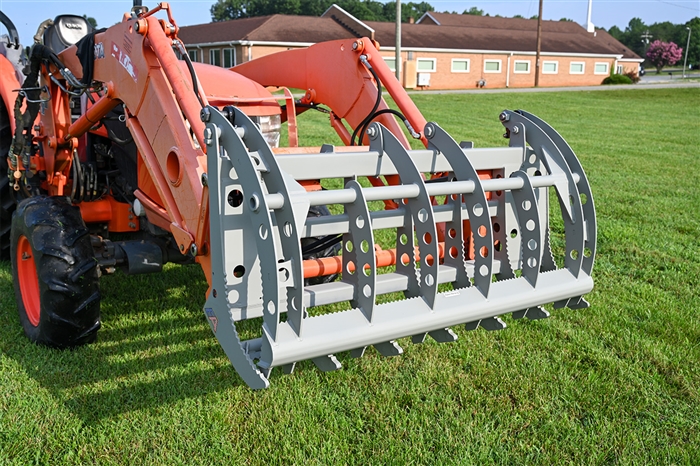

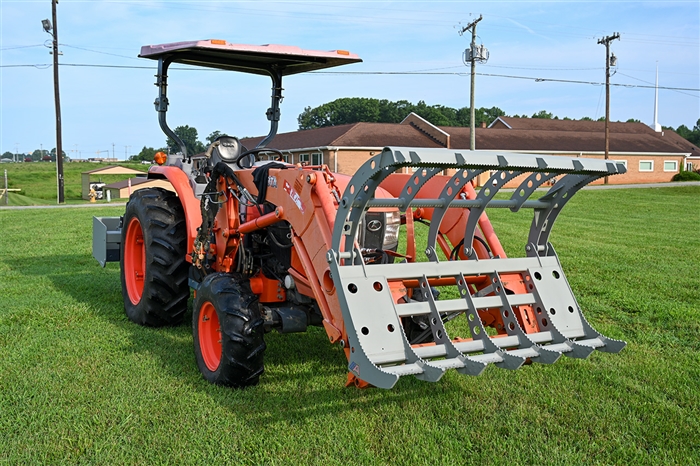

EA’s Newest Grapple Rake is a Breakthrough at just over 200 pounds. This is BY FAR the BEST strength to weight ratio in the industry. Incredibly strong construction with solid welds and added support in all the right areas gave us the confidence to test it on our 60HP Kubota L6060. We combine the best materials money can buy; a combo unlike anything else on the market. Large bore cylinders create an impressive clamping force so you can efficiently hold rocks, logs, stumps and other debris for transport. The serrated upper and lower, laser cut AR450 steel tines are serrated for incredible gripping and ripping ability. Available with Universal Quick Attach(SSQA), John Deere Quick Attach and some other pin on loader mounts. Rated for compact tractors under 40 horsepower.
*NOTICE*
If you want to push or pry trees/stumps/roots/boulders and other solid and/or embedded objects, do it with the lower tines.
Root rake top lid is designed for raking loose material backwards. With the new wickeder design, you can even pull or rake harder than before, but it is not meant to be pushed on as in pushing on trees with the lid. The new design allows it to have 20% more pulling and raking force, but if pushed on it is possible to tweak the lid. We have had a few out of 1,000 that have been tweaked, and after receiving pictures of the tweaked lids, it is clear they are using the lid to push trees which is unintended use. The warranty remains in 100% effect for pulling and clamping, but not pushing on trees or boulders. Here are a few pictures showing lids that we have replaced from pushing on trees.
- Ultra Light 239 pound
weight.
- Proudly Made in the USA!

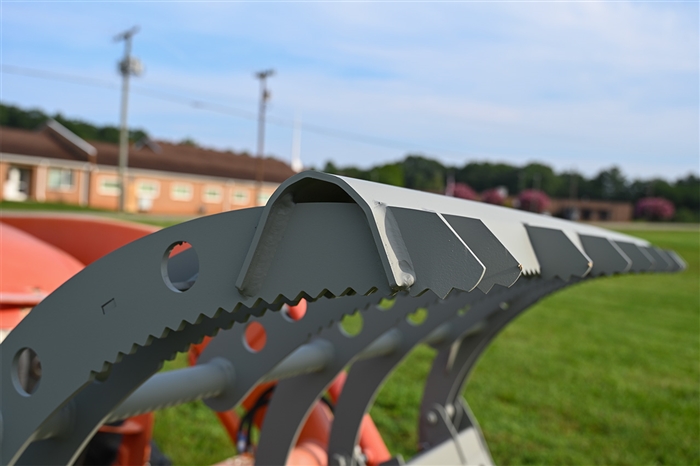

- Upper and lower Wicked
Tines are laser cut for precision.

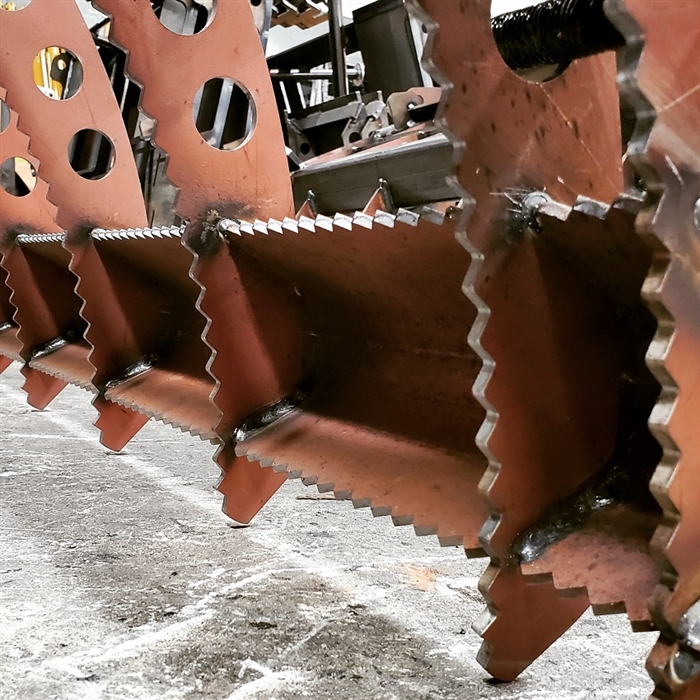

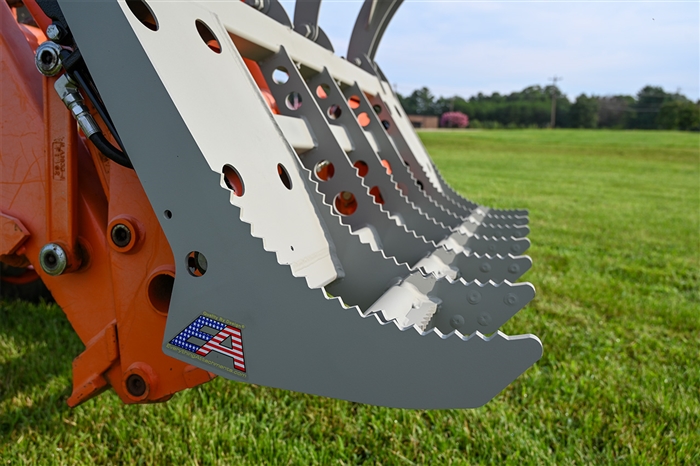

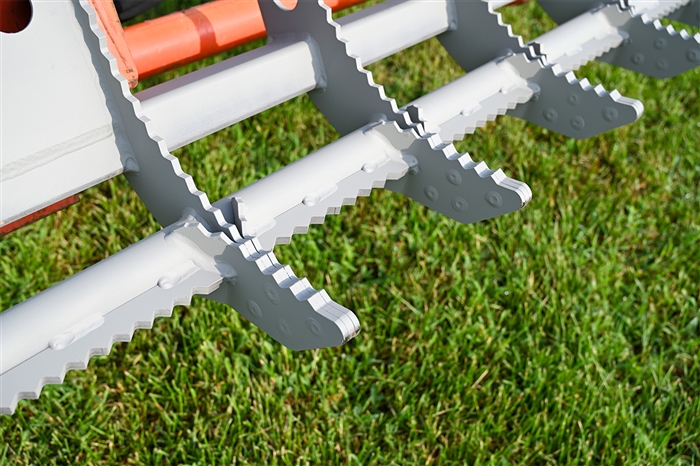

- Strong 1/4" AR450 steel tines are serrated for
gripping and ripping.
- AR450 Steel and DOM tubing is incredibly strong, rigid and durable.
- 9" tine spacing.

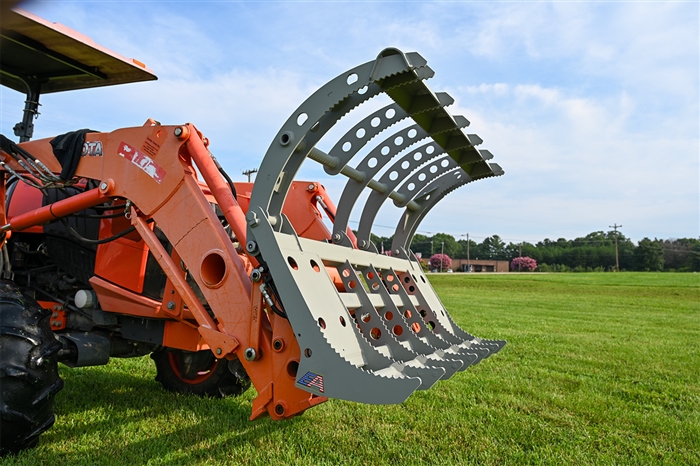

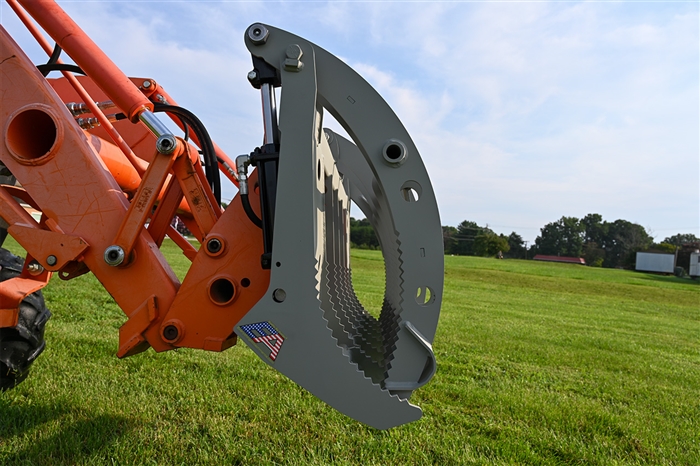

- 51” wide lid opens up to a
full 36”.

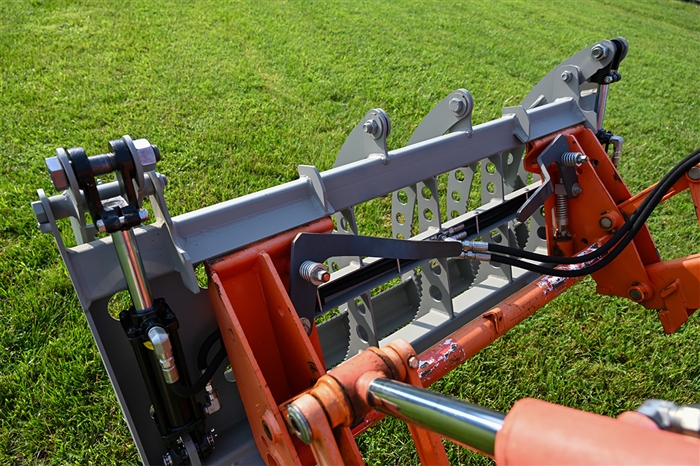

- 2” bore x 5” stroke
cylinders for extreme gripping power!

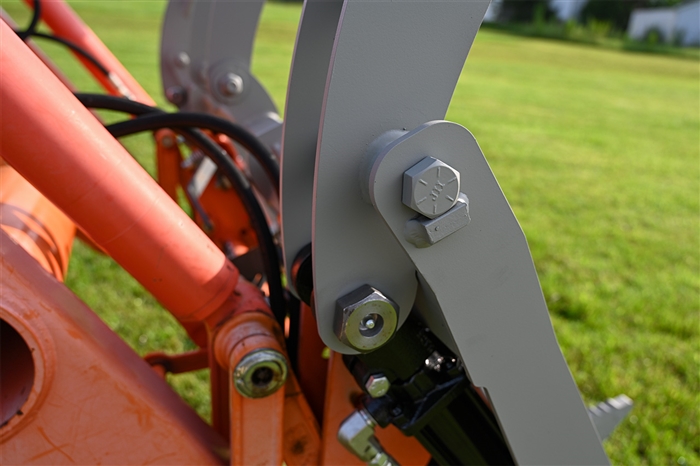

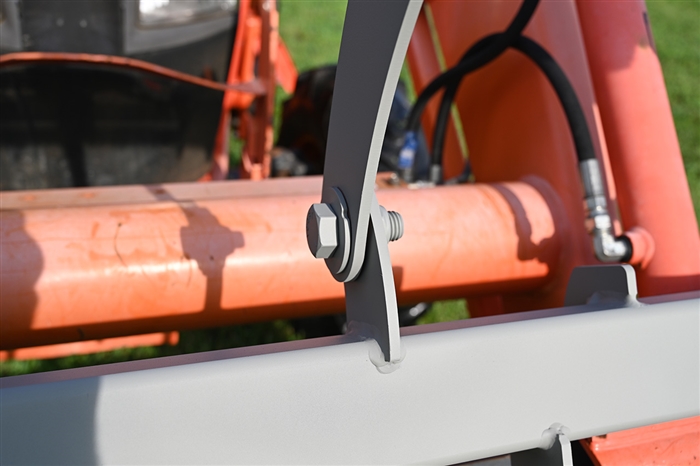

- Greasable lid hinges and
cylinder pins for longevity.
- Free Shipping within 1,000 Miles!
- Universal Skid Steer Quick
Attach Mount is standard.

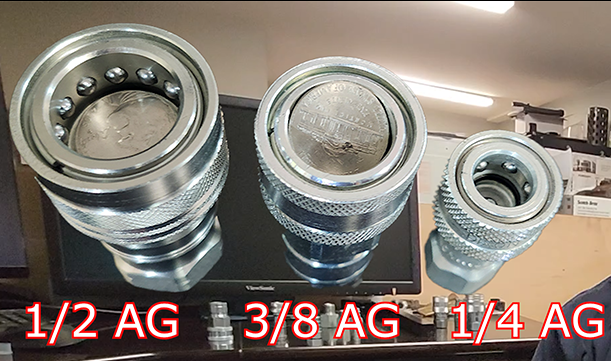

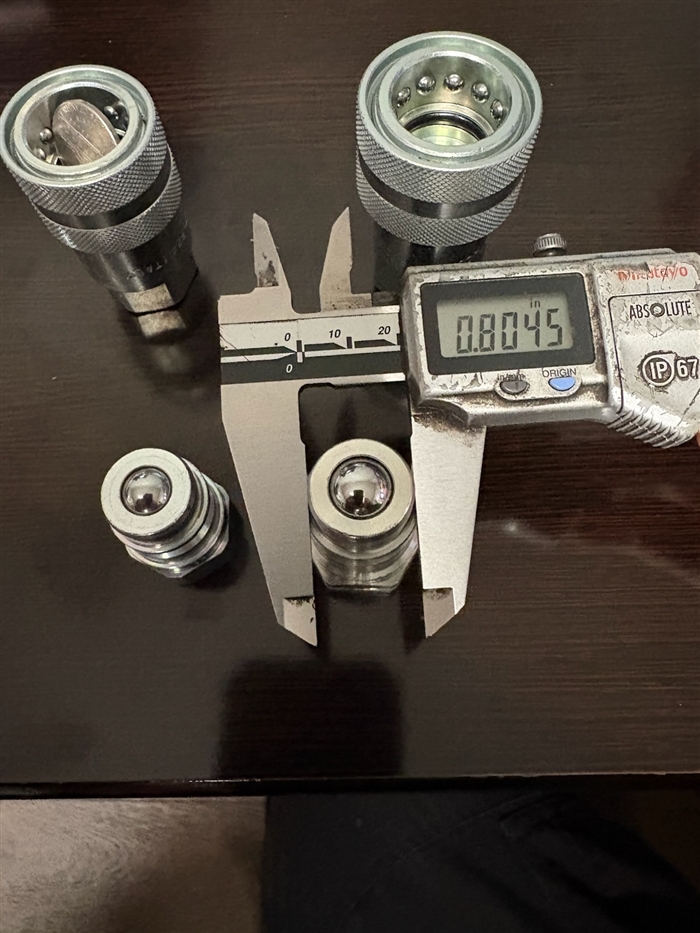

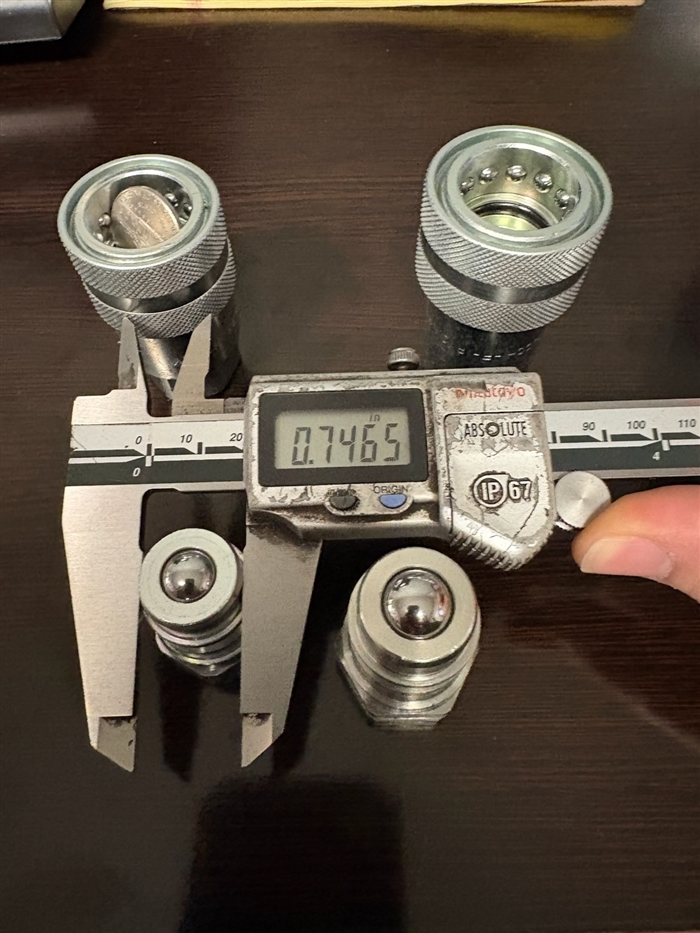

- Several options for hydraulic couplers
- Standard hose length is 46".

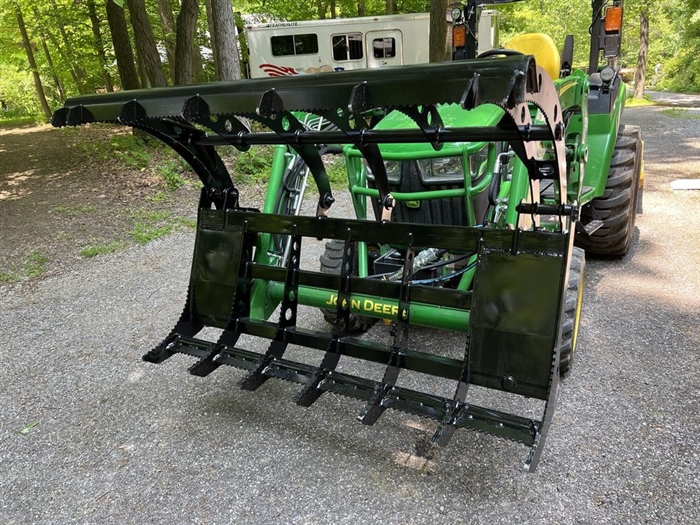

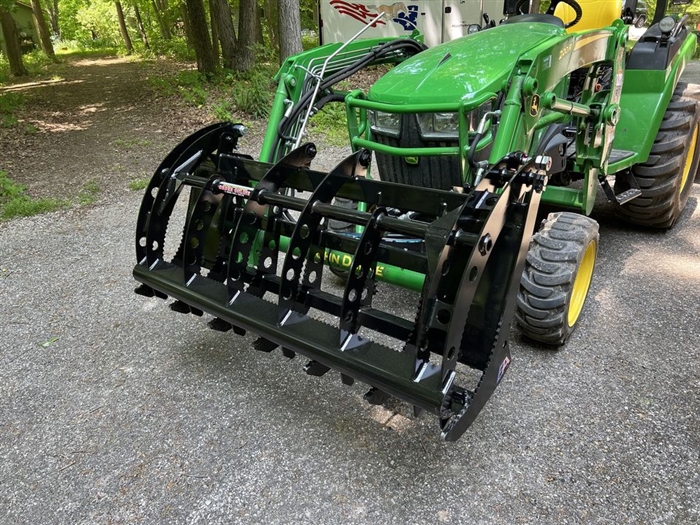

- Also available for ALL newer JOHN DEERE loaders including, but not limited to the 120R, D120, H120, H130, H160, D160, H165, D170, H180, 220R and older 200, 300, 400 Series
Front End Loaders with special JD quick attach hookup for $50.00...JD does have newer loaders which are the same as the ones listed.
- Kubota B series pin on mounts LA304, LA364, LA402, LA504, LA534, LA271, LA272, LA301, LA302 and some other loaders.
- CALL to see if a custom
mount is offered for your loader.
- Let us know if you have a Kioti with a single lever universal quick attach so we can change hose routing.
- Grease prior to use.
*Notice* 8/6/2018 Instead of bolted lower runners, we will begin upgrading the lower tines with thick wall DOM tubing, which will serve as a depth gauge and add strength to lower tines. This will be more rigid and durable for rough applications.
*Primo Materials 101*
DOM, or Drawn Over Mandrel, tubing is made
from a cold-drawn electrical resistance welded tube that is drawn
through a die and over a mandrel to create dimensional accuracy,
dependable weld integrity and an excellent surface finish(which we
manually scuff so the paint will hang on). DOM has high tensile and
yield strength, so It is generally chosen over welded tube where high
pressure or large workloads are needed such as the manufacturing of race
cars and motorcycle frames.
*NEW Enhanced, Laminated Lower Tine Design*
**Strongest in the Industry, by a LONG Shot**
If you need a 3rd function kit for your tractor, check out the custom kit we offer for many tractors here: WR Long 3rd Function Kit
Product Code: ETA-55-WRRG
|
|
|
|
|
|
 |
|
 |
|
|
