Why KILL your lifting ability with an 800-900+ pound grapple when this 660 pound BEAST can be yours?

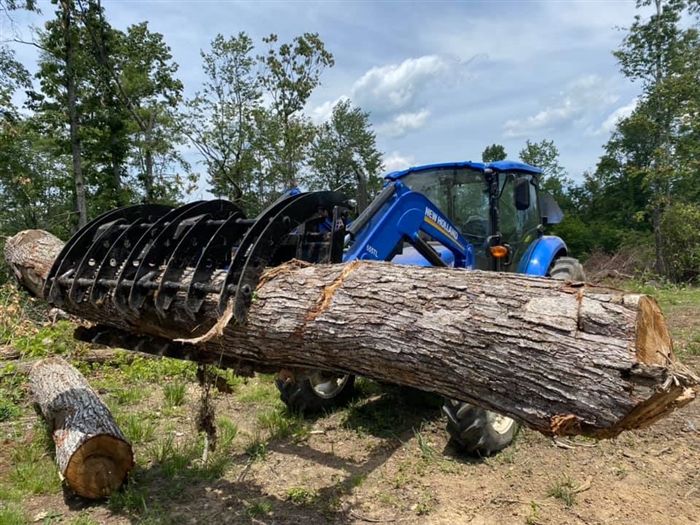

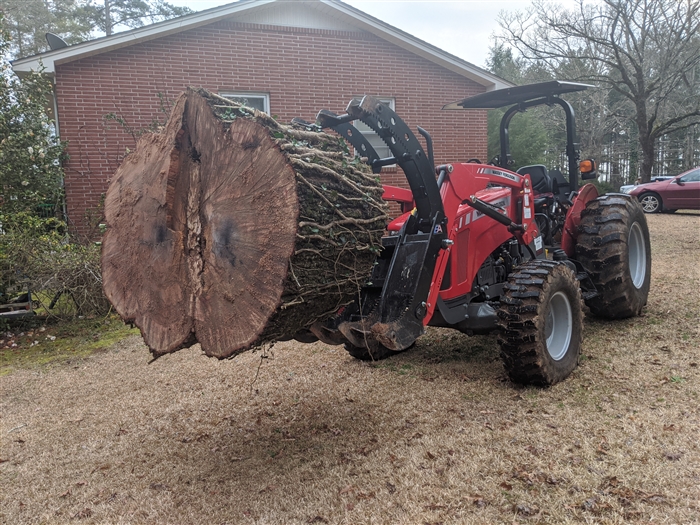

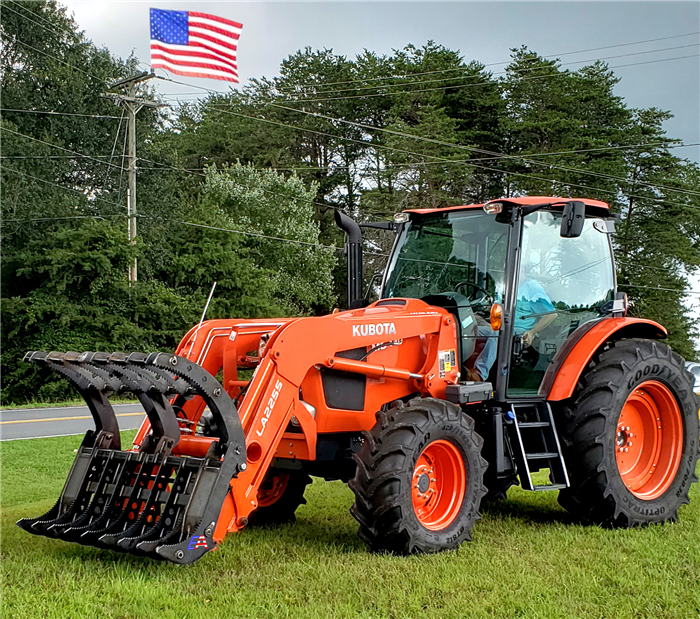

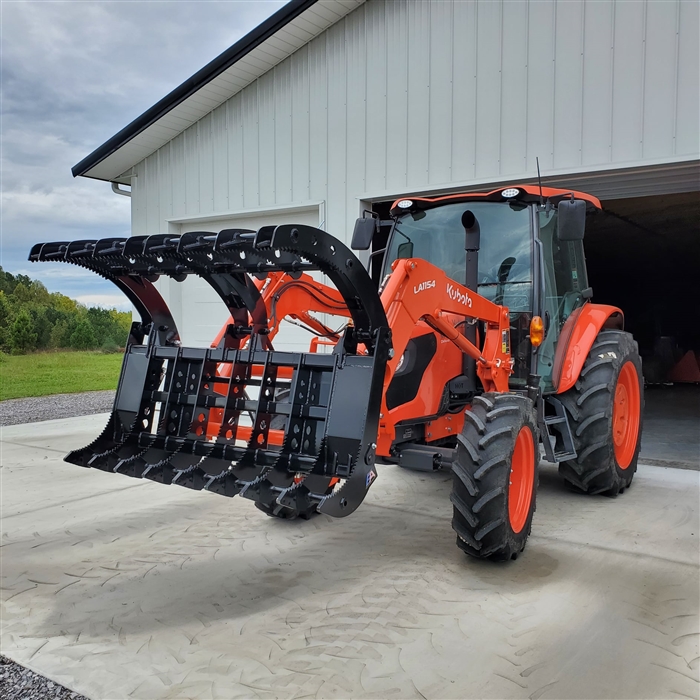

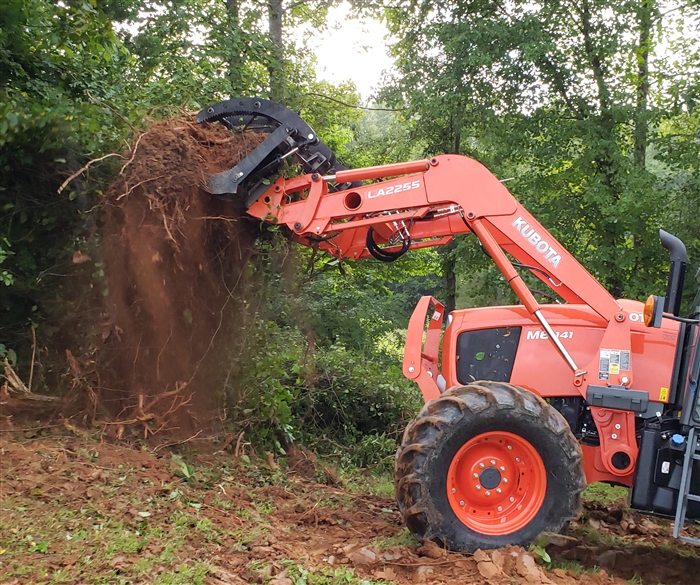

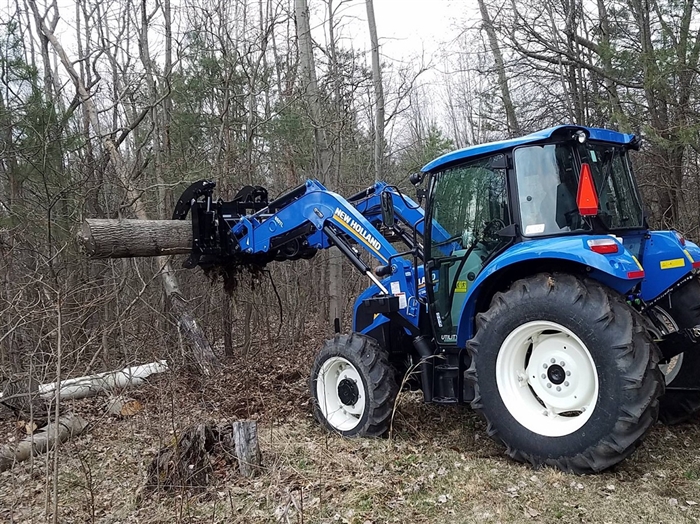

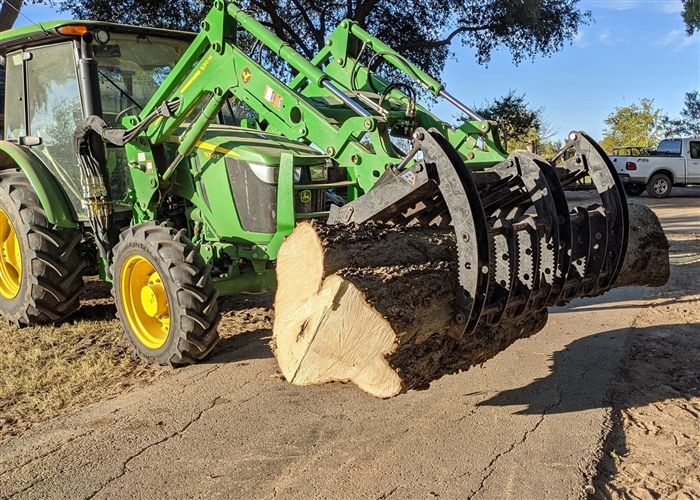

Brought on by Strong Demand from Utility Tractor Owners. Kubota M Series owners(M7060 is SO popular), John Deere 5000 series(5075e likewise), Kioti RX Series, LS XU Series, Mahindra M Power, New Holland T4.75...HERE IS THE ANSWER!! The Big King of the Wicked Grapple Rake Family has arrived on the scene and competition is in the rear view. Incredibly Strong AR450 construction joins forces with other premium materials such as thick walled DOM tubing, which is never found on a tractor grapple. Solid, continuous welds and added support in all the right areas. Large bore cylinders create an impressive clamping force so you can efficiently hold rocks, logs, stumps and other debris for transport. The extremely thick walled lower tube serves as a depth gauge, which allows you to push the tines through the ground to remove roots and vines. The serrated upper and lower, laser cut AR450 tines are serrated for incredible gripping and ripping ability. Available with Universal Quick Attach(SSQA), John Deere Quick Attach and Euro/Global mounts are also available. Ideal for Utility Tractors up to 100 Horsepower.
*NOTICE*
Root rake top lid is designed for raking loose material backwards and not intended to pry or pull embedded objects such as roots or stumps.
- 660 pound
weight, so it provides an Awesome strength to weight ratio.
- Proudly Made in the USA!
- 1/2" and 3/8" thick AR450 Steel Construction.
- 1 7/8" Schedule 120 DOM round tubing with almost 1/2" of wall thickness. On a tractor grapple??
- AR450 Steel and thick wall DOM tubing is incredibly strong, rigid and durable.
- 3" x 3" square tubing has 3/8" wall thickness. Thickest 3x3 available!

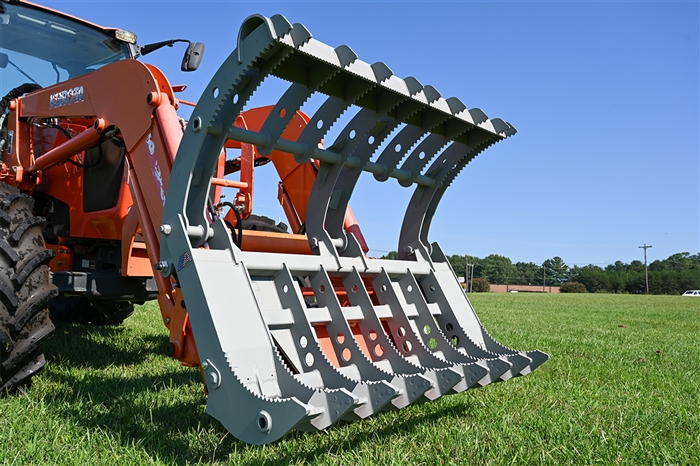

- Upper and lower Wicked
Tines along with most other components are laser cut for precision.
- Beefed up in all the right places, especially the THREE hinge points and cylinder mounts.
- Dual Cylinders mounted at the proper angle and location produces incredible clamping force!
- Added 3rd hinge to the center for extreme lid rigidity when clamping and raking.
- 1/2" thick AR450 Center and Outer tines are doubled at all three hinge points for maximum strength!
- The intermediate lid tines are 3/8" thick AR450.

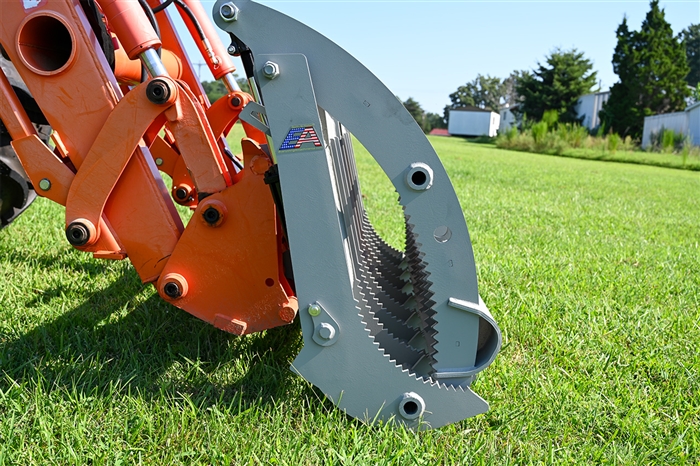

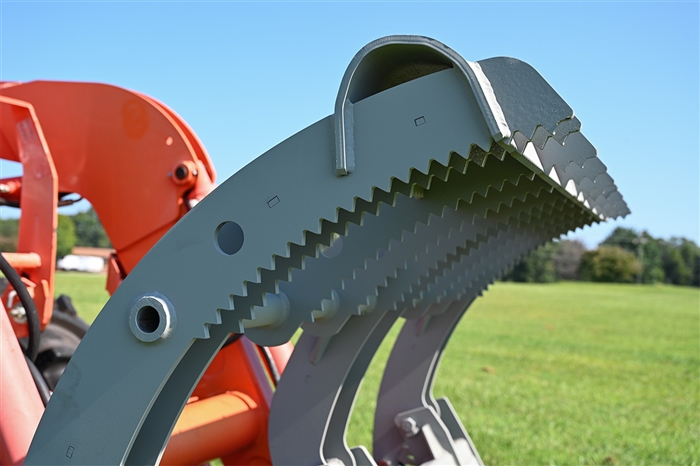

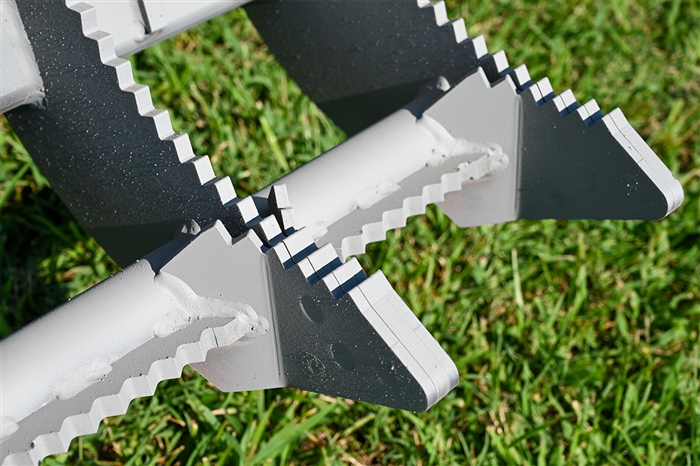

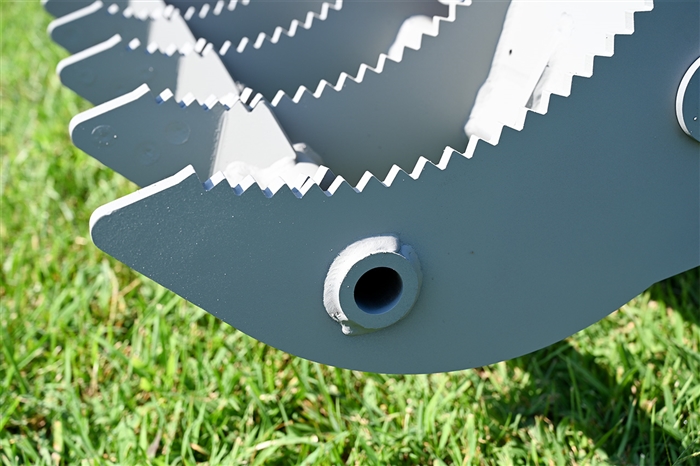

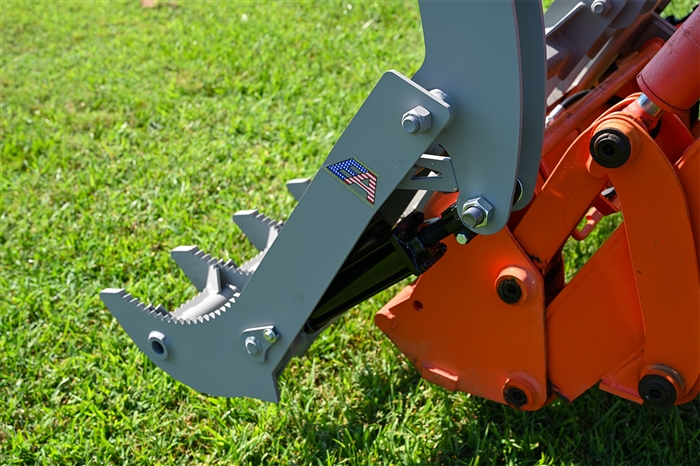

- Upper and lower Wicked tines are serrated for
gripping and ripping.
- 7" approx. lower tine spacing.
- 45" Extra Wide Lid Opening for grabbing large objects and piles!
- 2.5” bore x 8” stroke
cylinders for extreme gripping power!
- High stress points are greasable for longevity.
- Free Shipping within 1,000 Miles!

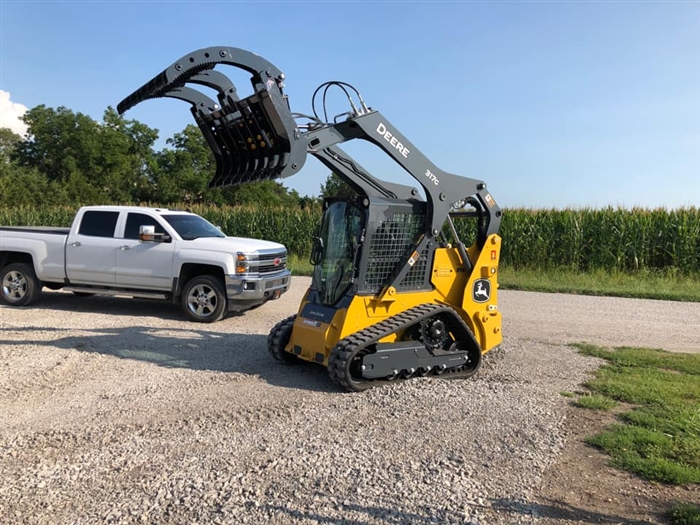

- Universal Skid Steer Quick
Attach Mount is standard.
- Several options for hydraulic couplers. 1/2" ag style couplers are standard. Flat Face available for $75 more.
- Standard hose length is 54", which is intended to reach to the side of the loader torque tube.
- Also available for ALL newer JOHN DEERE loaders including the JD carrier(hooks and pegs) and Euro/Global quick attach. Add $125.
- Let us know if you have a Kioti with a single lever universal quick attach so we can change hose routing.
- Grease prior to use.
*Primo Materials 101*
DOM, or Drawn Over Mandrel, tubing is made from a cold-drawn electrical resistance welded tube that is drawn through a die and over a mandrel to create dimensional accuracy, dependable weld integrity and an excellent surface finish(which we manually scuff so the paint will hang on). DOM has high tensile and yield strength, so It is generally chosen over welded tube where high pressure or large workloads are needed such as the manufacturing of race cars and motorcycle frames.
Product Code: ETA-66-WRRG
|
|
|
|
|
|
 |
|
 |
|
|

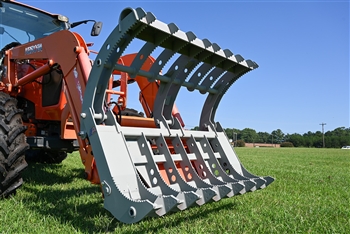

EA 66 Inch Wicked Root Rake Grapple
