Amulet TILT BUCKET for 30 Ton Excavators
Amulet TILT BUCKET for 30 Ton Excavators
Amulet TILT BUCKET for 30 Ton Excavators



Alternative Views:

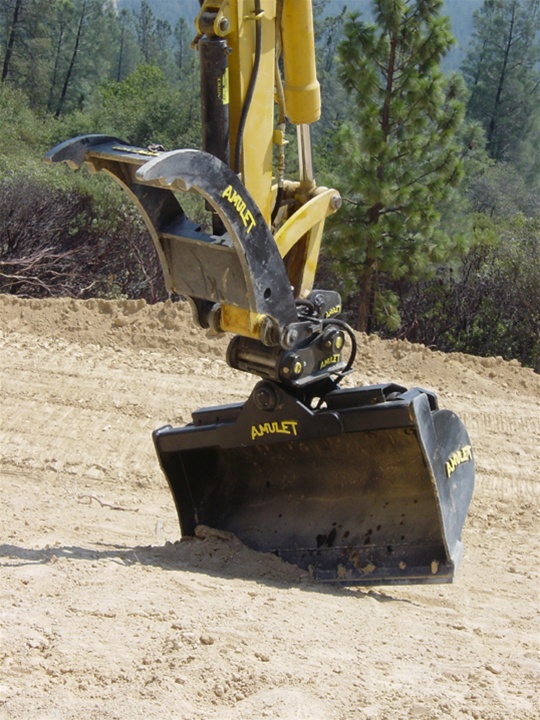

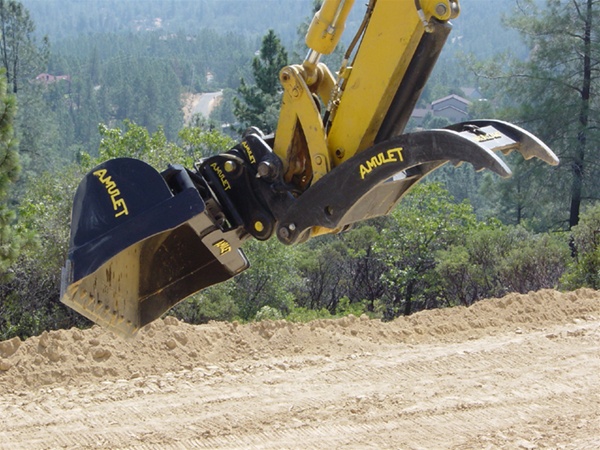

TILT BUCKET for 30 Ton Excavators

Amulet's TILT BUCKET is the Ultimate Grading and Shaping Tool!

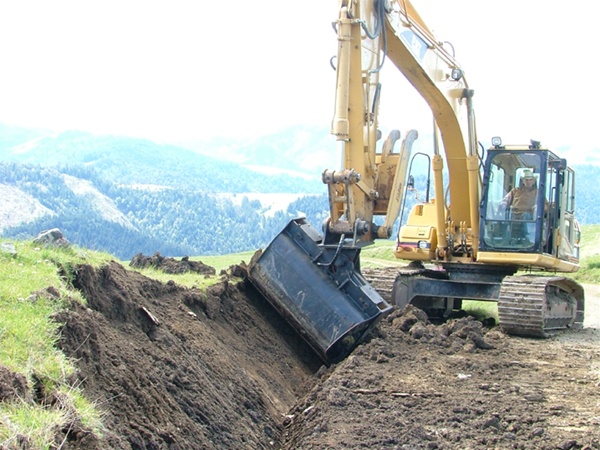

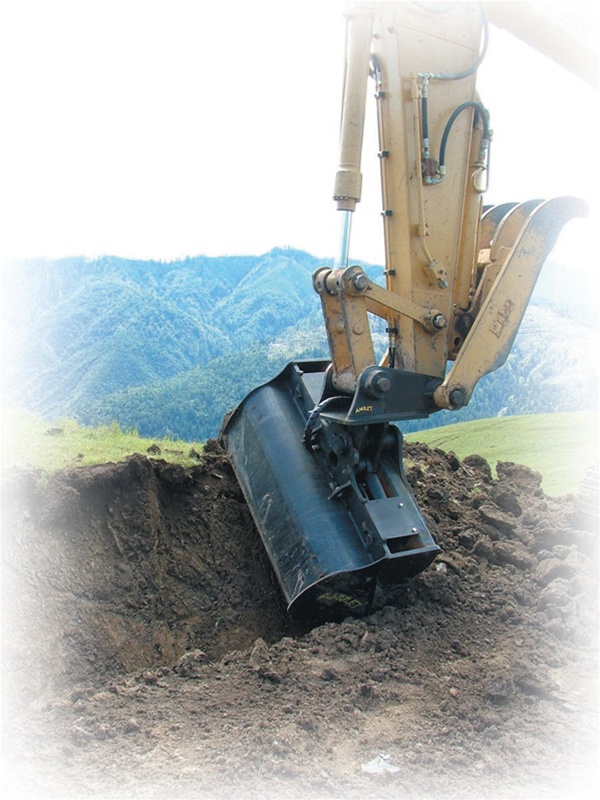

The Amulet Tilt Bucket is fast becoming standard equipment for many excavator operators. Our innovative and superior design incorporates every feature possible, culminating in the ultimate shaping tool. Perfect for V-ditching and sloping, it has optional cutting edges that are replaceable, decreasing wear on the factory edge. With 45 degrees of tilt in both directions, work from either side of your project.


  • Comes complete with cylinders and hoses, ready to mount and use on your machine!

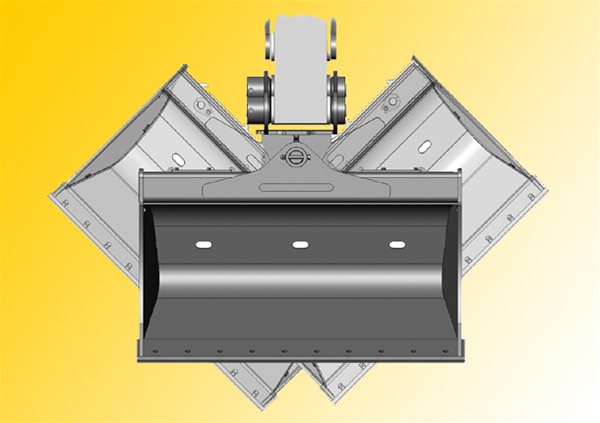

  • Buckets tilt 45 degrees each way giving a full 90 degree range of tilt.
  • Standard side taper allows for bucket clearance through crowd action.
  • Heavy duty double-acting hydraulic cylinders are fully guarded.
  • Induction hardened pivot pins mounted through large bushed surfaces maximize wearability.
  • Cylinder rod ends are bushed for ease of maintenance.
  • Hydraulic hose guides are provided for short hose protection.
  • Twin cylinders come complete with bucket hose kit.
  • Wear strips are fitted as standard features for extended bucket life.
  • Bolt-on cutting edges can be fitted as an option increasing life of the base edge.
  • Optional abrasion resistant side cutters and heavy duty cutting edge increases bucket rigidity, durability and wear.
  • Free shipping within Continental US.

Our Price: $11,795.00

Product Code: AM-TB7-30-TON-TILT-BUCKET

Description

The Tilt Bucket has revolutionized how grading and shaping are done! 45 degree tilt in both directions. Free shipping within Continental US.
Technical Specifications:

30 Ton Machine Class

  • Case 9050, CX330, CX350
  • Caterpillar 328, 329, 330 (D family linkage)
  • Daewoo/Doosan 280LC, 290LC, 300LC, 320LC, 330LC, 360LC
  • Halla HE360LCH
  • Hitachi ZX270, EX300, EX330, ZX350, EX370
  • Hyundai R305, R320, R360, R290
  • JCB JS290, JS330
  • John Deere 892, 300, 330, 350D, 370
  • Kobelco SK290, SK295, SK300, SK330, SK350
  • Koehring 6633
  • Komatsu PC300, PC308, PC360
  • Link-Belt 330LX
  • New Holland EC350
  • Samsung SE280, SE350
  • Terex TXC300, TXC340
  • Volvo EC290
  • Yutani MD300LC, MD320BLC

FOR UNLISTED MACHINES, CALL 866-581-5818

** WEIGHTS SHOWN ARE APPROXIMATE. ACTUAL WEIGHTS MAY VARY BY SPECIFIC DESIGN & FEATURES
