Front End Loader for Kubota MSeries Compact Tractors
Front End Loader for Kubota MSeries Compact Tractors

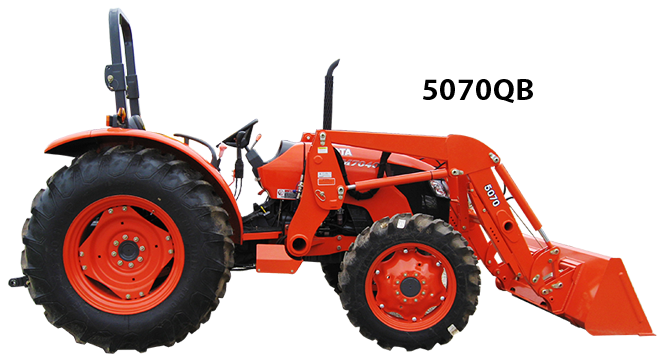

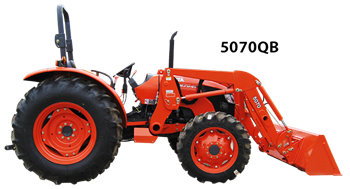

Front End Loader For Kubota M Series Tractors

The 5070QB front end loader is designed to fit Kubota M6060, M7060, M5040, M5140, M6040, and M7040 tractors. The loader comes with most hydraulic lines in place, so installation is a breeze and only takes common tools. The maximum lift height is 113" and can lift capacity up to 2,450 lbs. A 72" bucket comes with the 5070QB loader and it attaches to the front of the loader with a universal quick attach mount like most new tractors. The loader itself can be easily removed with stands and pins designed to make the job easy.


  • Comes complete with hoses, mounting brackets, joystick valve, and grille guard.
  • 72" Universal Skid Steer quick attach(USSQA) bucket is included.
  • Strong, rigid subframe mount is very similar to OEM loader.
  • Mounts install to existing frame holes(around 10 bolts per side), so no drilling or tapping is necessary.
  • All pivot pins are center drilled and greasable.
  • Hard lines on the loader arms for a clean look!
  • Comes with quick disconnect hoses to connect to the factory valve ports.
  • Easy loader removal with dual stands, pins and QD hydraulic couplers.
  • Easy plug and play installation.
  • Manufactured by Ansung in S. Korea.
  • View Parts Manual
  • Free shipping within 1,000 miles.


TRACTOR MODEL M6060/M7060/M5040
M5140/M6040/M7040
A. Maximum Lift Height 125.6"
B. Clearance w/Attachment Level 101.7"
C. Clearance w/Attachment Dumped 79.8"
D. Reach @ Maximum Height 18.7"
E. Maximum Dump Angle 74
F. Reach w/Attachment on Ground 74.4"
G. Attachment Rollback Angle 40
H. Digging Depth Below Grade 5.6"
J. Overall Height in Carry Position 58.2"
L. Depth of Attachment (to pivot pin) 26.5"
M. Height of Attachment 24"
N. Depth of Attachment (to pivot point) 32.2"
Lift Capacity to Full Height @ Pivot Pin 2,640 lbs
Breakout Force @ Ground Level, Pivot Pin 4,310 lbs
Relief Valve Setting (Loader Control Valve) 2,873 psi. hyd
Lift Cylinder 2.36" x 20.2"
Bucket Cylinder 2.36" x 20.2"
Bucket Size 72"



Our Price: $7,330.00


Product Code: ANS-5070B-LDR

Description

Front end loader for Kubota M6060, M7060, M5040, M5140, M6040, and M7040 tractors. Includes 72" Universal Quick Attach Bucket Free shipping within 1,000 miles!
