Front End Loader for Kubota L Series Compact Tractors
Front End Loader for Kubota L Series Compact Tractors



Alternative Views:

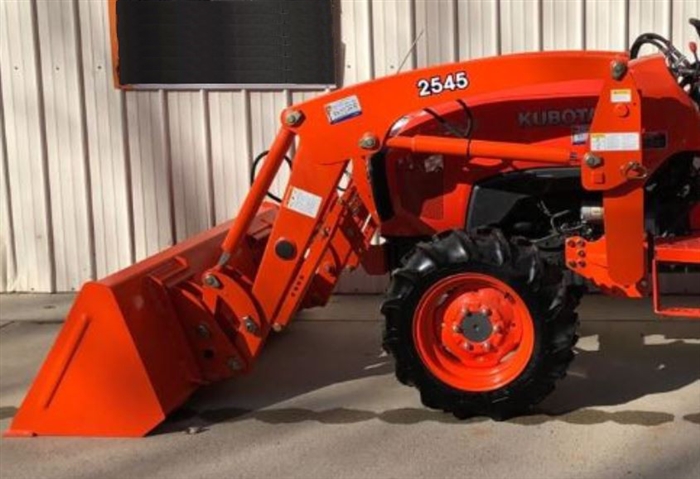

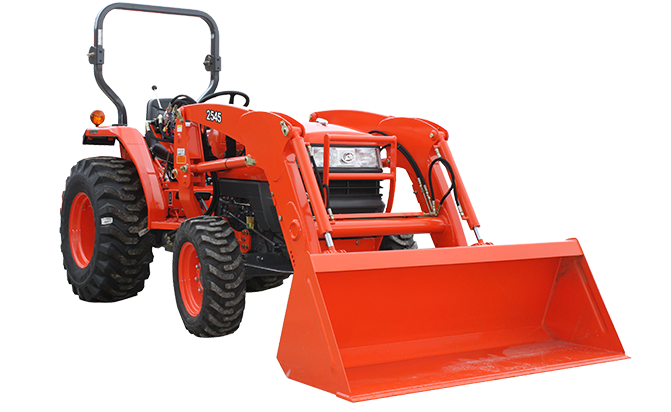

Front End Loader For Kubota L Series Tractors

The 2545C front end loader is designed to fit Kubota L2501, L3301, L3901, L2800, L3200, L3400, L3800 tractors. The loader comes with most hydraulic lines in place, so installation is a breeze and only takes common tools. The maximum lift height is 101.7" and can lift capacity up to 1205 lbs. A 66" bucket comes with the 2545C loader and it attaches to the front of the loader with a universal quick attach mount like most new tractors. The loader itself can be easily removed with stands and pins designed to make the job easy.


  • Comes complete with hoses, mounting brackets, joystick valve, and grille guard.
  • 66" Universal Skid Steer quick attach(USSQA) bucket is included.
  • Strong, rigid subframe mount is very similar to OEM loader.
  • Mounts install to existing frame holes(around 10 bolts per side), so no drilling or tapping is necessary.
  • All pivot pins are center drilled and greasable.
  • Hard lines on the loader arms for a clean look!
  • Comes with quick disconnect hoses to connect to the factory valve ports.
  • Easy loader removal with dual stands, pins and QD hydraulic couplers.
  • Easy plug and play installation.
  • 1,010 pound shipping weight includes grill guard and pallet.
  • Manufactured by Ansung in S. Korea.
  • View Parts Manual
  • Free shipping within 1,000 miles.


TRACTOR MODEL L2501/L3301/L3901
L2800/L3200/L3400/L3800
A. Maximum Lift Height 101.7"
B. Clearance w/Attachment Level 95.5"
C. Clearance w/Attachment Dumped 79.7"
D. Reach @ Maximum Height 19.7"
E. Maximum Dump Angle 42°
F. Reach w/Attachment on Ground 59.8°
G. Attachment Rollback Angle 25°
H. Digging Depth Below Grade 4.4"
J. Overall Height in Carry Position 45.7"
L. Depth of Attachment (to pivot pin) 23.2"
M. Height of Attachment 22.2"
N. Depth of Attachment (to pivot point) 26.3"
Lift Capacity to Full Height @ Pivot Pin 1205 lbs
Breakout Force @ Ground Level, Pivot Pin 2460 lbs
Relief Valve Setting (Loader Control Valve) 2490 psi. hyd
Lift Cylinder 1.97" x 17.9"
Bucket Cylinder 1.97" x 20.7"
Bucket Size 66"



Our Price: $4,932.00


Product Code: ANS-2545C-LDR

Description

Front end loader for Kubota L2501, L3301, L3901, L2800, L3200, L3400, L3800 tractors. Includes 66" Universal Quick Attach Bucket Free shipping within 1,000 miles!
- Click Image For More Info!

Average Customer Review: Average Customer Review: 4.5 of 5 4.5 of 5 Total Reviews: 4 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Absolutely love it! October 11, 2023
Reviewer: Gary Hodges from New Orleans, LA United States
Quality Product and straight forward install. The manifold was actually better than the one supplied by Kubota for my rear remote install.


Was this review helpful to you?

  0 of 0 people found the following review helpful:

4 of 5 Front End Loader for Kubota L Series August 23, 2023
Reviewer: Anonymous Person from Presque Isle, MI United States
The front end loader is top notch and works perfectly.
However, the hydraulic hoses are not marked on the ends which makes it very difficult to hook up properly.
Perhaps that is something the manufacturers' can easily fix.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 Perfect Fit!!!! April 21, 2023
Reviewer: Charles from Jarratt , VA United States
This loader fit my tractor(L3400 Kubota) perfectly.
Very robust and smooth operating. This is a solid loader. My only negative is the instructions don't show where to connect the hydraulic lines on the control valve. But even that is easy enough to figure out.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

4 of 5 Ansung Loader Review January 22, 2020
Reviewer: Jon Schneider from Mayer, MN United States
The quality of the loader is great, it’s working as expected. Fit and finish top notch. My only complaint was the instructions for mounting the hydraulic lines, the diagrams weren’t very clear, and trying to figure out the pressure plate for the pump wasn’t clear. I think some good quality pictures would help after ones been installed. We lost a lot of hydraulic fluid on the floor switching hoses back and forth trying to get full range of motion. Another suggestion is using Teflon tape for all fittings requiring it. Plumbers putting doesn’t work and will leak. Found that out the hard way also. Another thing I’ll need to keep an eye on is the free float detent. Sometimes the lever will kick out of that function.

Was this review helpful to you?
