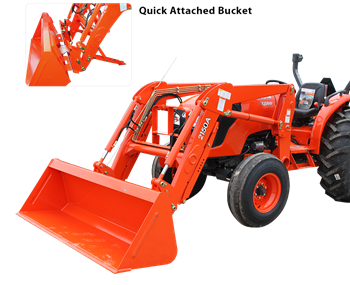

Front End Loader for Kubota MX Series Compact Tractors
Front End Loader for Kubota MX Series Compact Tractors




Front End Loader For Kubota MX Series Tractors

The 2150B-QBfront end loader is designed to fit Kubota MX5400, MX6000, MX5800, MX5200, MX5100, MX4700 tractors. The loader comes with most hydraulic lines in place, so installation is a breeze and only takes common tools. The maximum lift height is 113" and can lift capacity up to 2,450 lbs. A 72" bucket comes with the 2150B-QB loader and it attaches to the front of the loader with a universal quick attach mount like most new tractors. The loader itself can be easily removed with stands and pins designed to make the job easy.


  • Comes complete with hoses, mounting brackets, joystick valve, and grille guard.
  • 72" Universal Skid Steer quick attach(USSQA) bucket is included.
  • Strong, rigid subframe mount is very similar to OEM loader.
  • Mounts install to existing frame holes(around 10 bolts per side), so no drilling or tapping is necessary.
  • All pivot pins are center drilled and greasable.
  • Hard lines on the loader arms for a clean look!
  • Comes with quick disconnect hoses to connect to the factory valve ports.
  • Easy loader removal with dual stands, pins and QD hydraulic couplers.
  • Easy plug and play installation.
  • Manufactured by Ansung in S. Korea.
  • View Parts Manual
  • Free shipping within 1,000 miles.


TRACTOR MODEL MX5400/MX6000/MX5800
MX4200/MX4800/MX4700
A. Maximum Lift Height 113"
B. Clearance w/Attachment Level 105.5"
C. Clearance w/Attachment Dumped 80.9"
D. Reach @ Maximum Height 16.7"
E. Maximum Dump Angle 60
F. Reach w/Attachment on Ground 79.1"
G. Attachment Rollback Angle 42
H. Digging Depth Below Grade 5.8"
J. Overall Height in Carry Position 59.2"
L. Depth of Attachment (to pivot pin) 24.0"
M. Height of Attachment 23.7"
N. Depth of Attachment (to pivot point) 30.5"
Lift Capacity to Full Height @ Pivot Pin 2,450 lbs
Breakout Force @ Ground Level, Pivot Pin 4,215 lbs
Relief Valve Setting (Loader Control Valve) 2,560 psi. hyd
Lift Cylinder 2.36" x 20.3"
Bucket Cylinder 2.36" x 17.9"
Bucket Size 72"



Our Price: $6,220.00


Product Code: ANS-2150B-LDR

Description

Front end loader for Kubota MX5400, MX6000, MX5800, MX5200, MX4800, MX5100, and MX4700 tractors. Includes 72" Universal Quick Attach Bucket Free shipping within 1,000 miles!
- Click Image For More Info!
