EA XTreme Duty Compact Tractor Box Blade

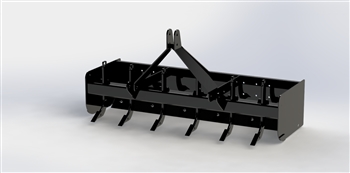

XTreme Compact Tractor Box Blade, grader box, box scraper



Alternative Views:


XTreme Duty Compact Tractor Box Blade

The Everything Attachments XTreme Duty Compact Tractor Box Blade is designed to fit and perform perfectly on standard Category 1 subcompact and compact tractors up to around 35 horsepower. These box blades provide you with all of the best features such as a clevis style hitch, solid welded A-frame, heavy duty adjustable 3 hole ripper shanks, dual curved reversible and replaceable US made cutting edges. Extra plates of steel are welded on the leading edge for maximum wear prevention on ALL EA box blades. We go the extra mile to provide you with the best box blade for your compact tractor.


  • Proudly Made in the USA!
  • Category I quick hitch compatible.
  • Premium A572 Grade 50 Laser Cut Steel Construction.
  • Scarifiers have replaceable tips.
  • High quality ripper shanks.
  • US made replaceable and reversible curved cutting edges.
  • Horseshoe shaped plates welded under the tube behind the bottom of the ripper shanks to strengthen the tube and prevent piercing.
  • 1/4" thick side plates with extra plates on the leading edges for wear resistance.
  • 3/16" thick moldboard.
  • Everything Attachments Product Warranty
  • Free shipping within 1,000 miles!

Width No. of Shanks Weight
48" 4 355 lbs.
54" 4 370 lbs.
60" 4 385 lbs.
66" 5 430 lbs.
72" 6 450 lbs.

American Made Attachment
The Everything Attachments XTreme Duty Compact Tractor Box Blade features adjustable Italian made scarifier shanks, and uses American made cutting edges. Free shipping within 1,000 miles!

Everything Attachments Regular Duty Box Blade
How to Use a Box Blade
These guys picked one up! Add $50 for Kubota Orange
Item# Item Name Our Price Qty Add
ETA-48-XDCMP-BB Everything Attachments 48 Inch XTreme Duty Compact Box Blade
$754.00
ETA-54-XDCMP-BB Everything Attachments 54" XTreme Duty Compact Box Blade
$777.00
ETA-60-XDCMP-BB Everything Attachments 60" XTreme Duty Compact Box Blade
$799.00
ETA-66-XDCMP-BB Everything Attachments 66" XTreme Duty Compact Tractor Box Blade
$856.00
ETA-72-XDCMP-BB Everything Attachments 72" XTreme Duty Compact Tractor Box Blade
$914.00
Check the items you wish to purchase, then click


More:

EA Fan Videos

Forest to Farm setup
Forest to Farm level field
Digging out for a water main
Prepping for footings
Diverting Rainwater




Video Transcription:
Video 1
Hi, I'm Ted from Everything Attachments, and we're here to show you how to use the United H.H.D. Box Blade. As you can tell, this one's well used. It's mine. I keep it at home all the time. It's a tool I'd never be without because it's just good for almost everything it seems like. You've got your ripper shanks here that are adjustable. They're in their highest position now. They do have replaceable points. One of the most important things about a box blade, if you just want to level dirt or gravel, it isn't really going to matter. But if you actually want to cut a ditch or move some dirt, this curved cutting edge is very important.

A lot of the cheap blades just have a flat piece of steel, and there's about 10 times the price difference in a flat piece of steel and in this hard and curved edge here. So that curved edge is just essential to be able to actually cut the dirt and fill your box blade up with the dirt that you want to move to another area. So loose stuff you can move with a flat edge, but that's about all they're good for. I recommend always getting one with a curved edge, good replaceable tips, with a forward shank. So we're going to knock down this pile of dirt, spread it out real quick, and then we're going to angle our drawbar arms really steep, show you how you can cut a ditch for drainage.

Adjusting the top link is going to have a big effect on whether it's digging in or floating over the top when you're backing up and pulling forward. So right there was a low spot already, just got filled in. Always try to get a box blade or as many implements as you can with a clevis hitch instead of a pin hitch. It's going to be twice as strong and be easier to hook up on your drawbar arms. So with that curved edge, it cuts right into the dirt, collects a big pile of it, and you're able to spread it like you want to.

So unlike a cheap box blade that doesn't have replaceable ripper shanks or replaceable edges, when they're worn out, you basically throw away your whole tool, where this one can be continually rebuilt for years and years of use. So do some really deep ripper action. We're going to shorten this top link up. Wet down, pin up, or pick up. I'll let it back down. So we're tilting up the back of this blade, and we're angling these teeth down where it's really going to get its most ripping effect.

If you're doing it -- if you need to box blade on top of grass without the rippers, you're not going to do anything. Here all the way one direction as far as we can -- lift up just a little bit -- so that we can cut a ditch or a drainage way or just an angle on the side of the road. All right. Hey, Kevin. Get in this direction here and go that way a little bit. So now with the rippers fully down and with a lot of angle on it, you can see how he's able to cut a ditch. Then by the time he turns around and comes back with another angle on it, or does this twice and puts another angle, you could really have a big ditch.

So if you've got drainage problems and you need it to go, this is the way to do it. So you can have a one-sided ditch or a big V ditch if you decide to come back down at the other direction. All right. So a little bit of cleanup work, and you have a perfect ditch and get rid of that water that's been standing. So now we're going to level it back out and cover up this ditch, just so I won't have to mow over it later. Now we put our ripper teeth back up. We're smoothing our ditch back out that we cut. We're just going to clean this area up here where we can plant some grass on it.

Pushing backwards with that back edge is probably one of the best and most important things to be able to do well with a box blade. Having that curved cutting edge on the back is just a must to really be able to do anything besides scrape over it. So how to use a box blade, even though it's a simple device, it's probably one of the most asked questions I get on a daily basis. So you can see in less than 15 minutes, we've leveled that big pile of dirt. We've cut a ditch if you needed a drain line.

We've done some ripping if you were going to move a lot of hard dirt where you could rip it up and move it. We've totally smoothed it back out. So that is the most universal tool that I know of, is a box blade. We're fixing to hook to some pallet forts next. The box blade is always your best tool to have on the backs to give you a little counter weight.
