Digga AB4 - General Purpose Bolt On Auger
Digga AB4 - General Purpose Bolt On Auger



Alternative Views:

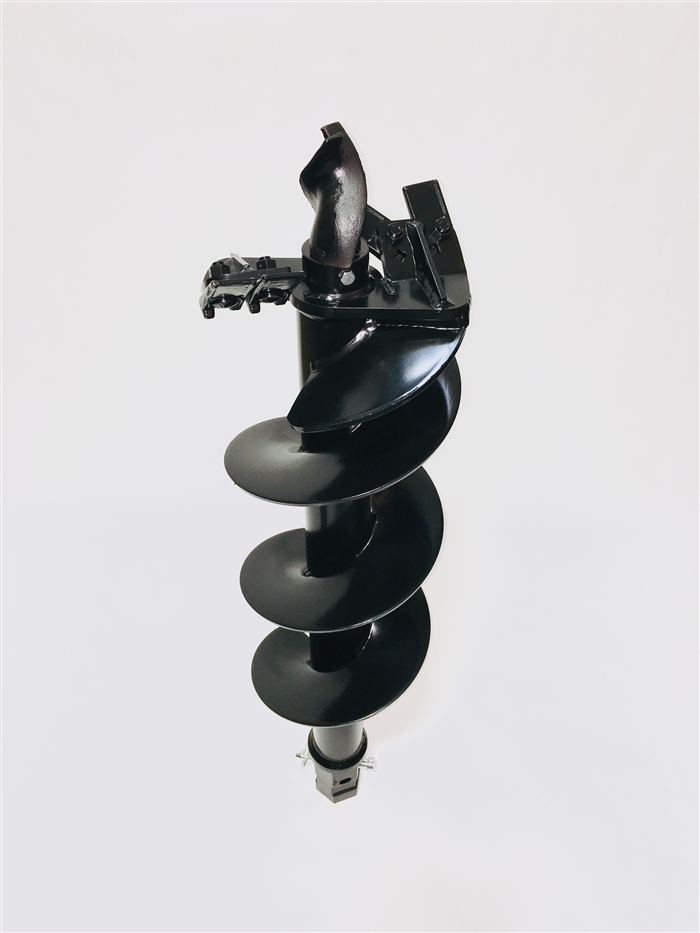

AB4 - General Purpose Bolt on Augers

• VARIETY OF HUB OPTIONS

• HEAVY DUTY TUBE WITH HIGHEST GRADE STEEL

• SHALLOW PITCH FLIGHTS FOR OPTIMUM REMOVAL OF SPOIL

• TRUE CUT DESIGN ENSURES A 12” AUGER DRILLS A 12” HOLE

• FULL RANGE OF DRIVE ADAPTORS & EXTENSIONS AVAILABLE TO MAXIMIZE DRILLING DEPTH

• EARTH, HARD FACED AND TUNGSTEN CARBIDE TEETH AVAILABLE


Digga's new generation premium auger range is designed with the ultimate in performance, quality and cost effectiveness in mind. With the AB4 range, you benefit from its hex drive pilot over the square drive - giving machines with higher down pressure and higher torque greater strength. The AB4 suits Skid Steers and Excavators up to 4.5 ton for drilling in earth.

DIGGA’S True Cut augers boast a heavy duty design, with high efficiency cutting heads to maximize your drilling performance. Fitted with a range of quality wear parts providing superior wear and performance.

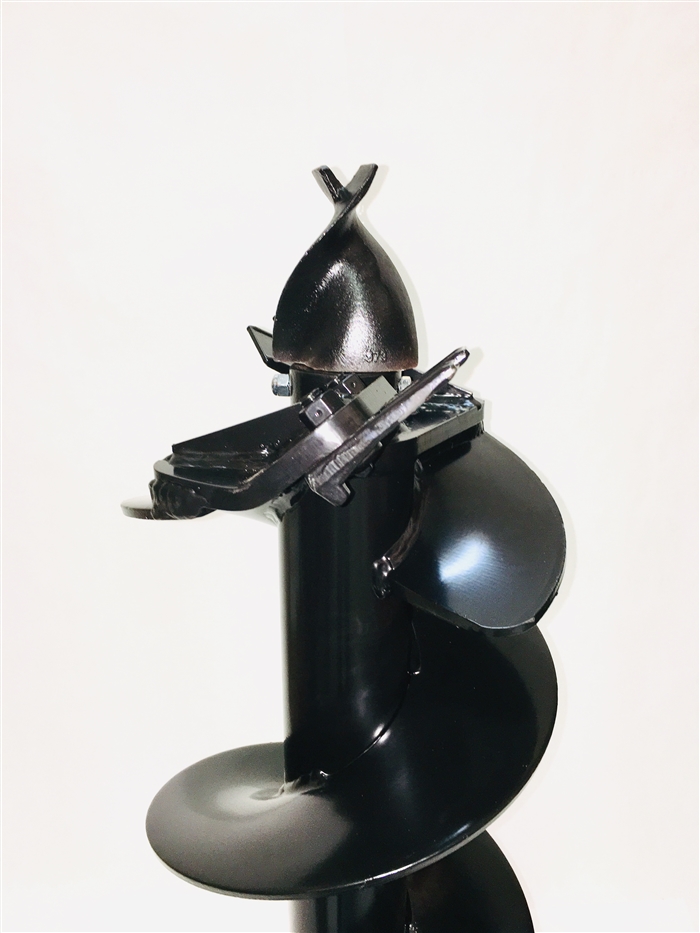

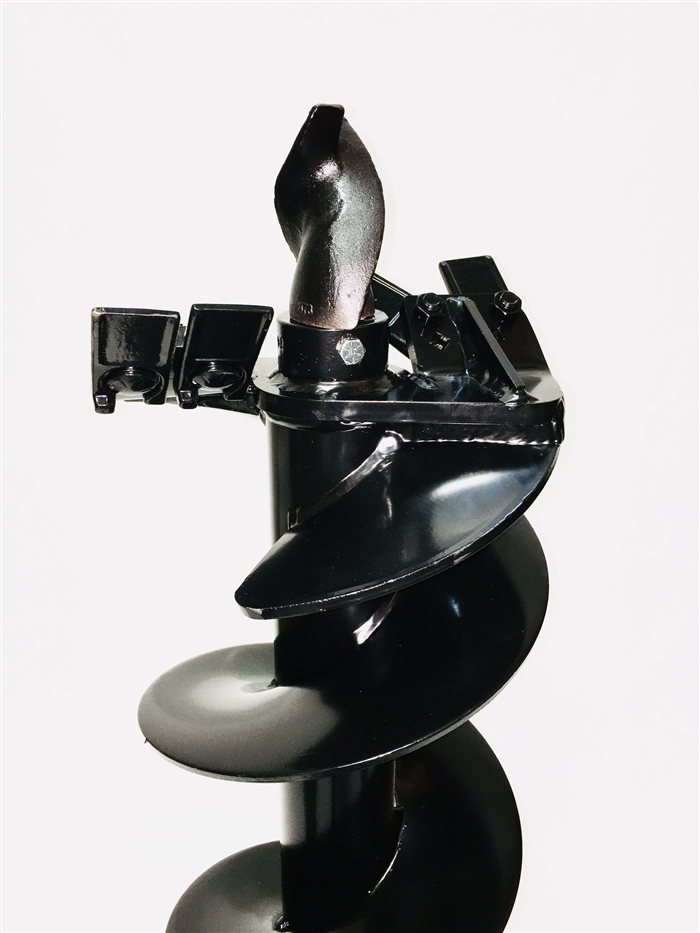

Teeth on Digga augers are strategically positioned to ensure that the entire digging surface of the augers drilling path will be removed.

AB4 Auger Specifications
Specifications
Drilling conditions General

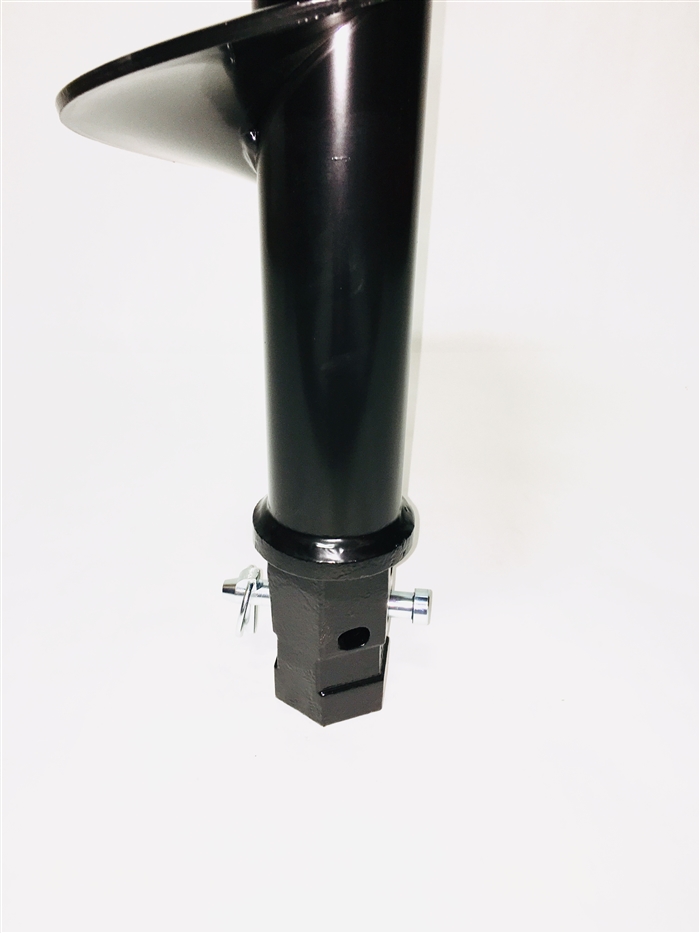

Hub 2" Hex
Optional Hub2 9/16” Round
Overall length 48"
Pipe 2.375" - 4.5"
Flights (lead) 5/16"
Flights (carry) 5/16"
TeethDP-40-/50, DP-40/50HFF, DP-40/50C
Pilot PM-SQ-1
Max size 36"
Ideal drives 1MDS-4DSS
Optimum drilling speeds
Earth 55-65
Clay 45-55
Shale
(fracturable rock)
20-45
Heavy rock N / A
Auger features Double start, single carry flight configuration. Shallow Flight pitch for greater soil retention. Heavy duty auger body, for greater wear & performance


Item# Item Name Our Price Qty Add
DGA-AUG-AB4-09-3-E Digga AB4 General Purpose Bolt On Auger for Light Conditions 9" Diameter 4ft OAL
$407.00
DGA-AUG-AB4-12-3-E Digga AB4 General Purpose Bolt On Auger for Light Conditions 12" Diameter 4ft OAL
$486.00
DGA-AUG-AB4-18-3-E Digga AB4 General Purpose Bolt On Auger for Light Conditions 18" Diameter 4ft OAL
$681.00
DGA-AUG-AB4-24-3-E Digga AB4 General Purpose Bolt On Auger for Light Conditions 24" Diameter 4ft OAL
$826.00
DGA-AUG-AB4-9-3-TC Digga AB4 General Purpose Bolt On Auger for Hard Ground 9" Diameter 4ft OAL
$515.00
DGA-AUG-AB4-12-3-TC Digga AB4 General Purpose Bolt On Auger for Hard Ground 12" Diameter 4ft OAL
$551.00
DGA-AUG-AB4-18-3-TC Digga AB4 General Purpose Bolt On Auger for Hard Ground 18" Diameter 4ft OAL
$751.00
DGA-AUG-AB4-24-3-TC Digga AB4 General Purpose Bolt On Auger for Hard Ground 24" Diameter 4ft OAL
$919.00
