Digga 1DSS Universal Skid Steer 6-16 G.P.M. - SS - Package

Digga 1DSS Universal Skid Steer 6-16 G.P.M. - SS - Package



Alternative Views:

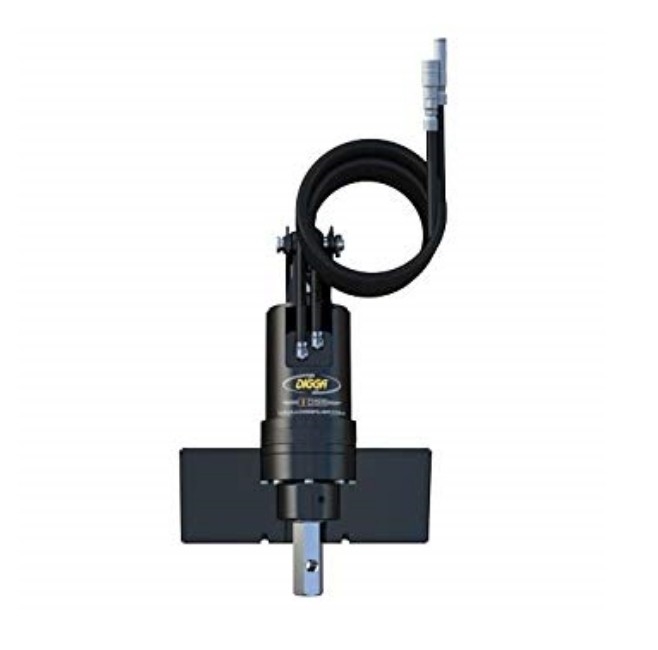

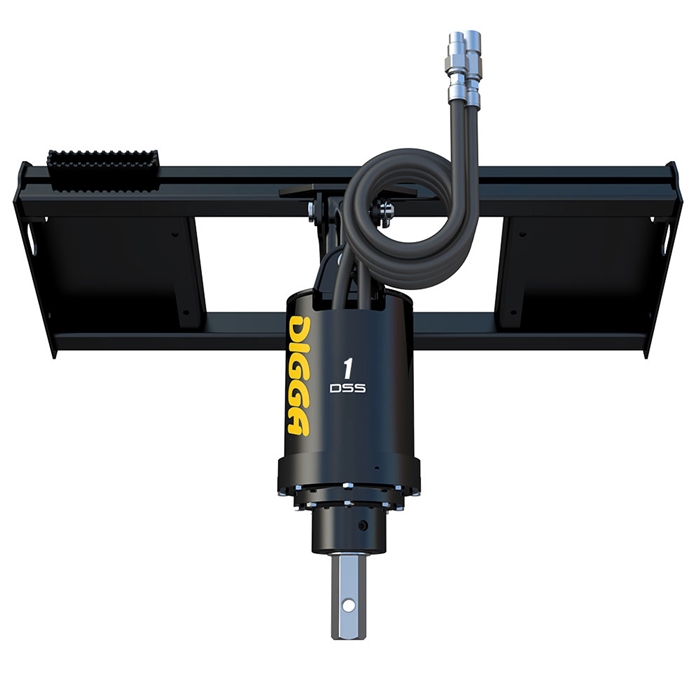

Digga 1DSS Universal Skid Steer Auger Drive Package - Single Speed - 6-16 G.P.M. Standard Flow

Single Speed - Suitable for Heavy Duty Drilling

Digga's drilling drives for agricultural machines are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control. Fitted with Digga / Eaton bell motors and input housing, the innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimizing your returns.



PACKAGE PRICE INCLUDES 84" HOSES, FF QUICK DISCONNECTS, UNIVERSAL SKID STEER MOUNT, & LINKAGE. MOUNTING PLATE IS SPECIFIC TO MAKE AND MODEL OF SKID STEER. PLEASE SPECIFY WHAT MACHINE THE MOUNT IS ATTACHING TO. Auger sold separately.


SUITABLE AUGER - A4 & RC4, SUITABLE EXTENSION - XO20

A4 Auger - General Purpose Earth Auger for Light Conditions


RC4 Auger- Rock/Earth Combo Auger for Fracturable Rock/Earth/Clay/Shale

Features

  • Compact Digga manufactured gearbox
  • Fitted with a Digga designed Eaton motor
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gear box and 3 year motor warranty
  • Over 30 years design and manufacturing experience

Auger Drive Specifications

Details 1DSS
Torque
(ft-lbs @ 3000 Psi)
1467
Max Torque
(ft-lbs @ 3500 Psi)
2630
Recommended Flow (gpm) 6-16
Motor Type Eaton
Max pressure
(do not exceed)
3500 psi @ 16 gpm
Max flow
(do not exceed)
30 gpm @ 1800 psi
Max horse power 33
Pressure relief valve N/A
standard output shaft 2" Hex
Recommended auger A4 / rC4
Max drilling diameter
(clay / shale)*
12"
Max drilling diameter
(earth)*
24"
Weight (lbs) 101
Overall length (in) 24.5"
Diameter (in) 7.4"
(*) Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
1DSS
OUTPUT SPEED OUTPUT TORQUE

GPM

RPM

PSI

FT-LBS

6

38

1,500

734

8

50

1,700

832

10

63

1,900

929

12

75

2,100

1027

14

88

2,300

1125

16

100

2,500

1223

Our Price: $2,850.00


Product Code: DGA-1DSS-3-MF

Description

Digga's high torque designed Eaton motor with integrated pressure relief valve eliminates the need for bulky valve blocks and reduces many potential leak points. Two-piece shaft design ensures maximum side load ratings without increasing load on bearings.
